2021/03/01 Open Source Group:
to join github group and discuss
　

2021/01/18 Firmware V1.3 Release:

to download

1. Add Bluetooth serial port
2. Add Full Reset Button in system menu
3. Reduce CW side tone latency (with G90 MainUnit FW V1.77)


2020/11/26 Firmware V1.1 Release:

to download

1. Solved the CW sidetone delay problem
2. Solved the problem of unstable system and occasional crash
3. Added RTTY modem
4. Added CW decoder
5. Added SWR scanner
6. Added FFT/Waterfall level adjustment
7. Added FFT line/fill color mixer

The Xiegu GSOC is a universal controller product used for external control of Xiegu G90 radio. The GSOC is designed with expandability in mind. With firmware upgrades, its functions can be expanded to many additional capabilities.

GSOC consists of a baseband processing unit and an SDR receiving unit which is capable of receiving and processing IF signals and IQ signals and displaying content such as frequency spectrum, waterfall plot and demodulation information. The GSOC uses 24bit ADC sampling and processing.
Dimensions are W 8 ¾ H 4 ¾ D 1 ¾

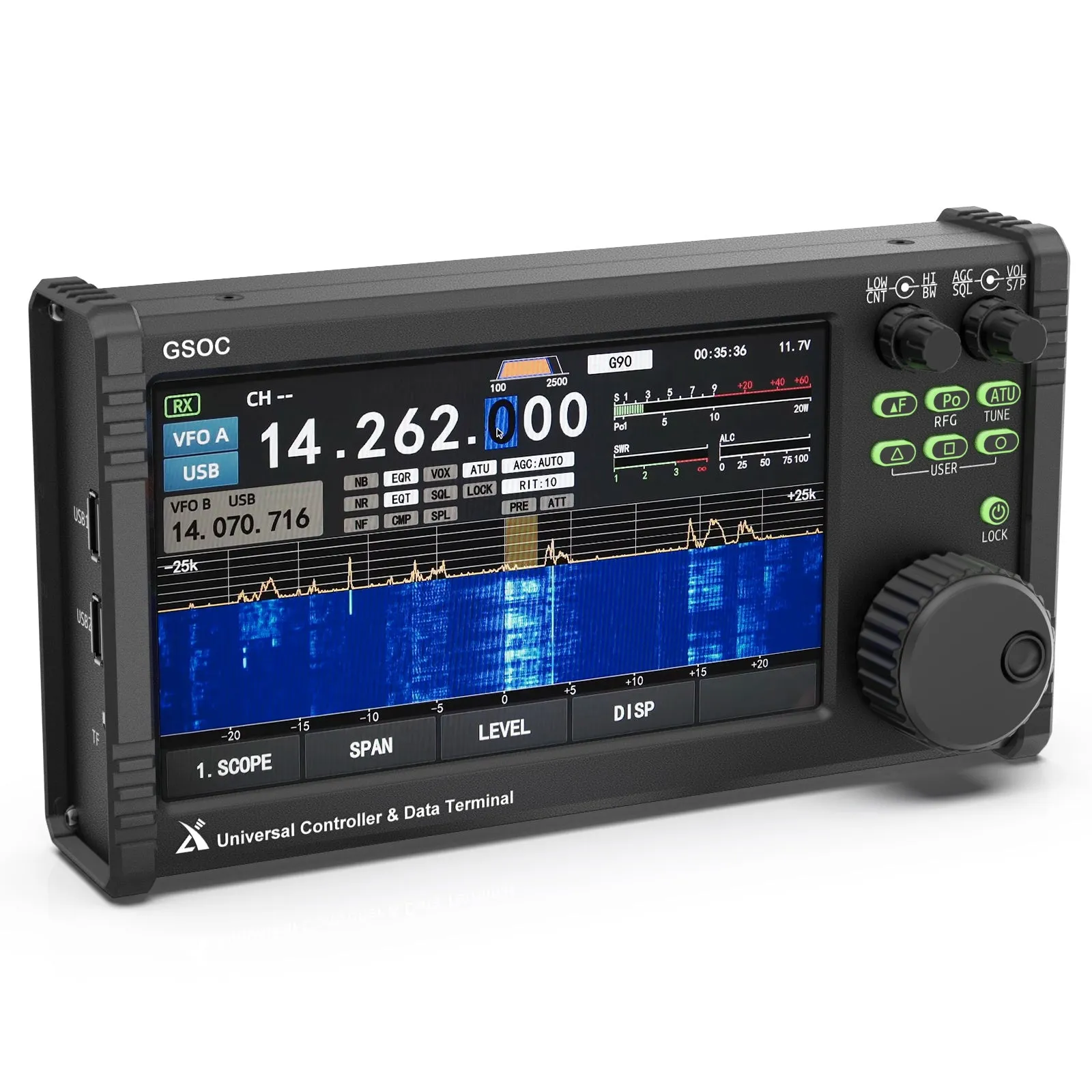

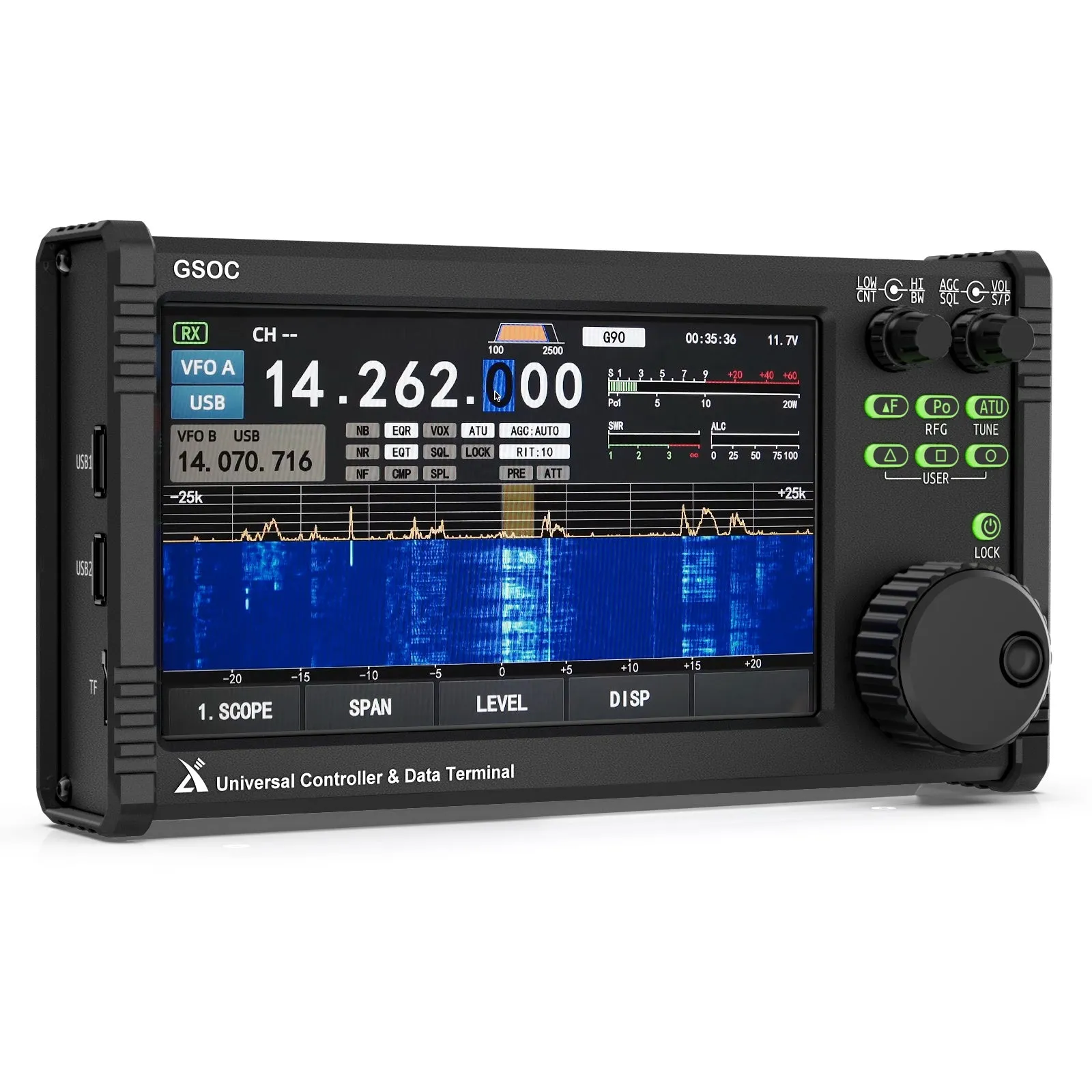

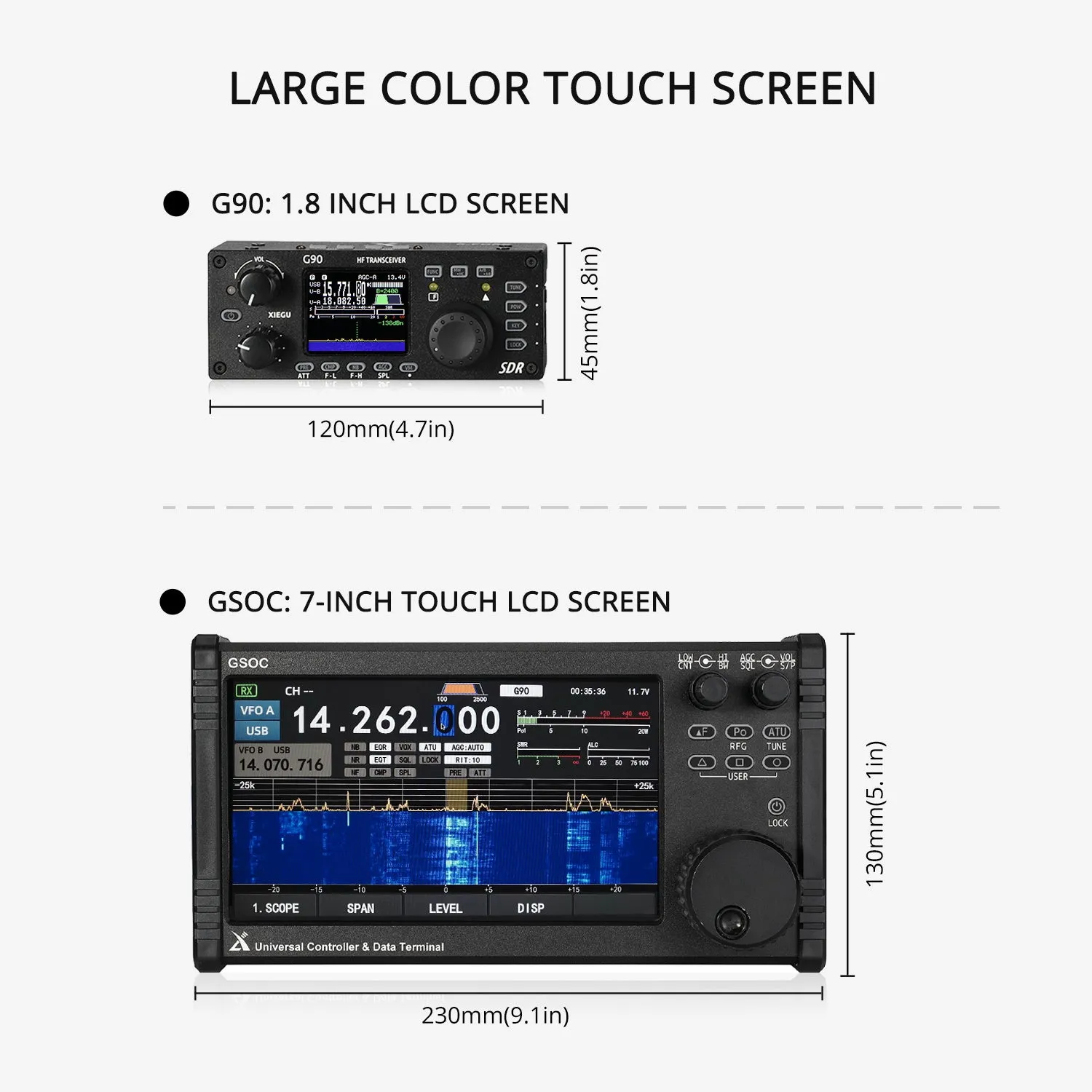

The GSOC has a beautiful 7-inch Color Touch LCD screen. The GSOC has been designed with extra processing power and memory so it can expand into controlling future Xiegu radios and gain new desirable features as well.

Features

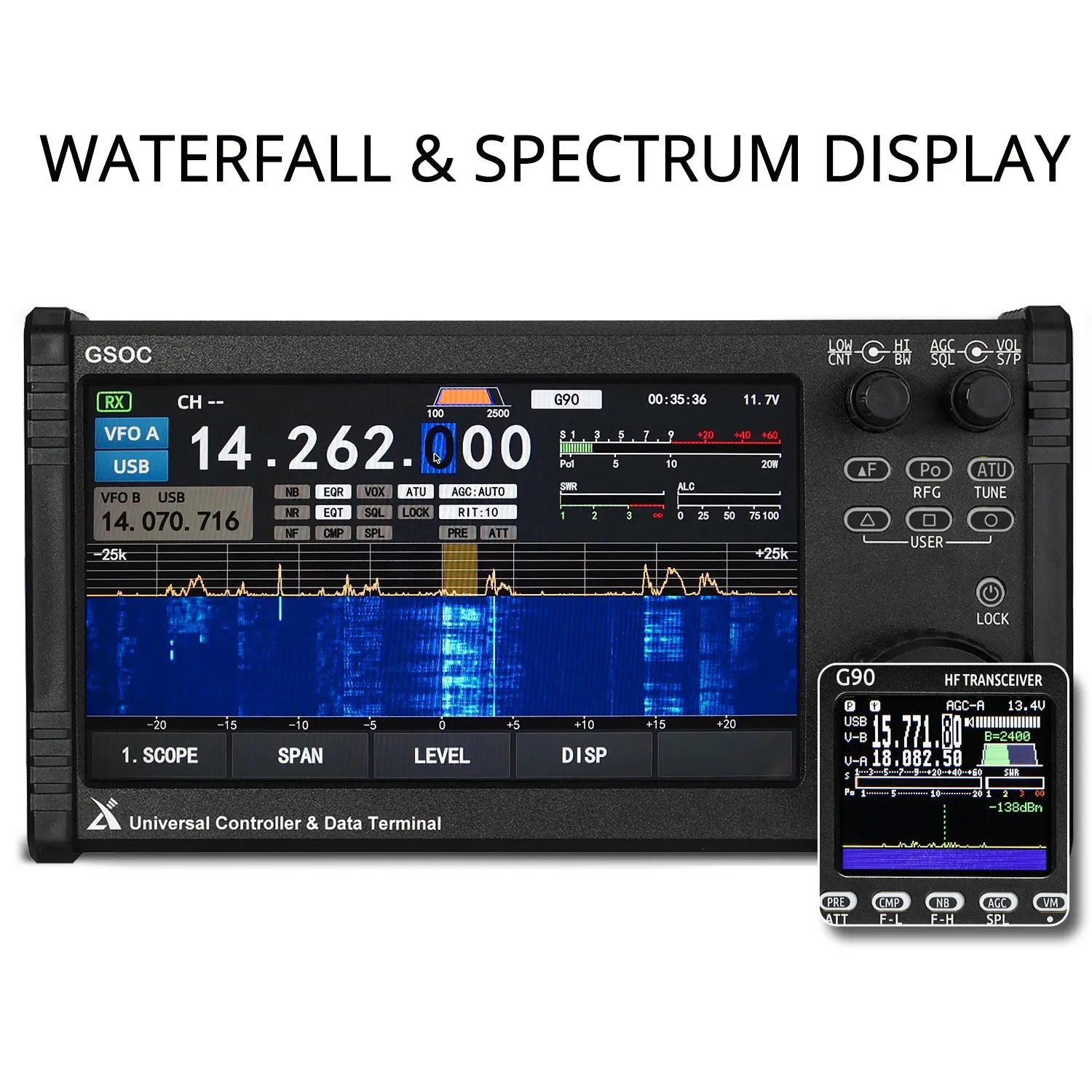

• 200k bandwidth spectrum display and waterfall display

• 1024*600 7-inch color touch LCD screen

• Digital mode decoding capabilities

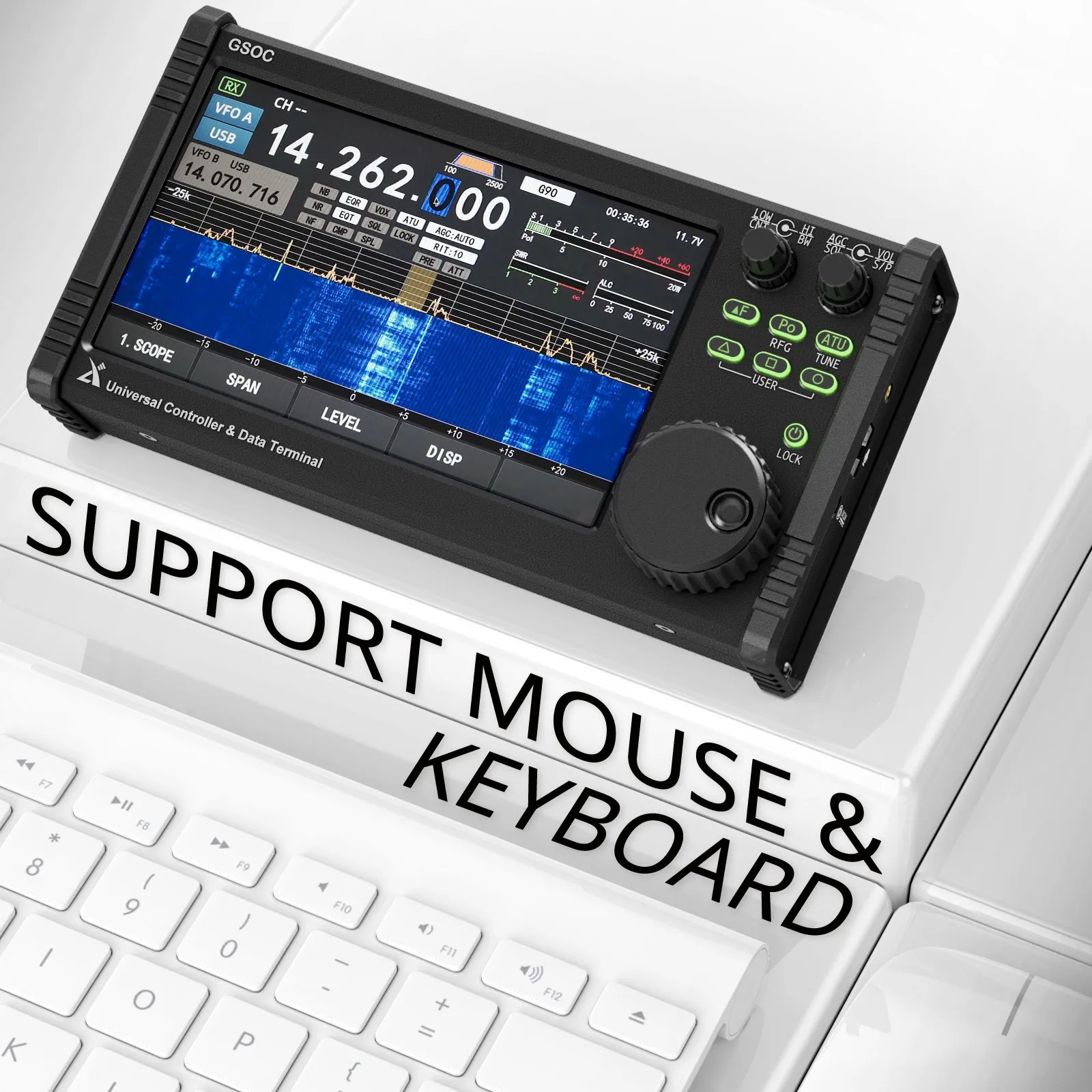

• Supports mouse & keyboard operating

• Dual-core eMMc application processor

• Built-in PSK, RTTY, CW digital mode

• RX & TX Multi-band Equalizers

• Easy two-wire connection to G90

• Fast frequency change & band selection

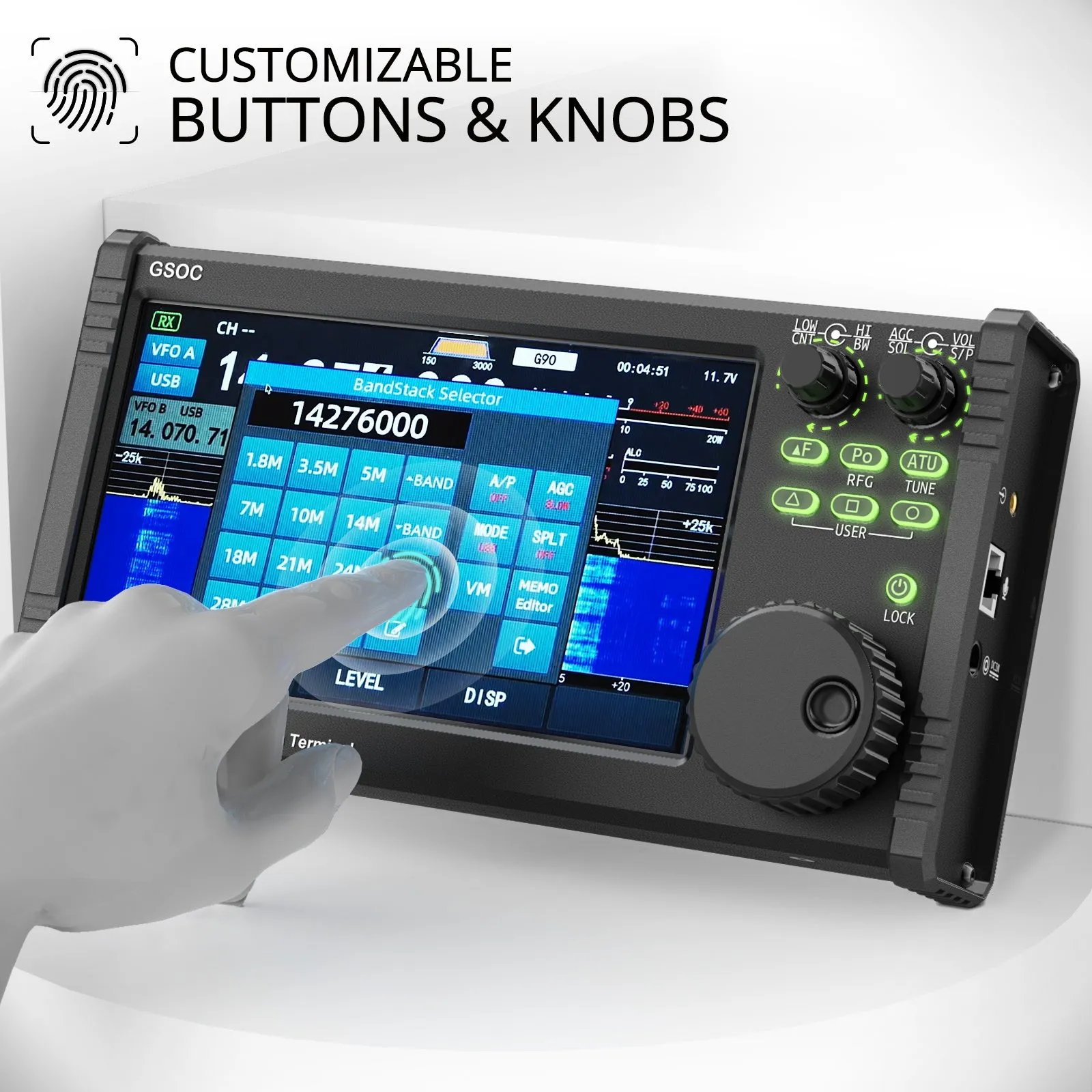

• Three user-programmable buttons

• Power design for future expansion
　

Specifications

Applicable model: G90
Operating temperature scope: 0°C ~ 50°C
Frequency stability: ±1.5ppm in the 10~60min after startup
@25°C: 1ppm/hour
Supply voltage: 10.5~16.5VDC, negative electrode grounding
Current consumption: 600mA @ Max
Display screen resolution: 1024*600
Touch screen type: Capacitive
Spectral sensitivity: -120dBm ± 3dB
Audio output: 0.5W (8Ω, ≤10%THD)
Earphone output impedance: 16~32Ω
Size: 230*130*45mm (excluding projection)
Weight: about 1.2kg / 2.65lb (only host)

FAQ:

Q: Does it support wireless mouse? Do I need to install any operating system to use mouse and keyboard?
A: Xiegu GSOC supports any mouse including wire and wireless. Plug and play, you don't need to install anything.

Q: Does the GSOC have a built in sound card?
A: GSOC has 2 built-in sound cards.One is 24bit/192k, the other is 8-32bit/48k, both availavle for IQ demodulation and digital communication.

The GSOC is equipped with a high clock rate dual-core processor, large memory and built-in eMMc storage. This design combination offers strong and smooth operation.

As always, Xiegu offers unbeatable value for the money in advanced Amateur Radio equipment. We will make continuous free firmware updates which give you even more enjoyment of this wonderful product and hobby!
　

Comparison

Related Items & Accessories

Radio
Holder
Stand
Expansion Port for easy PC connection
Transceiver
Amplifier
100W Amplifier
　

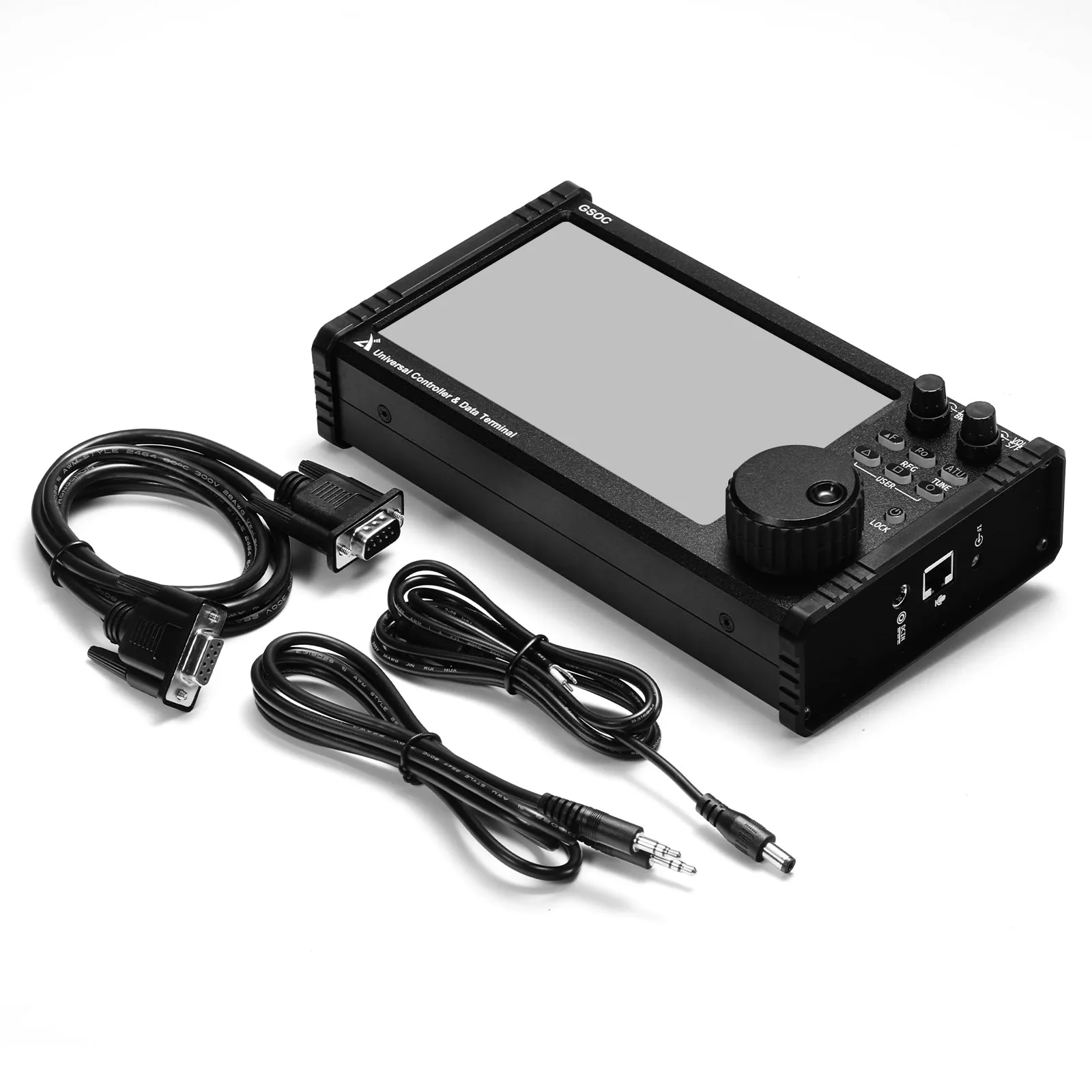

What's in the box?

1 x Xiegu GSOC controller
1 x Power Cable
1 x I/Q Cable for G90
1 x G90 Connection Cable
