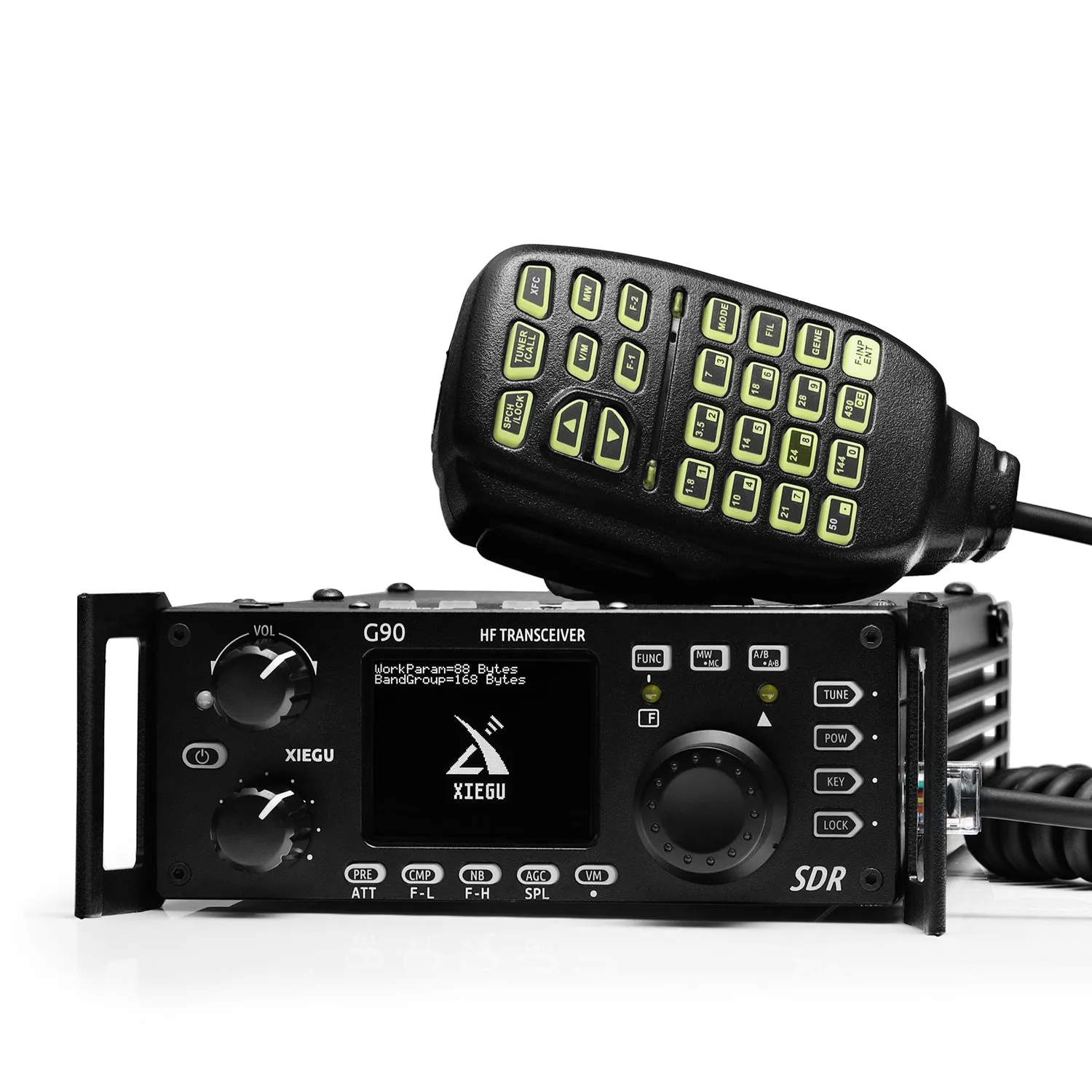

The G90 is the first model of the new Xiegu G-series. It's a portable 20W HF 10-160 mtr. multimode transceiver. The G90 uses 24-bit digital architecture. It also includes an internal automatic antenna tuner. The G90 has excellent transmit and receive performance. It packs huge performance into a small portable package.
The G90 has a removable display head that can be separated from the main body and connected via a DB-9 cable (provided with the radio). Both the radio's control head firmware and main body operating firmware can be user-updated using separate connectors on the head and body. The programming cable is provided.
FW Update Note
Please update the display unit first then the base. Also please note you must choose the 1k option in the file transfer menu. In the beginning, you have to press the space bar very quickly or it won't go into program mode.

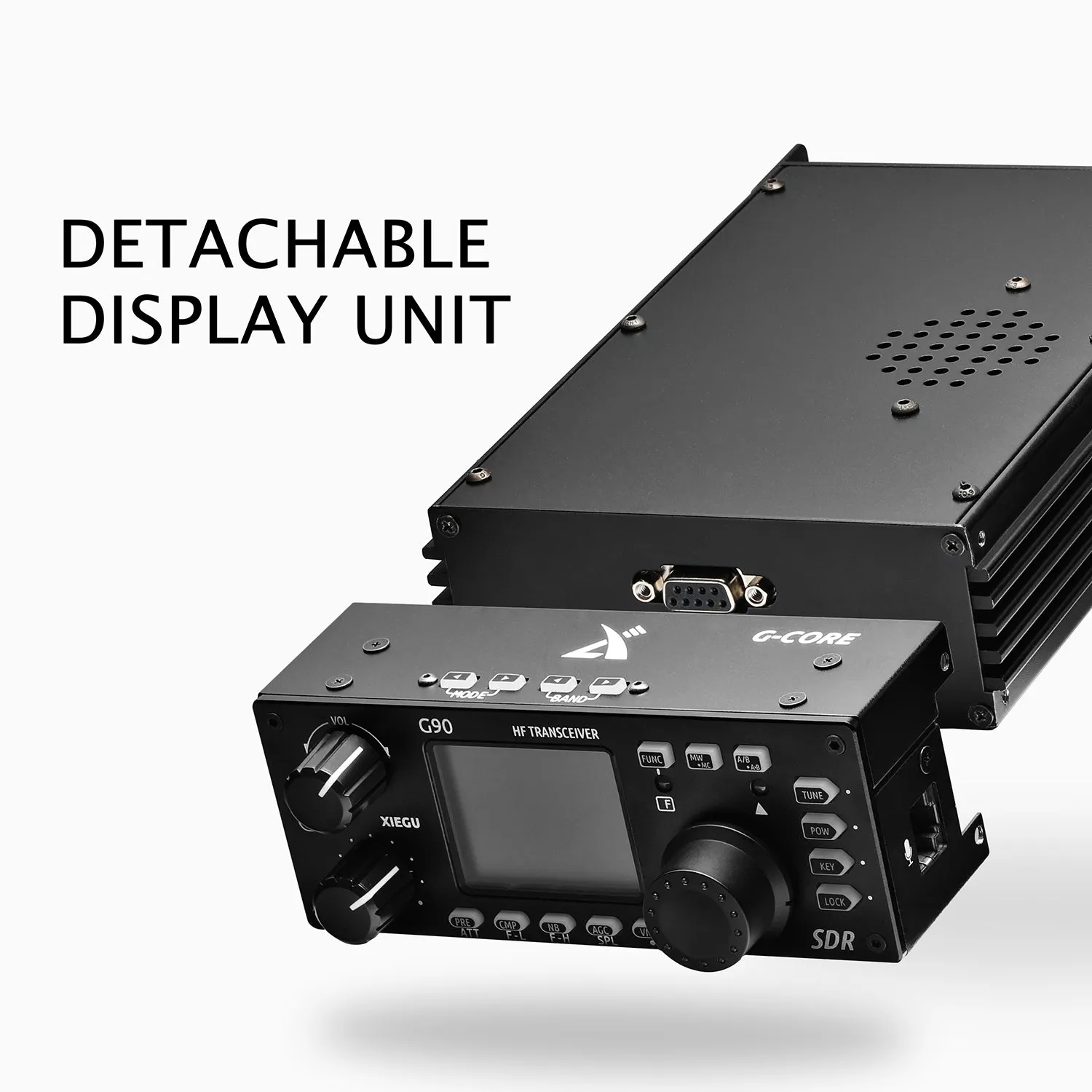

Detachable Display Unit
The detachable display design allows you to customize your installation.

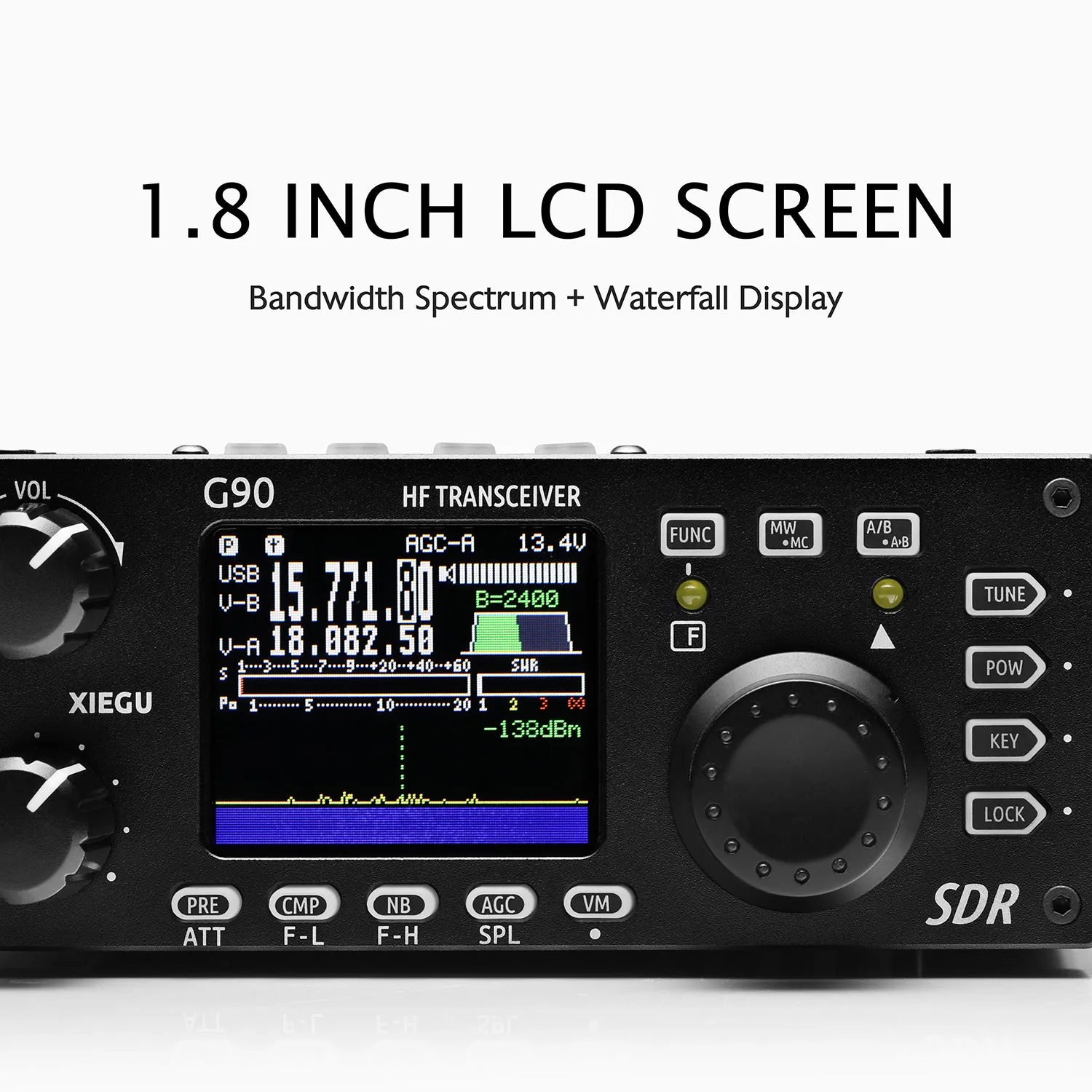

Color LCD Display Shows
±24khz bandwidth spectrum and waterfall. The sweep/refresh rate is very fast. The status of all functions are shown on the LCD display.

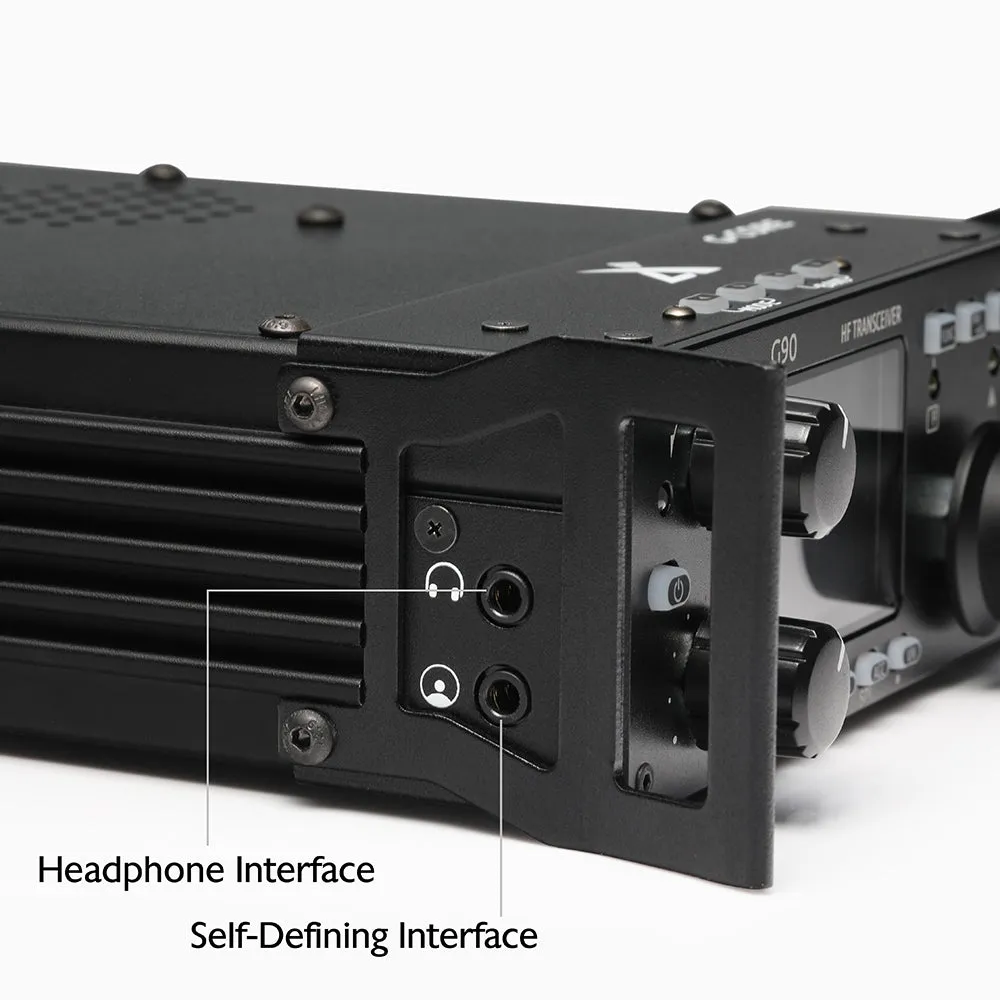

Convenient Side Interface
The G90 uses a standard 3.5mm stereo jack (3-pin) for connecting headphones. Also on the control head is a Firmware update port.

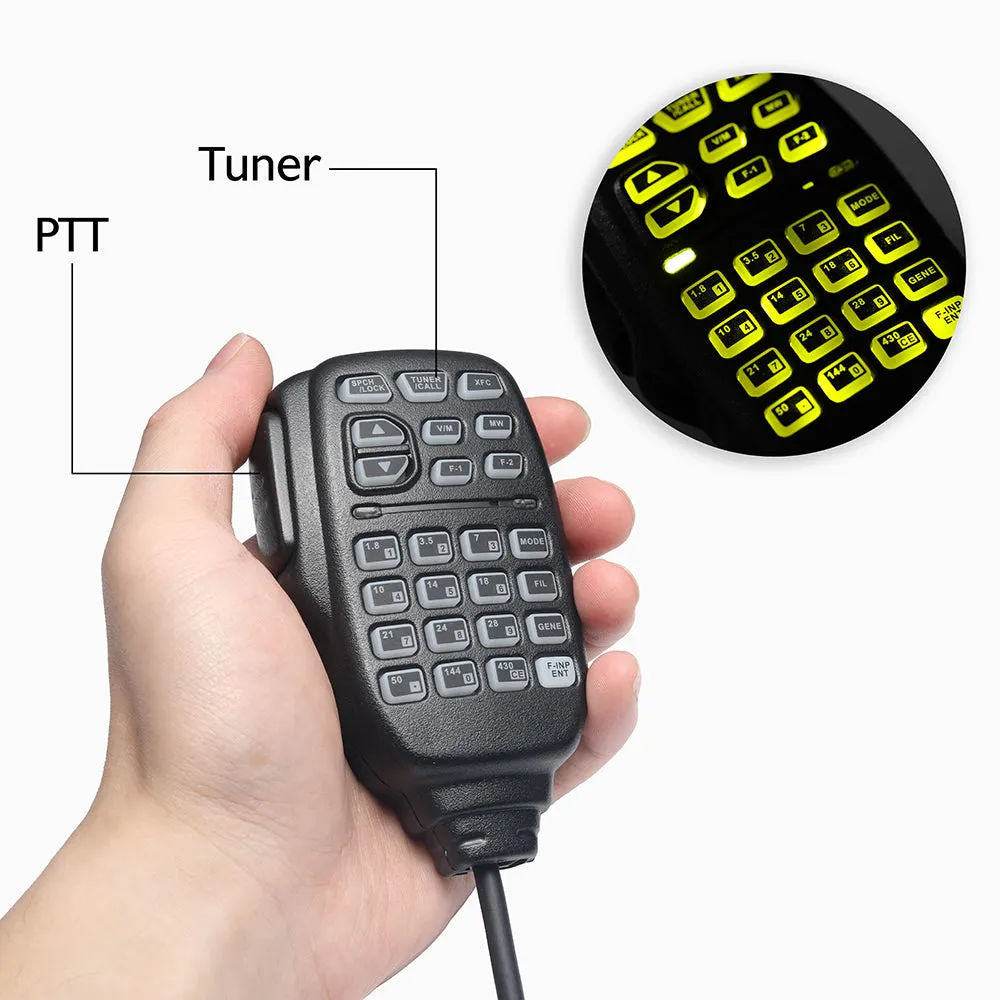

Multi-Function Mic
The microphone has two configurable and several dedicated function buttons.
Features
- Up to 20W of RF power
- High-performance RF front end giving superb selectivity
- Modes provided are USB/LSB/CW/CWR/AM/NFM
- 1.8-inch high brightness color TFT LCD screen
- ±24k bandwidth fast-scan spectrum display with waterfall
- Adjustable DSP band filters (CW mode can be as narrow as 50Hz)
- Detachable front panel/display head unit
- Built-in CW Decoder
- Built-in Antenna SWR scanner

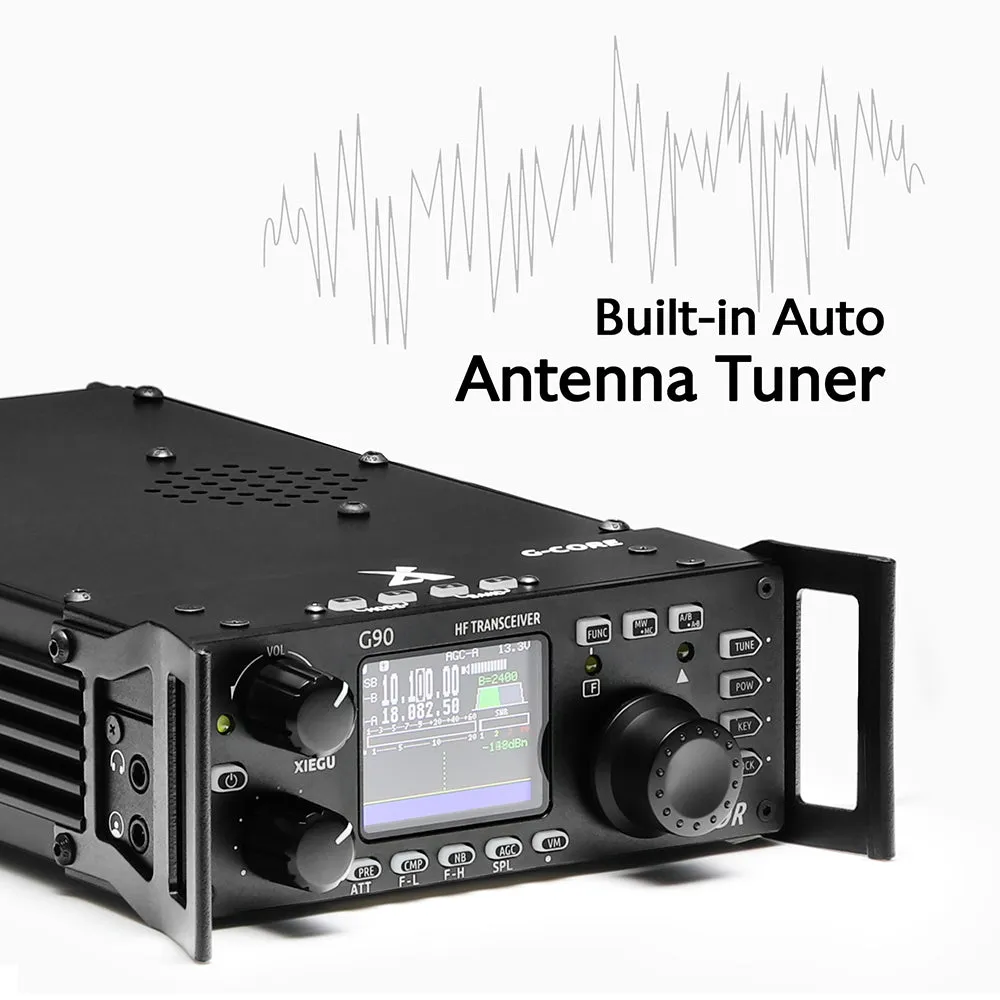

- Built-in wide-range automatic antenna tuner
- Built-in mediumwave (AM broadcast) high-pass filter
- I/Q output for interfacing with a PC or adapter
NOTE
- FM mode is available.
- It's normal that G90 overheats if used for a long time.
- If you want to keep the power of G90 on 20W, the voltage must be in 13.8 V-15V.
If the voltage is 13.8V below, the power would not be guaranteed and the driving kinetic energy would not enough.
| # General Specifications | |
| Frequency receive | 0.5MHz-30MHz |
| Frequency transmit: | 1.8-2.0MHz | 3.5-4.0MHz* 5.330.5-5.405MHz | 7.0-7.3MHz* 10.1-10.15MHz| 14.0-14.35MHz 18.068-18.168MHz| 21.0-21.450MHz 24.89-24.99MHz| 28.0-29.7MHz |
| Operating modes: | USB/LSB/CW/CWR/AM/FM (*2) |
| Minimum step: | 10Hz |
| Antenna impedance: | 50Ω |
| Working temperature: | 0°C ~ 50°C |
| Frequency stability: | ±1.5ppm in the 10~60min after startup @25°C: 1ppm/hour |
| Power supply voltage: | 10.5~16.5VDC, negative ground (must be 13.8-15V if need 20W) |
| Current consumption: | Receive: 700mA@ Max Transmit: 6A@ Max |

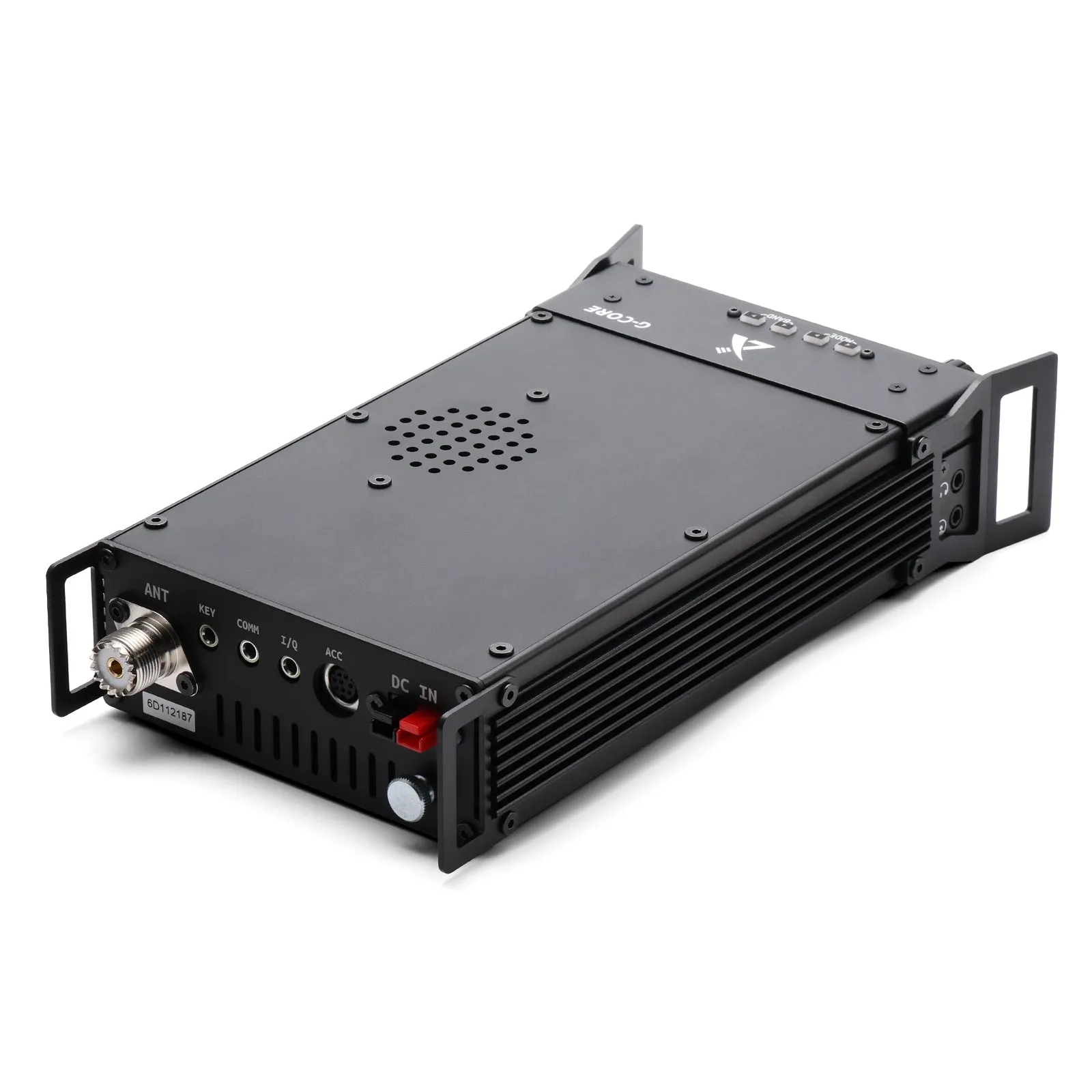

| Antenna socket: | SL16-K type, impedance 50Ω |

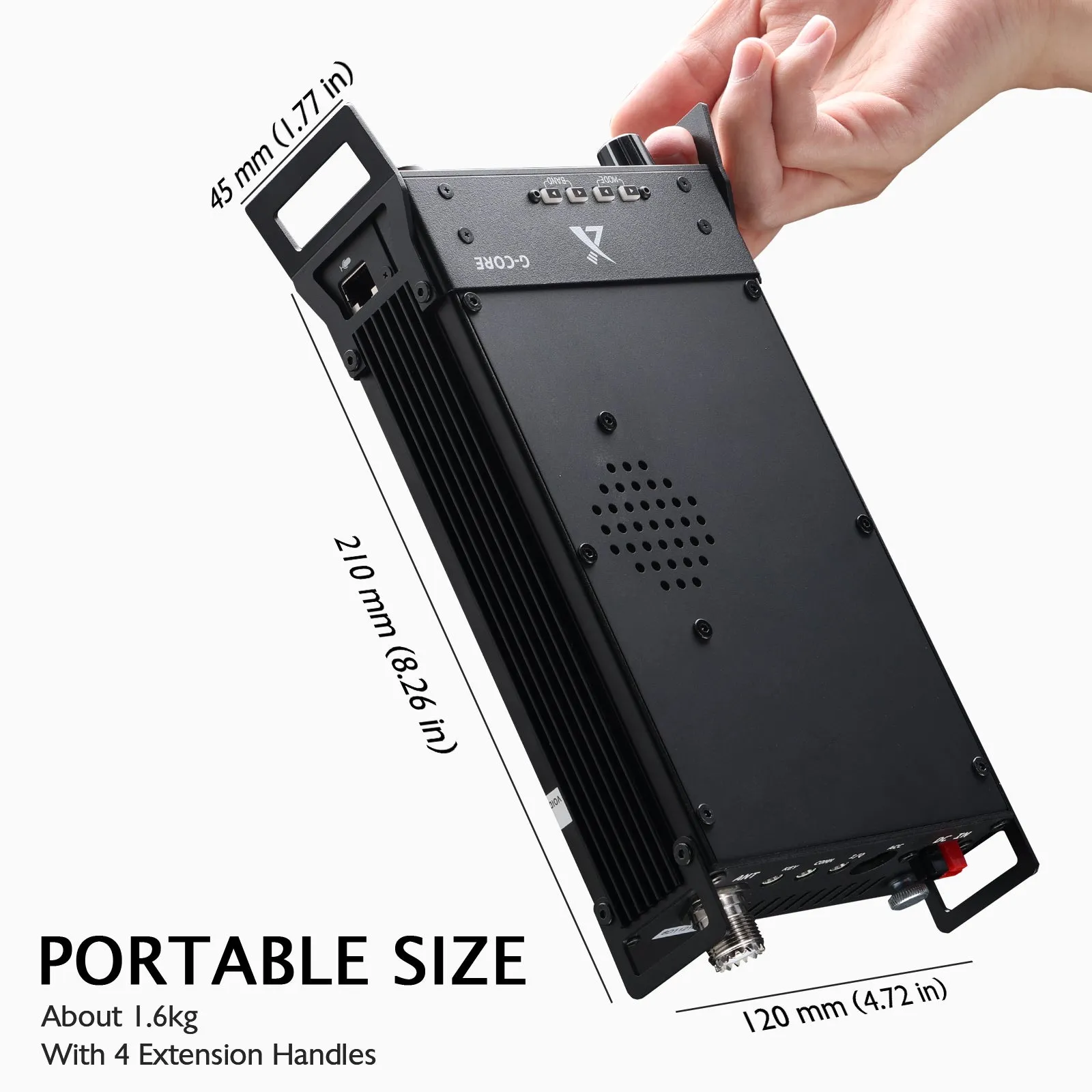

| Case size (mm): | 4.75 x 1.75 x 8.25inch | 12 x4.5 x21cm (case only) 5.5 x 2 x 9.8inch | 14 x 5.2 x 25cm (with handles) |
| Weight: | About 3.6lb | 1.63kg (main body) |
| # Transmitter | |
| RF output power: (@ 13.8VDC) | 20W(SSB/CW/FM/AM) |
| Spurious suppression: | ≥50dB |
| Carrier suppression: | ≥40dB |
| Microphone impedance: | 200Ω ~10kΩ (600Ω in general) |
| # Receiver | |
| Circuit type: | Zero-IF (ZIF) direct conversion SDR |
| Neighboring channel suppression: | ≥60dB |
| Sideband suppression: | ≥60dB |
| Mirroring suppression: | 70dB |
| Sideband suppression: | 60dB |
| Audio output: | 0.5W (8Ω, ≤10% THD) |
| Audio output impedance: | 4~16Ω |
*Note:
1. The 80-meter or 3.5 MHz band is a band of radio frequencies allocated for amateur radio use, from 3.5 to 4.0 MHz in IARU Region 2 (consisting mostly of North and South America), and generally 3.5 to 3.8 or 3.9 MHz in Regions 1 and 3 (the rest of the world) respectively.
2. The 40-meter or 7-MHz band is an amateur radio frequency band, spanning 7.000-7.300 MHz in ITU Region 2, and 7.000-7.200 MHz in Regions 1 & 3.
| Sensitvity | SSB/CW/FM | AM |
| 0.5～1.79999MHz | / | 10uV |
| 1.8～1.9999MHz | 0.35uV | 10uV |
| 2.0～27.9999MHz | 0.25uV | 2uV |
| 28～30MHz | 0.25uV | 2uV |
(PRE=on，ATT=off，NB=off，NR=off，SSB/CW/AM = 10dB S/N，FM = 12dB SINAD)
Recommended Accessories (not included in the package)
1. Expansion Port for easy PC connection
2. Data Interface Expansion Adapter
3. Holder & Cooling Fan
4. Stand
5. Portable Stand
6. Carrying Case
7. 100W Power Amplifier
8. Controller Panadapter/Data Terminal
9. Digital Audio Noise Filter
10. 40m/20m/15m/10m 4-band Vertical Antenna
11. 100W Portable Power Station
12.
13. Portable 6M-80M Antenna

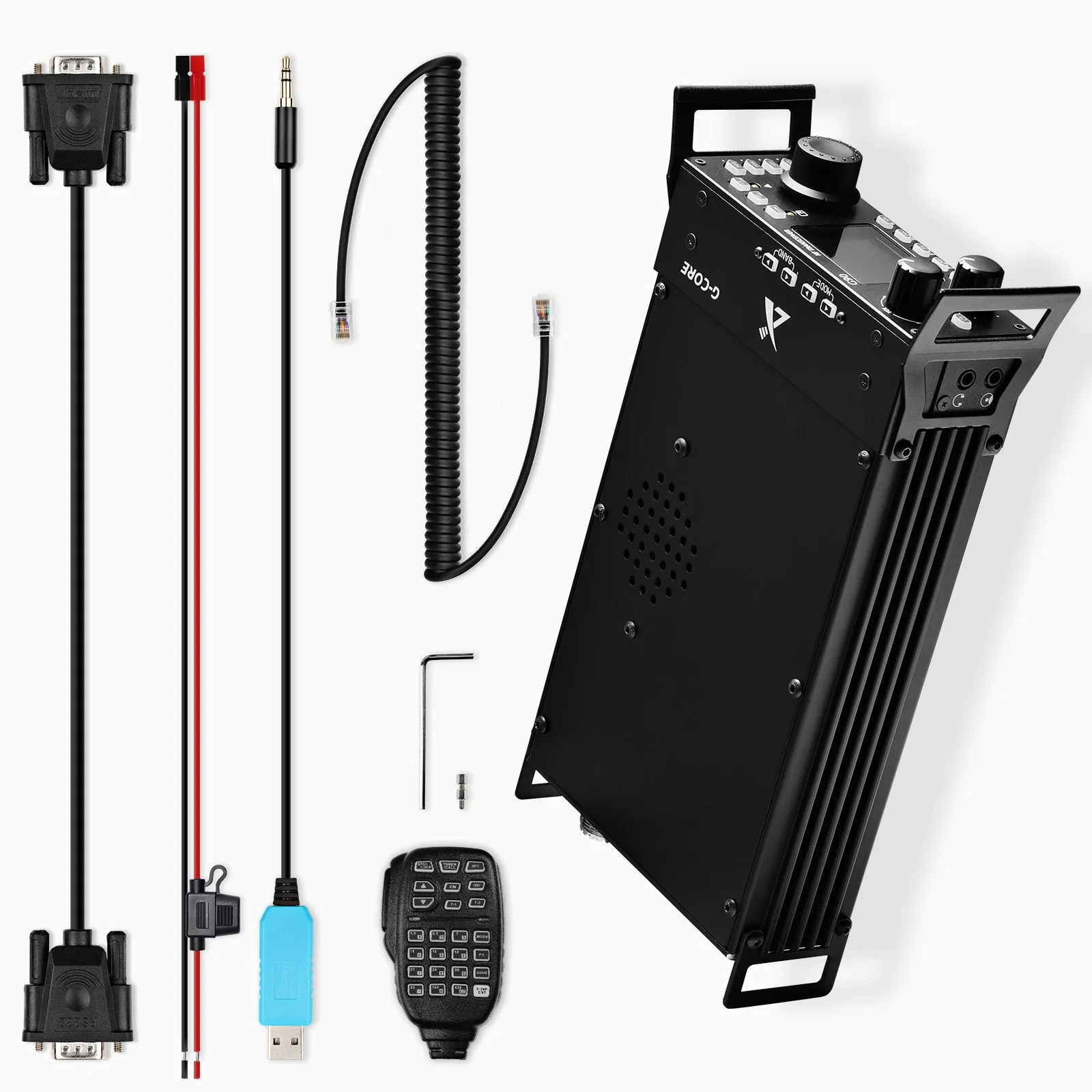

Package Content
1 x Xiegu G90 Transceiver
1 x Multi-function Microphone
1 x Firmware Cable
1 x Power Cable
1 x DB-9 Remote head cable
1 x Operation Manual
1 x Warranty Card
1 x Certificate
2 x Fixed Stud
1 x Hexagon Screwdriver
4 x Front and rear extension handles
