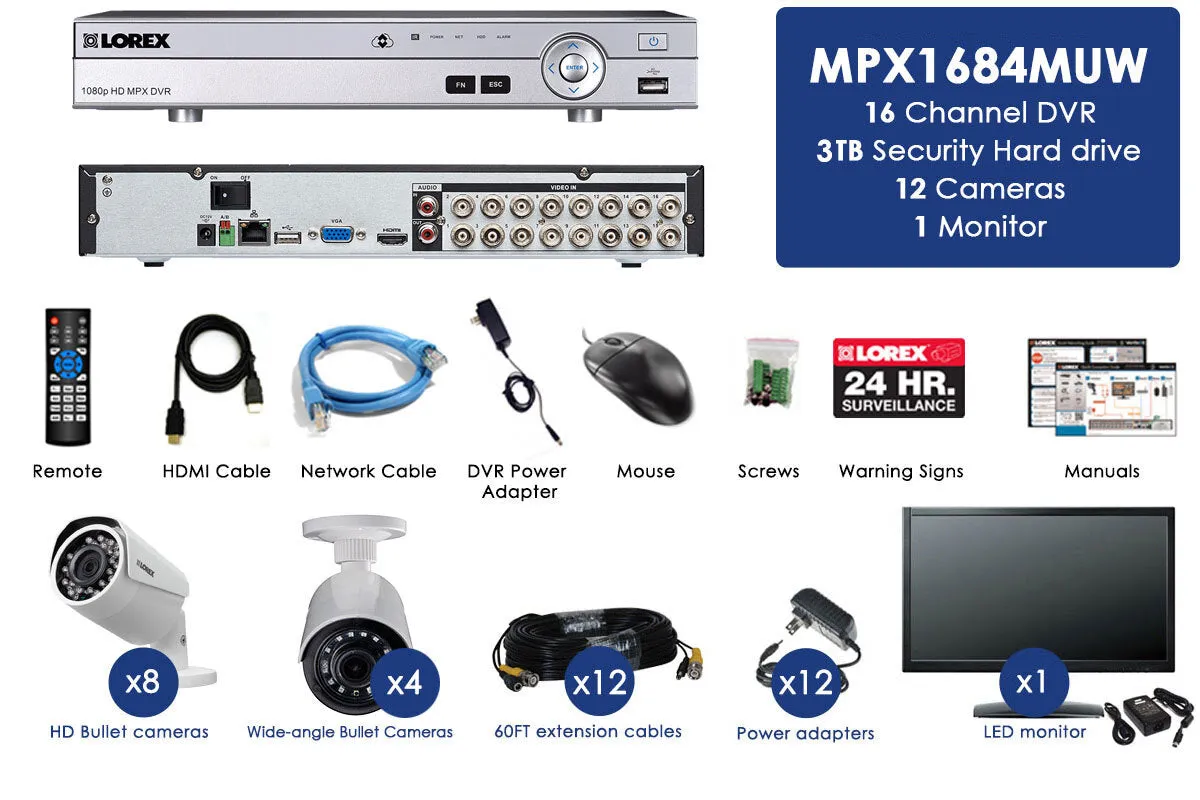

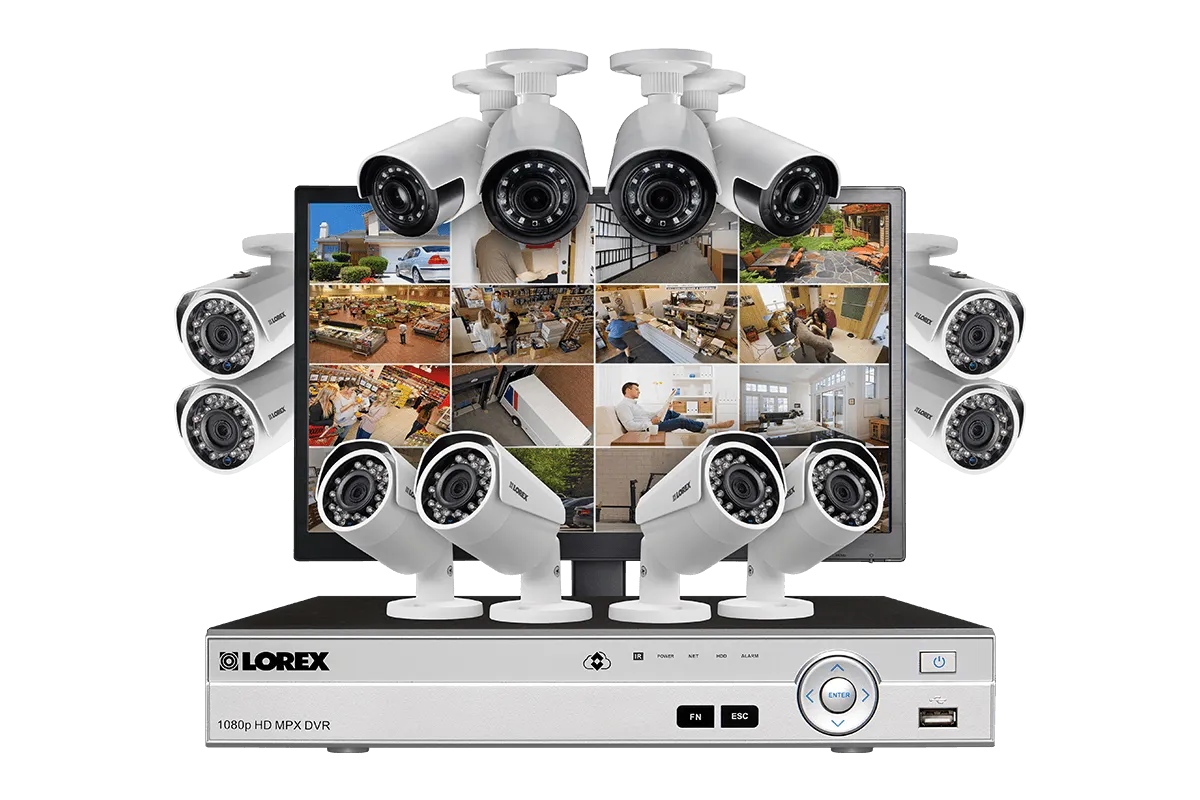

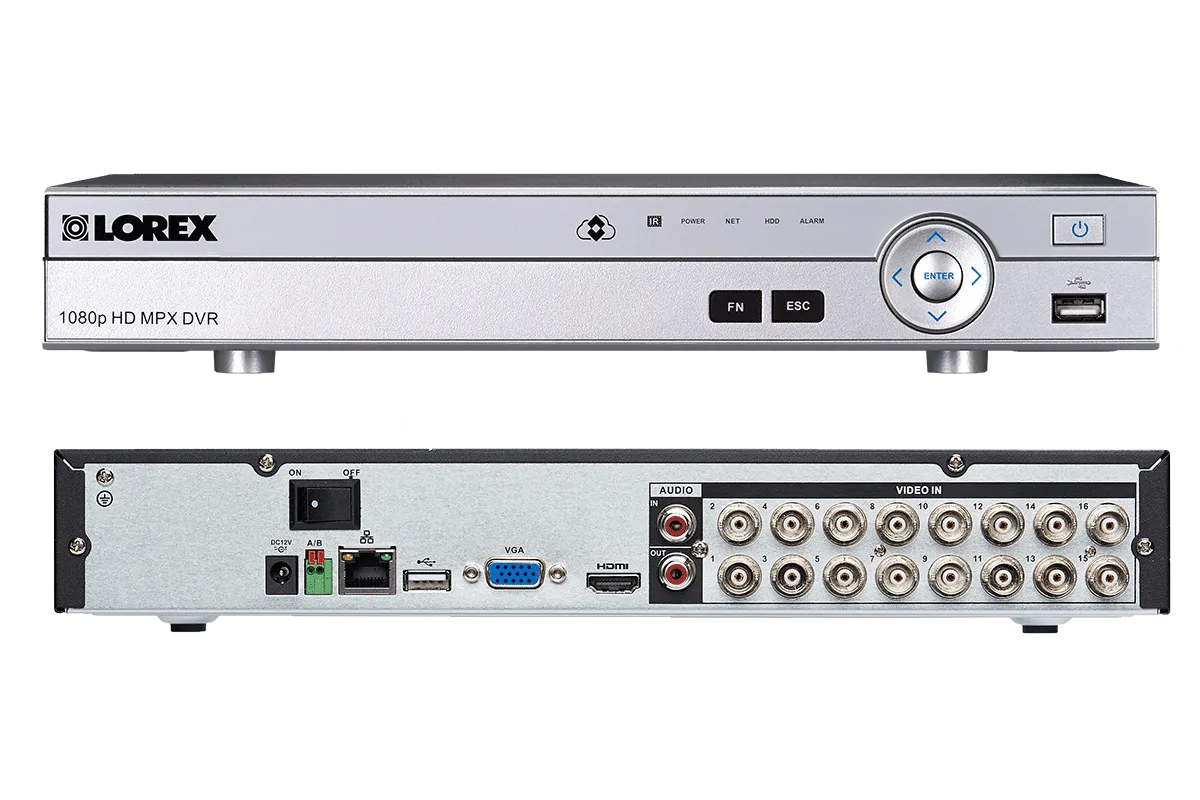

Be confident in Lorex to protect what matters by purchasing this expandable professional surveillance solution ideal for your home or business. The MPX1684MUW contains our exclusive 16-channel DV7163 HD DVR. It also comes with with eight 1080p weatherproof night vision cameras and four 1080p super wide-angle lense security cameras. Space for four additional security cameras is there for when your monitoring needs evolve.
MPX1684MUW
SPECIFICATIONS
16
CHANNELS
1080P DVR can support up to 16 cameras
12
CAMERAS
12 HD 1080p security cameras
including 4 ultra-wide
150FT
NIGHT VISION
Maxium night vision range
3TB
HARD DRIVE
Maximum capacity 1 x 4TB hard drive
1080p HD security monitoring can make all the difference
High definition video quality leaves nothing to question. It can be the difference in identifying faces. Video recorded at 30 frames-per-second (in 720p mode) delivers smooth on-screen movement, so your home security system doesn’t miss a moment. Receive extensive video coverage from each of the LBV2711B and LBV2561U HD security cameras, thanks to their 90° or 120-160° wide angle lenses.

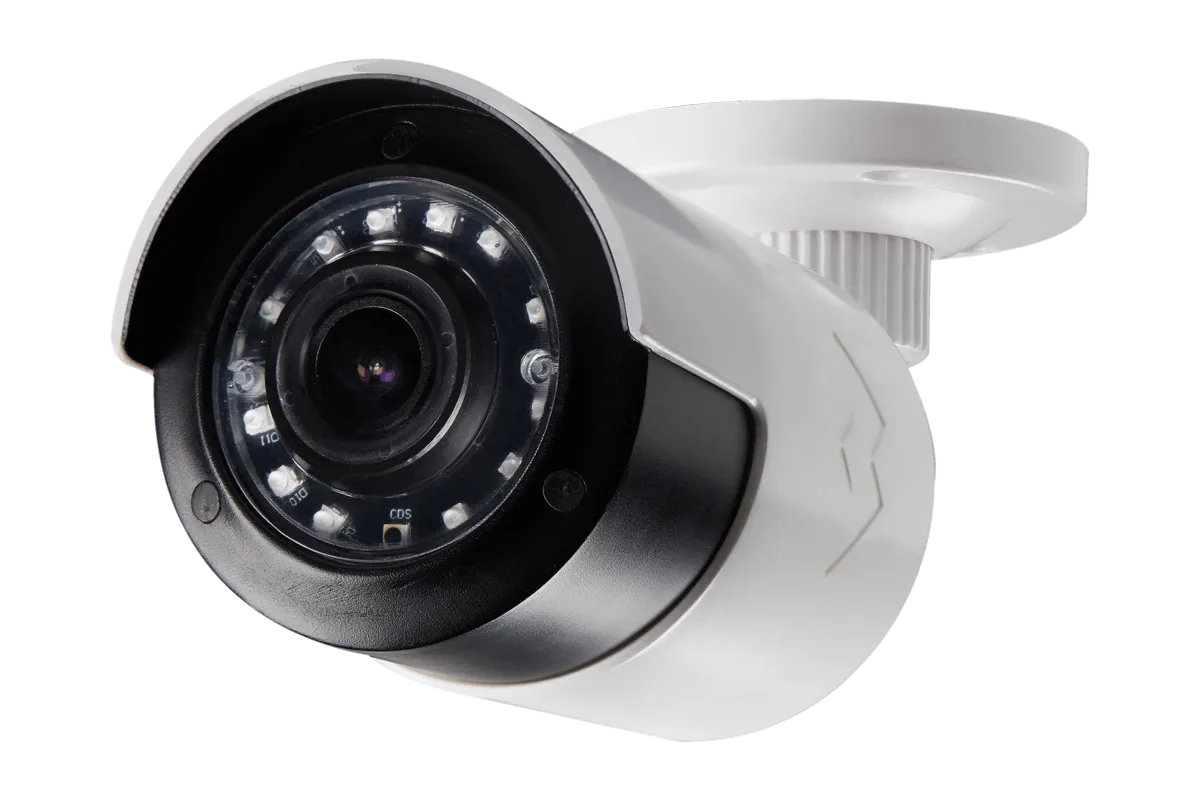

Super wide angle security cameras
The LBV2561UW security cameras are the perfect choice for large area or doorway monitoring. These cameras provides superior coverage thanks to its massive 120° horizontal / 160° diagonal field of view. Whether you need to monitor a large room, the street in front of your house, or a wide backyard, a single wide angle security camera can often take the place of multiple standard viewing cameras.
Flexible analog security installations
Each camera in this system uses a single RG59 siamese BNC cable to connect camera, power, and DVR. The range of analog HD cameras like these can be extended up to 800 feet away from the DVR - making them ideal for securing large properties (see documentation for complete details). The 16-channel DVR is also backwards-compatible, which means your older compatible BNC cameras can still be used to expand your security coverage without purchasing additional cameras.
Use your smartphone to stay connected with Lorex Cloud™ App
Easily consolidate your security system into the palm of your hand with the help of our Lorex Cloud™ app. Lorex Cloud™ makes your MPX1684MUW security system accessible via the internet so you can access your system from your mobile device. Customizable features such as push notifications and instant email alerts for motion-triggered events will keep you connected to your property no matter where you are in the world. With iOS® and Android™ options, your security system will always be at your fingertips.
Works With
Night vision security cameras that provide around the clock protection
Be confident that your Lorex security cameras will never leave you in the dark. Cutting edge infrared (IR) LEDs in the LBV2711B cameras provide excellent performance night vision, allowing you see in the dark up to 150ft / 46m in ambient lighting (and up to 100ft / 31m in total darkness). The LBV2711B and LBV2561U HD security cameras also feature SmartIR technology that aids close up recognition of objects in the dark. ClearNight imaging delivers superior low light operation (and recording efficiency).
Security cameras that can withstand mother nature
Residential and business friendly compact design allows the these security cameras to be placed where you need them most - indoors and outdoors. Rated , they can withstand the most unforgiving climates - they will even continue to operate in extreme temperatures as low as -22°F (-30°C) for the LBV2711B cameras and 4°F (-20°C). Lightweight (yet durable) polycarbonate housing makes these HD security cameras a superior choice for year round security monitoring that never stops working.
LBV2711B
140°F | 60°C
Heat Rating
-22°F | -30°C
Cold Rating
LBV2561U
122°F | 50°C
Heat Rating
-4°F | -20°C
Cold Rating
Efficient and dependable security certified hard drive
The 3TB in the MPX1684MUW’s DVR is manufactured precisely to handle the high workloads that come along with security monitoring. Trust top quality performance - the hard drive can store weeks (even months) of reliable security footage. It can be in constant operation, and will even continue recording while you’re reviewing footage. Program your DVR to record at a lower resolution or scheduled recording times to increase storage space. The motion-triggered recording option can save storage space as well by only starting to record if movement is detected.
| Recording | Full 1080p HD (1920x1080) | 720p HD (1280x720) | Analog 1080p HD (1920x1080) | 720p HD (1280x720) |
| Platform | 1080p HD NVR systems | 720p HD NVR systems | 1080p HD DVR systems | 720p HD DVR systems |
| Video | Digital IP / RJ45 connection | Digital IP / RJ45 connection | Analog BNC / RG59 connection | Analog BNC / RG59 connection |
| Power | PoE (Power over Ethernet) | PoE (Power over Ethernet) | Standard DC power | Standard DC power |
| Installation | Connect cameras to NVR or to router/LAN | Connect cameras to NVR or to router/LAN | Cameras require wired connection to DVR | Cameras require wired connection to DVR |
