Robopac’s Heavy Duty Automatic Cut, Clamp and Seal System on the Technoplat 708 can be counted on to work for you load after load. The Heavy Duty Cut, Clamp and Seal System allows you to keep your fork truck drivers in the driver’s seat where they can be the most productive.

The Auto Film Clamp is highly reliable, with a dual rod cutting system that fully automates the wrapping process.

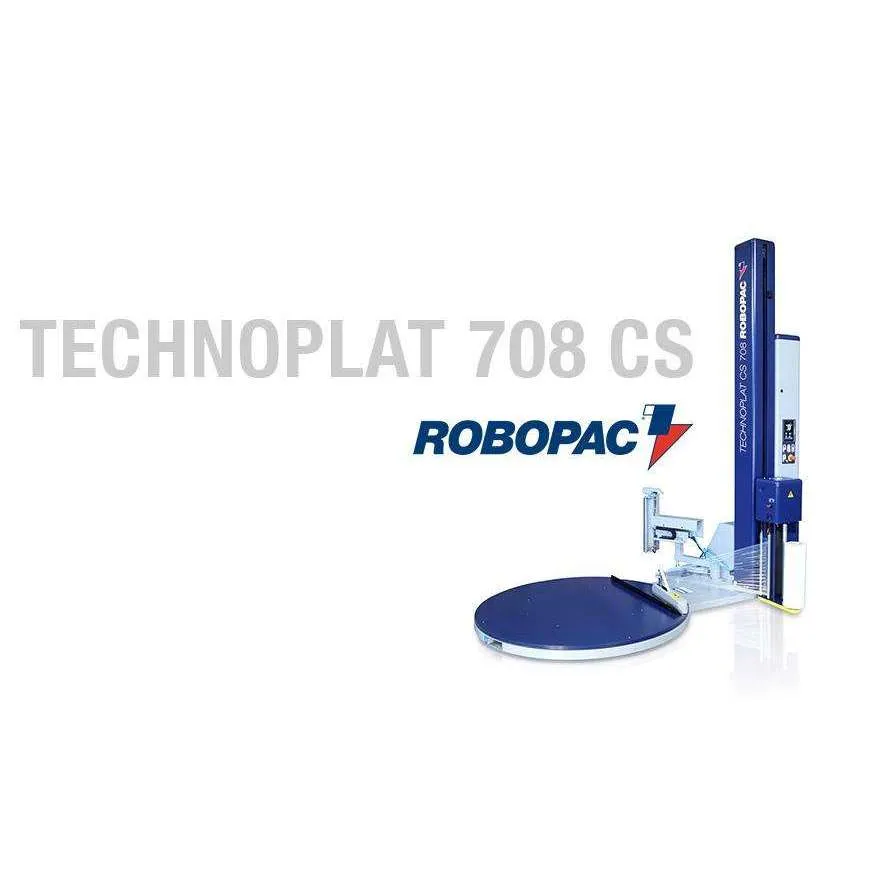

The Technoplat 708 CS’s patented roll carriage design combined with the ultimate flexibility of CUBE Technology allows you to wrap any load with any film with complete confidence. The Multi-Level Variable Containment Force is optimized at each level and is adjustable up to nine (9) times on each load.

CUBE Technology will reduce your film usage by 30% – 55% over currently available competitive stretch wrapping systems. It will also improve your load containment and reduce potential product damage. This ensures that your product reaches your customer in “as-made” condition by maintaining proper wrapping standards.

With CUBE Technology!

Our innovative CUBE Technology offered on this machine combines the following four (4) key factors to successfully wrap loads & ensure that they reach your customer in “as-made” condition by maintaining proper wrapping standards.

Multi-Level Variable Pre-Stretch ensures the best film economy & delivers 30-55% film savings.
Multi-Level Variable Containment Force delivers optimal containment force at each level of the load.
Pro-Active Corner Compensation enables you to wrap any load securely without corner damage or repetitive film breaks.
Strategic Film Placement allows you to place film exactly where it has the most impact on load stability and containment.

R-Connect Included!

R-Connect, Our latest innovation was developed to provide usage and performance data via the cloud, enabling you to meet Industry 4.0 demands by putting performance monitoring & optimization at your fingertips. Utilization drastically reduces downtime by giving you informational transparency, allowing you to connect with your machines remotely to investigate alarms, adjust parameters, & respond promptly. This Industry 4.0 innovation empowers you with actionable insight to continuously improve performance, cost savings, & automation.

Technical Data

Performance
Production Speed	Up to 40 LPH
Load Capacity
Max Load Dimensions	52"(w) x 52" (l) x 110" (h)
Maximum Load Weight	4400 lbs
Machine Structure
Turntable Height	2 7/8"
Turntable Diameter	65"
Turntable Construction	3/8" steel plate
Turntable Drive Motor	1 HP VAC
Turntable Speed	5 - 15 RPM
Film Delivery System
Standard Pre-Stretch	Multi Level Variable 100-400%
Containment Force	Multi-Level Variable
Film Carriage Motor	1/2 HP VAC Chain-Driven
Height Sensing	Automatic via Photocell
Film Threading	Patented S-Pattern
Corner Compensation	Load Cell
Operator Interface
Control Panel	Touch Screen HMI
Wrapping Menus	12 Programmable Menus
Utility Requirements
Electrical	110 VAC, 1ph/60Hz ( /-10%)
Safety Features
Anti-Fall Device on Carriage	YES
Pressure Activated Safety Stop on Carriage	YES
CE Compliant, UL, CUL	YES

Features

Auto Film Clamp

Highly reliable, dual rod cutting system fully automates the wrapping process.

Cube® "SMART Stretch Wrapping" Technology

Innovative technology that combines multi-level variable pre-stretch, multi-level variable containment force, pro-active corner compensation, and strategic film placement to successfully wrap loads & ensure that they reach your customer in as-made condition by maintaining proper wrapping standards.

Icon Driven Touchscreen

Makes setting parameters easy & intuitive with an interface that offers a tablet-like experience that allows you to tap & scroll your way through settings.

Multi-Level Variable Containment Force

Delivers optimal containment force at each level. Containment force is adjustable up to 9 times on each load.

Multi-Level Variable Pre- Stretch

Ensures the best film economy for every load. Adjust the pre-stretch up to 9 times on each load. Multi-Level Variable Pre-Stretch Technology delivers 30% to 55% film savings over currently available competitive stretch wrapping systems.

R-Connect®

R-Connect® Remote monitoring software.

Standard 110" Wrap Height

Ensures you can wrap even your tallest loads.

Warranty

Written guarantee to repair or replace the machine if necessary.

AVAILABLE OPTIONS

30" Film Carriage

Auto Film-Cutting Device

Cold Package

Extended Warranty

Ramp
