Product Details
＋
Specifications:

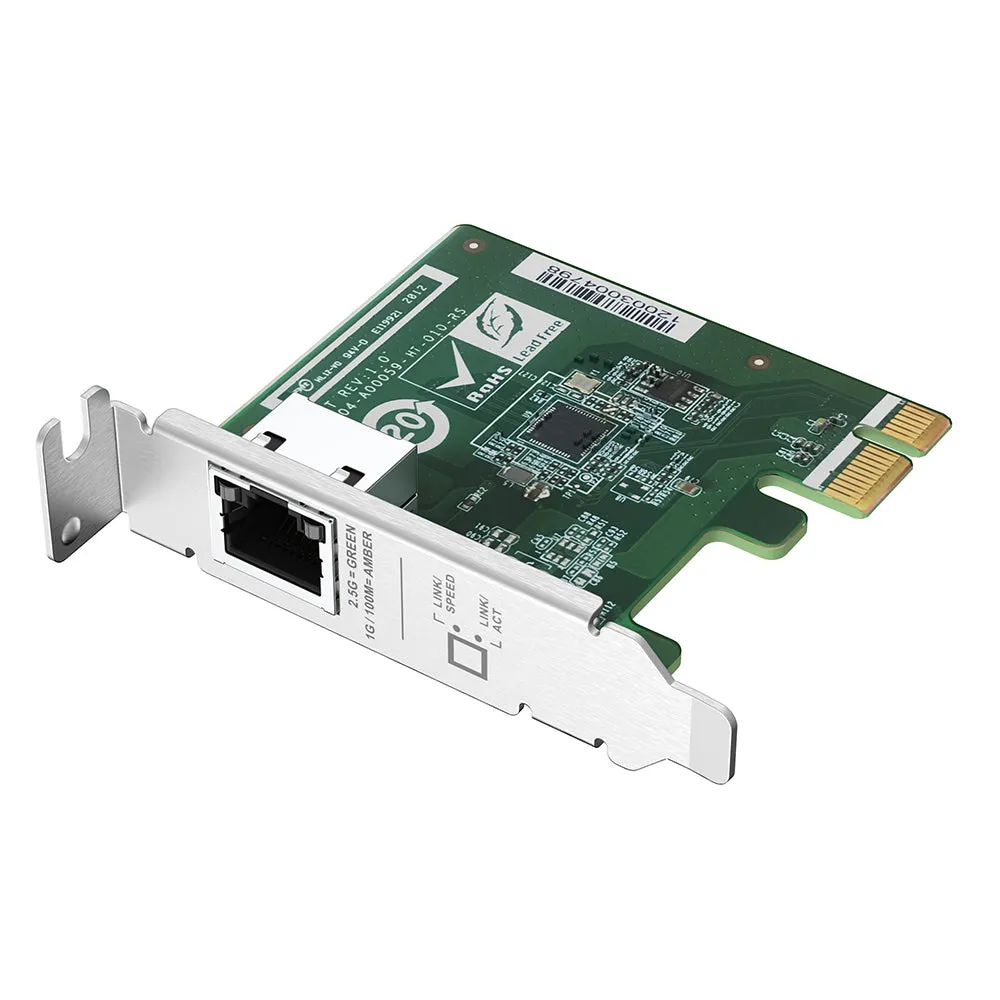

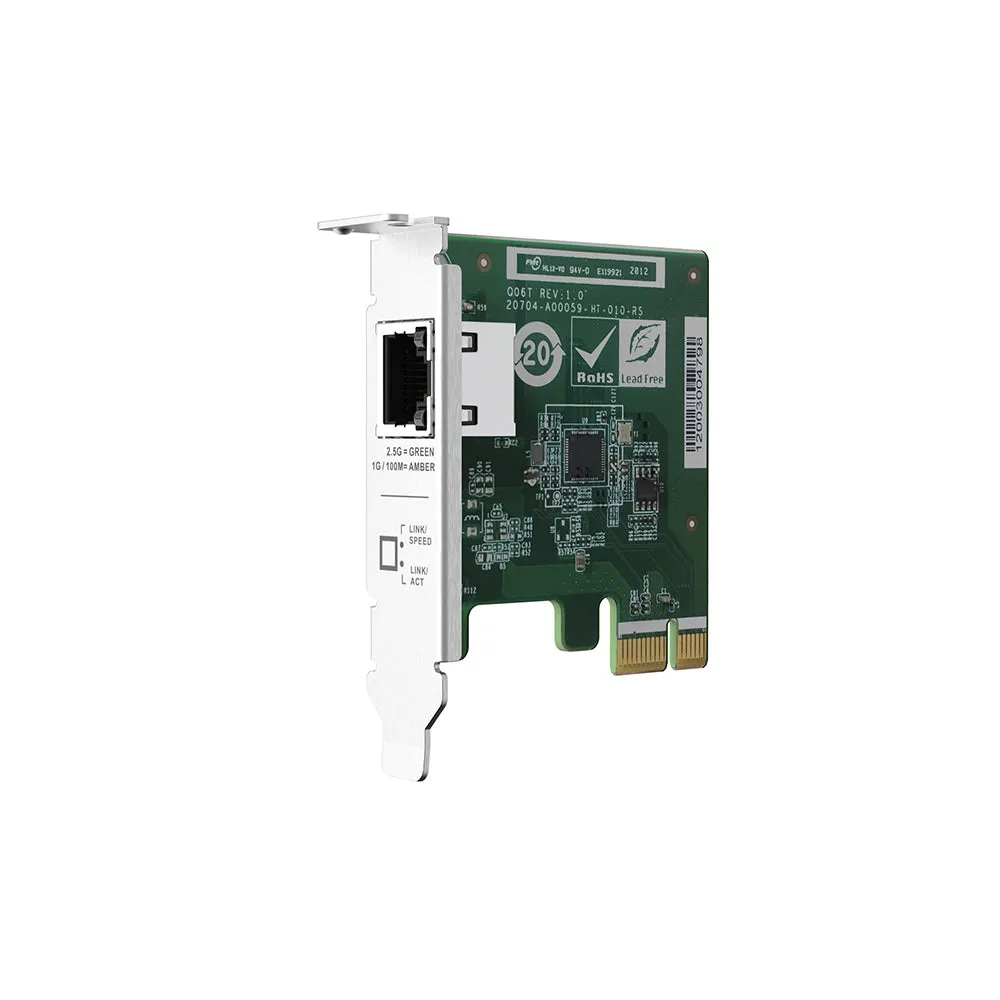

- Product Number: QXG-2G1T-I225
- QNAP offers various cost-effective network expansion cards for businesses and home users to easily upgrade the bandwidth of their QNAP NAS, servers and computers to accommodate high-speed data transfer and bandwidth-hungry applications.
- The 2.5 GbE network expansion card delivers speeds of up to 2.5 Gbps. You can easily upgrade your home and office network infrastructure with existing cables.
- Single-port 2.5 GbE network expansion card
- Controller: Intel Ethernet Controller I225-LM
- Connector: RJ45
- PCIe interface: PCIe Gen2 x1
- Transmission rates: 2.5Gbps/1Gbps/100Mbps/10Mbps
- Supported operating systems: QTS/QuTS hero (recommend an upgrade to the latest version); Windows 10 (1809 or later); Linux Stable Kernel 4.20/5.x; Windows Server 2019 (Driver required)
- Supported QNAP NAS: Models with PCIe slot(s) (1 free slot required)
- Port and cable: RJ-45; over CAT-5 class cable
- Supported functions: PXE, Wake-On-LAN (WoL), 9k jumbo frame, 802.1AS-rev/1588, 802.1Qav/802.1Qbv, Time Sensitive Networking (TSN), RSS MSI-X, Teaming & VLAN support, Intel AMT**

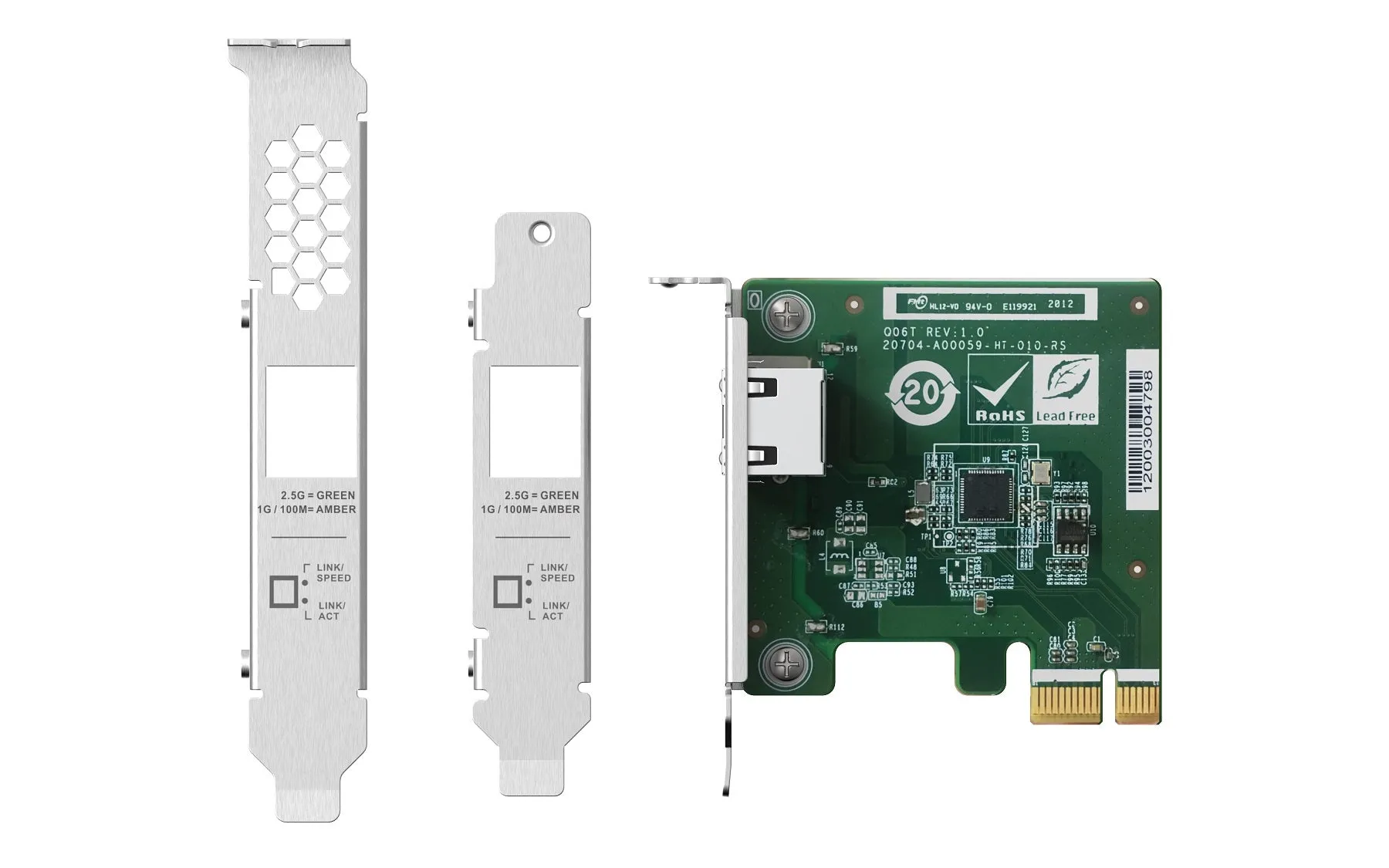

- Package Content: 1 x Network card (Low-profile bracket pre-installed); 1 x QIG; 2 x
- Brackets (full-height and specialized for QNAP NAS)
