Name: Onkyo TX-RZ30 9.2-Channel Network AV Receiver
SKU: 220359

Music Streaming Options

The TX-RZ30 offers versatile music streaming options to suit your needs. Access your personal digital library via Wi-Fi or connect to popular streaming services like Amazon Music HD, Spotify, Tidal, Deezer, Pandora, and TuneIn. For added convenience, you can also stream music directly from your mobile device via Bluetooth, ensuring seamless playback of your favorite tunes.

Sonos Multi-Zone Streaming

Sonos users can seamlessly integrate the TX-RZ30 into their existing ecosystem for a multi-zone whole-home audio experience. Whether you want the same music playing throughout the house during a party or different tracks in each room for individual preferences, the TX-RZ30 makes it possible. With volume pass-through support, you can easily manage playback and control volume across all zones using the Sonos Controller app for a unified and effortless experience.

Klipsch Optimize Mode

In collaboration with renowned speaker manufacturer Klipsch, Onkyo has equipped the TX-RZ30 with custom-tuned crossover values specifically designed for Klipsch Reference Premiere series speakers. This feature ensures seamless integration and delivers optimized sound performance, allowing users to enjoy their Klipsch speakers at their full potential with minimal setup effort.

IMMERSIVE AV WITH DOLBY TECHNOLOGY

Dolby Atmos transports you into the heart of the action by creating a 3D sound environment via object-based audio, allowing sounds to move freely in space, including overhead, for a truly immersive experience. Dolby Vision enhances every frame by dynamically adjusting brightness, contrast, and color levels on a scene-by-scene basis. This ensures that every detail is rendered with astonishing accuracy, from the deepest shadows to the brightest highlights.

Technical Specifications:

Channels	9.2
Amplifier Class	Class-AB
Power Output per Channel	2-Channel Driven: 100 W at 8 Ohms / 20 Hz to 20 kHz / 0.08% THD
Frequency Response	5 Hz to 100 kHz

DTS Compatibility	DTS Neural:X, DTS:X, IMAX Enhanced
Dolby Compatibility	Dolby Atmos, Dolby Surround
Upmixing Technology	Dolby Surround, DTS Neural:X

HDR Support	Yes, HDR10 /Dolby Vision
Pass-Through Support	8K

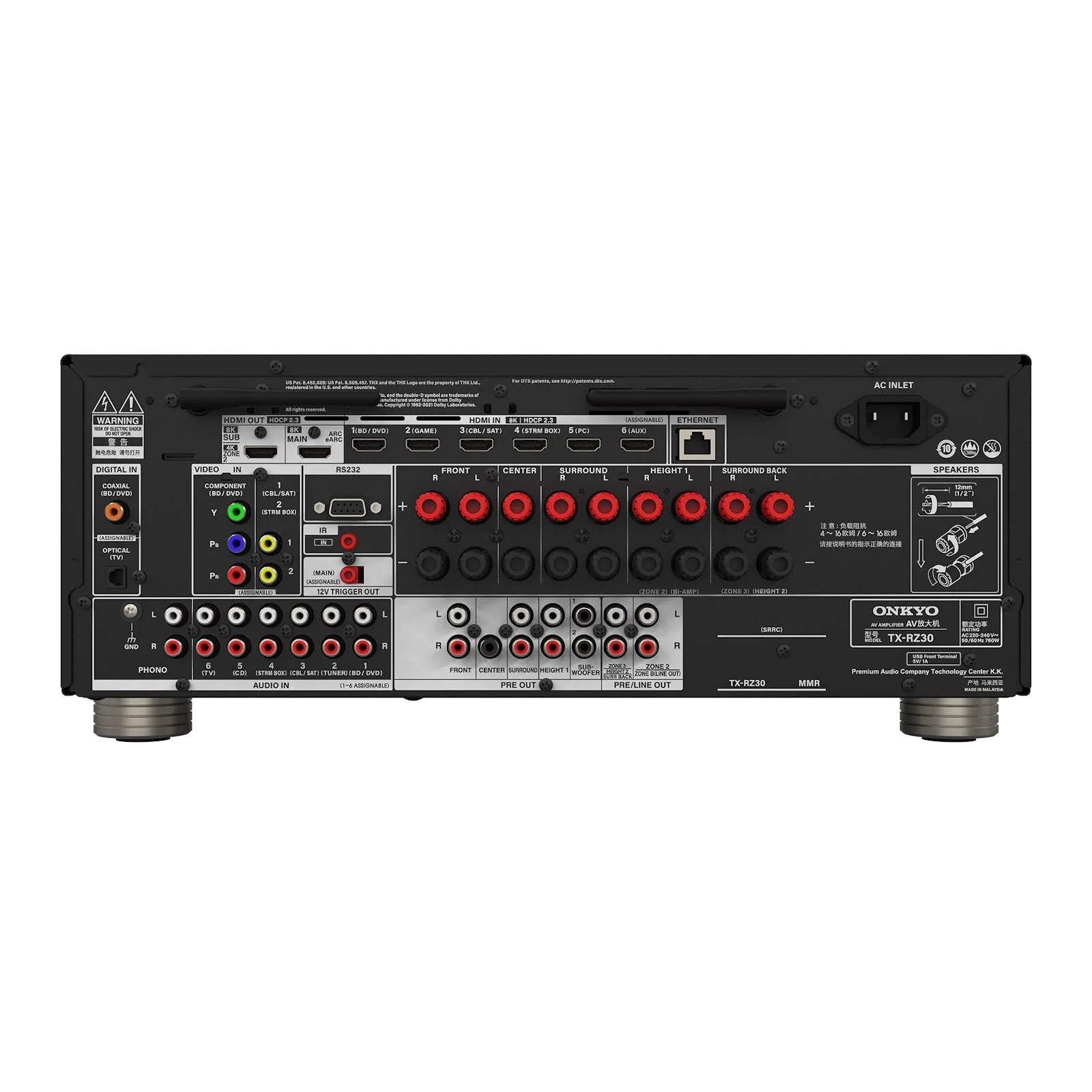

Rear A/V Inputs	6x HDMI 2.1 1x Optical TOSLINK 1x Digital Coaxial 1x RCA Component 2x RCA 1x Stereo RCA (Phono) with Ground Screw 6x Stereo RCA
Rear A/V Outputs	1x HDMI 2.1 1x HDMI 2.1 Subwoofer / Zone 2 3x Stereo RCA Pre-Out 1x RCA Pre-Out 2x RCA Subwoofer Pre-Out 2x Stereo RCA Zone 2 / Zone 3 / Height 2 Pre-/Line-Out

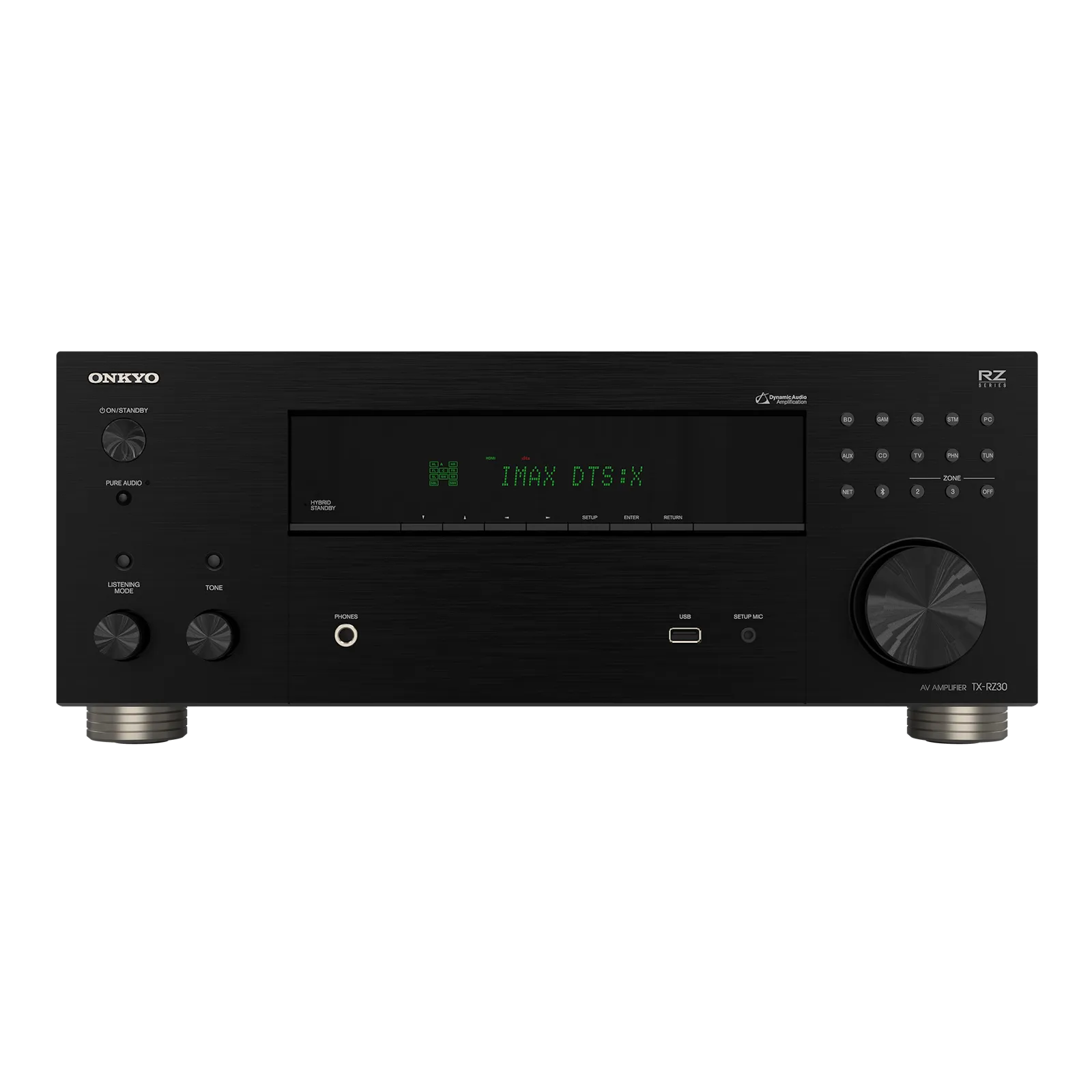

Front I/O	1x 1/4" / 6.35 mm Headphone Output 1x USB-A Input/Output 1x 1/8" / 3.5 mm Setup Mic Input
Other Rear I/O	1x RJ45 (Ethernet) Input/Output 1x FM Coaxial F-Type Input 1x AM Block Input 1x DE-9 (RS-232C) Input 1x 1/8" / 3.5 mm (IR) Input 1x 1/8" / 3.5 mm (12 V Trigger) Output
Speaker I/O	9x Binding Post Pairs (Front, Center, Height, Rear, Rear Surround)
HDCP Support	Yes, Version 2.3
Audio Return Channel (ARC)	ARC, eARC
HDMI CEC	Yes
