FEATURES:



• 4 concurrent Skype video channels
• 4-in, 4-out HD-SDI connections
• Integrated NDI® technology supporting input and output over IP
• Integrated support for Dante™ network audio input
• Tally notification on all call channels
• The most complete audio and video capabilities



SPECIFICATIONS:



Skype Channels:

• Up to 4 simultaneous



Hardware Video Input:

• 4 x HD-SDI with embedded audio



Hardware Video Output:

• 4 x HD-SDI with embedded audio



Hardware Audio Input:

• 4 x embedded SDI audio
• 2 x balanced XLR (line)



Hardware Audio Output:

• 4 x embedded SDI audio
• 2 x balanced XLR (line)



IP Networking:

• Video and audio over IP via NewTek NDI®



Dante™ Audio Networking:

• Network audio input and output via integrated support for Dante networking protocol from Audinate®



Call Video Configuration:

• Fully configurable color correction settings, including white balance, proc amp controls and auto color



Return Video Configuration:

• Selectable video source for return to each Skype caller



Call Audio Configuration:

• Fully configurable audio settings, including gain control, seven-band equalizer, compressor/limiter, and noise gate



Return Audio Configuration:

• Selectable audio source and mix-minus channel control for return to each Skype® caller



Talk Back:

• Supports direct, off-air communication between operator and caller(s) via headset



Video Monitoring:

• 2 x HDMI monitor ports and configurable multiviewer workspace with selectable layouts and optional overlays



Audio Monitoring:

• 1 x stereo 1/4” phone jack and on-screen audio VU metering



Call Management:

• Skype TX controller software included



Supported Output Formats:

• 1080i – 25, 29.97, 30
• 1080p – 23.98, 24
• 720p – 50, 59.94, 60
• 576i (16:9 or 4:3) – 25
• 480i (16:9 or 4:3) – 29.97



Call Recording:

• Supported via integration with external hardware running NewTek IsoCorder™ applications



Tally:

• Hardware tally via HD15 GPI connector or network tally via NewTek NDI



Watermark:

• Optionally supports Skype logo watermark on output



Control Interface:

• Direct mouse and keyboard USB interface required



GPI:

• HD15 GPI connector



Reference:

• Genlock input supporting SD (Bi-level) or HD (Tri-level) and 4dBU audio reference level



Signal Monitoring:

• Integrated Waveform and Vectorscope, full field rate with digital calibration, color preview and support for ITU-R Rec. 601



Call Processing:

• Auto aspect ratio conversion, call quality monitoring and automatic failover to snapshot with audio when bandwidth falls below operator-defined preset



System Processing:

• Video: Floating Point, YCbCr A 4:4:4:4
• Audio: Floating Point, 96 kHzv



Standards:

• HD-SDI video conforms to SMPTE 292M
• SD-SDI video conforms to SMPTE 259M



NIC:

• 2 x 1 Gigabit NIC



System Fail-Safe:

• Multi-tiered fail-safe system and comprehensive system restore



System Physical:

• 1RU chassis with 180W PSU
• 19.0 x 1.75 x 16.75 in (48.3 x 4.5 x 42.5 cm) with rack ears attached
• 15 lbs (6.8 kg)





INCLUDED:

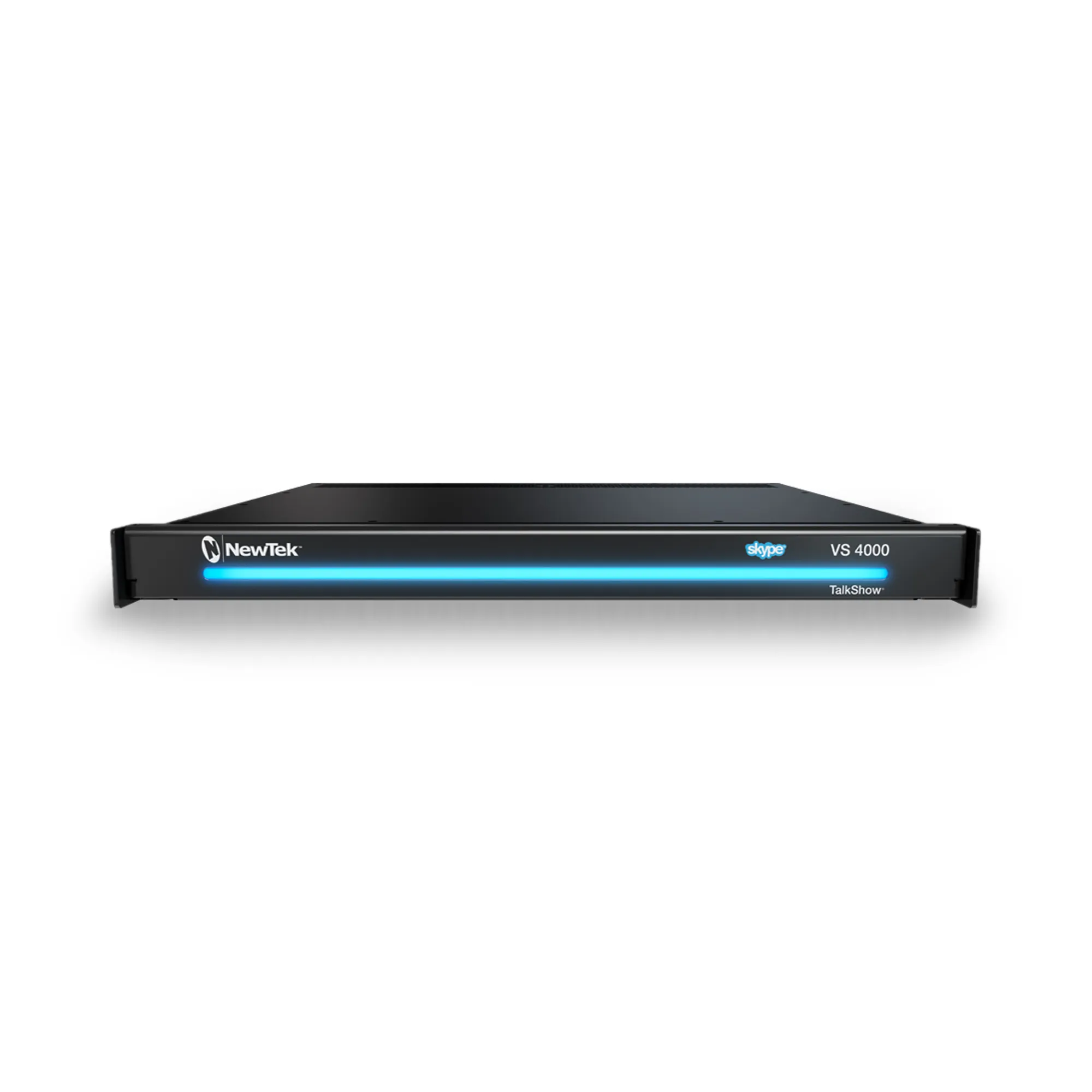

• (1) TalkShow VS 4000
