PN / ICRDSMMBK1 *

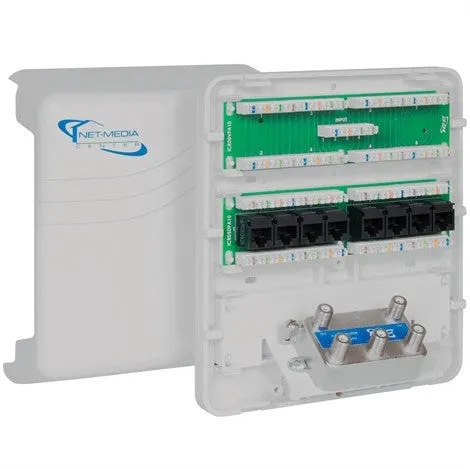

Mini Net Media Center

Overview

The Mini Distribution Center (MDC) is a structured cabling solution for multi-unit buildings, small homes and retrofit installations to existing homes.  This complete distribution system provides support for voice, data and video connectivity in one compact enclosure that fits small areas within the residence. Engineered for ease of installation, the surface-mounted MDC provides cable routing by providing cable access openings on both sides of the enclosure. The fully populated Mini Distribution Center provides distribution for up to 4 incoming lines to 8 telephone extension ports (4 x 8), 8 CAT 5e data ports and a 1 X 4 2GHz CATV splitter.

Features

• Provides excellent solution for condos, town homes, smaller homes, and for remodeling installations
• Designed to be surface mounted, and suitable for compact areas with flexible needs for distribution of voice, data, audio, or video with dual side access for easy cable entry and exit
• Includes 8-port telephone module, 8-port CAT 5e data module, and 2GHz 1X4 video splitter module
• 8-port telephone module is bridged, supports up to 4 incoming telephone lines with 8 outputs per each line
• 8-port CAT 5e data module exceeds ANSI/TIA-568-C connecting hardware requirements
• Includes three mounting screws
• Net Media. Center enclosure combos are not designed to be installed in firewall applications
• Complies with UL 1863, TIA-568-C, TIA-570-B and TIA-607 standards
