Product Details
＋
Features
-
High gain 3dBi dual-band for 868MHz and 915MHz
-
High efficiency vertical polarized monopole
-
Robust hermetic construction for outdoor usage and small compact size for indoor usage
-
Include easy-to-use magnetic support
-
CE RoHS certified
860-930MHz dual-band -3dBi Omnidirectional Indoor/Outdoor Antenna for LoRa,LoRaWAN LongFi and ISM applications.
Fully compatible with technologies, products and services by
Specification
| Frequency Range | 860-930MHz |
| impedance | 50Ω |
| VSWR |
1.5 @ 868MHz typical 1.5 @ 915MHz typical <2.2 max |
| Gain | 3dBi |
| Efficiency Maximum | 75% |
| Polarization | Linear Vertical |
| Radiation pattern | 360° Omni directional |
| Physical length | 295 mm |
| Radiator Material | Nickel Steel |
| Covering Material | ABS Black |

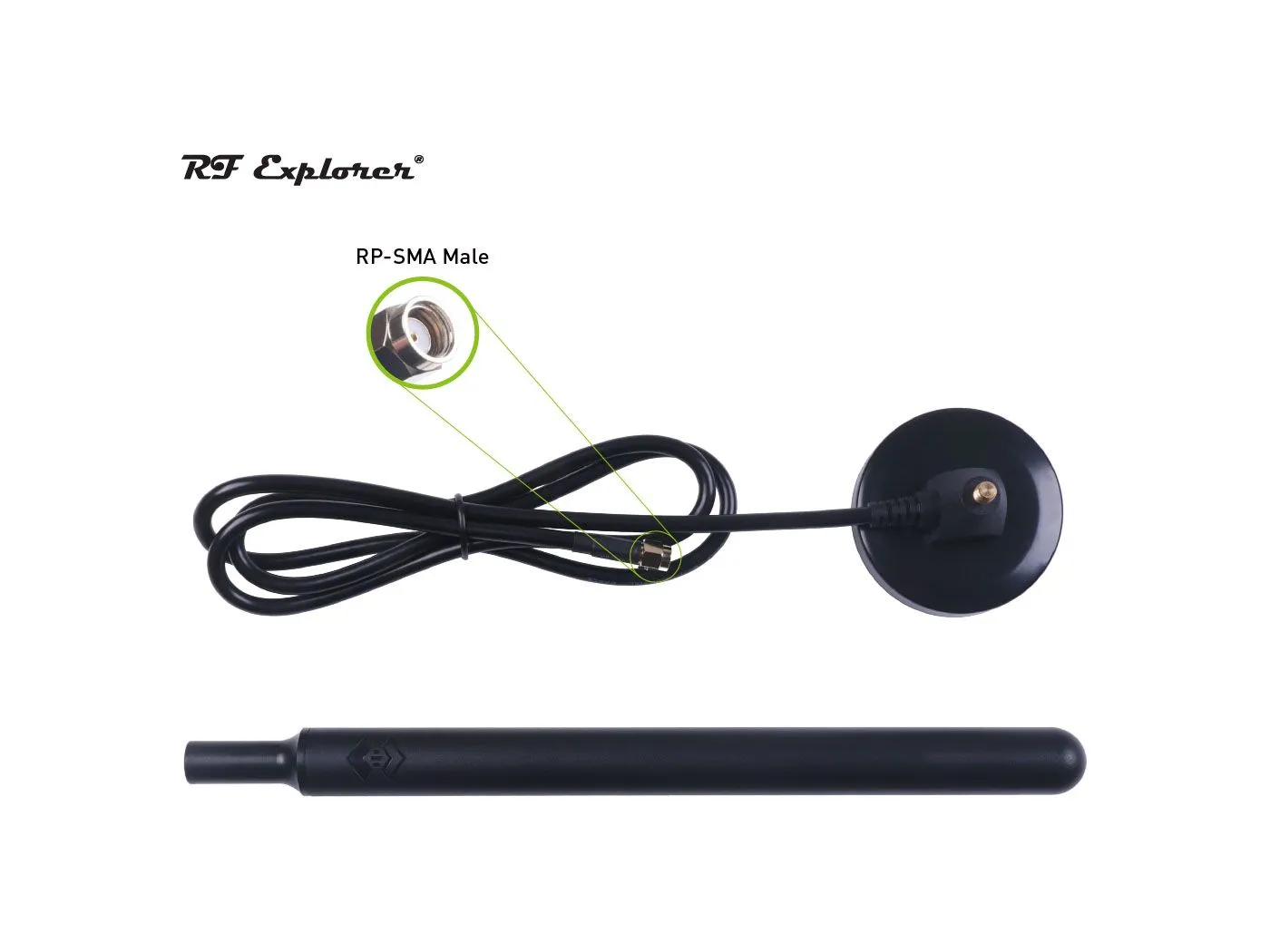

| Cable Connector | RP-SMA Male |
| Cable Type | RG-58 |
| Cable Length | 1000 mm |
| Temperature operation | -20℃ to 65℃ / -4℉ to 150℉ |
| Waterproof | IP65 |
VSWR
Antenna Gain
Antenna Efficiency
Radiation Pattern

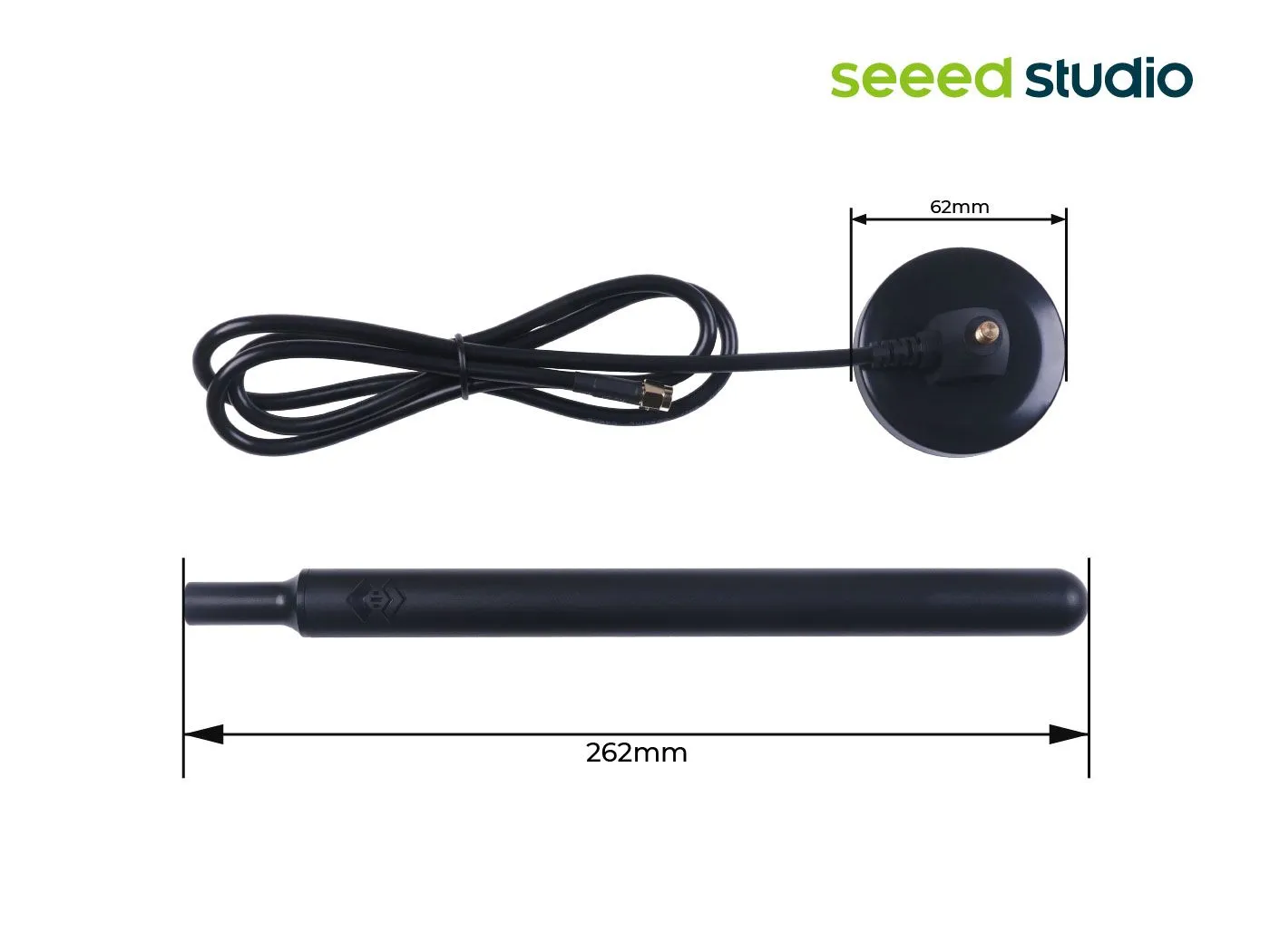

Dimension
Usage Scenario
ECCN/HTS
| HSCODE | 8517710000 |
| USHSCODE | 8517620010 |
| UPC |
