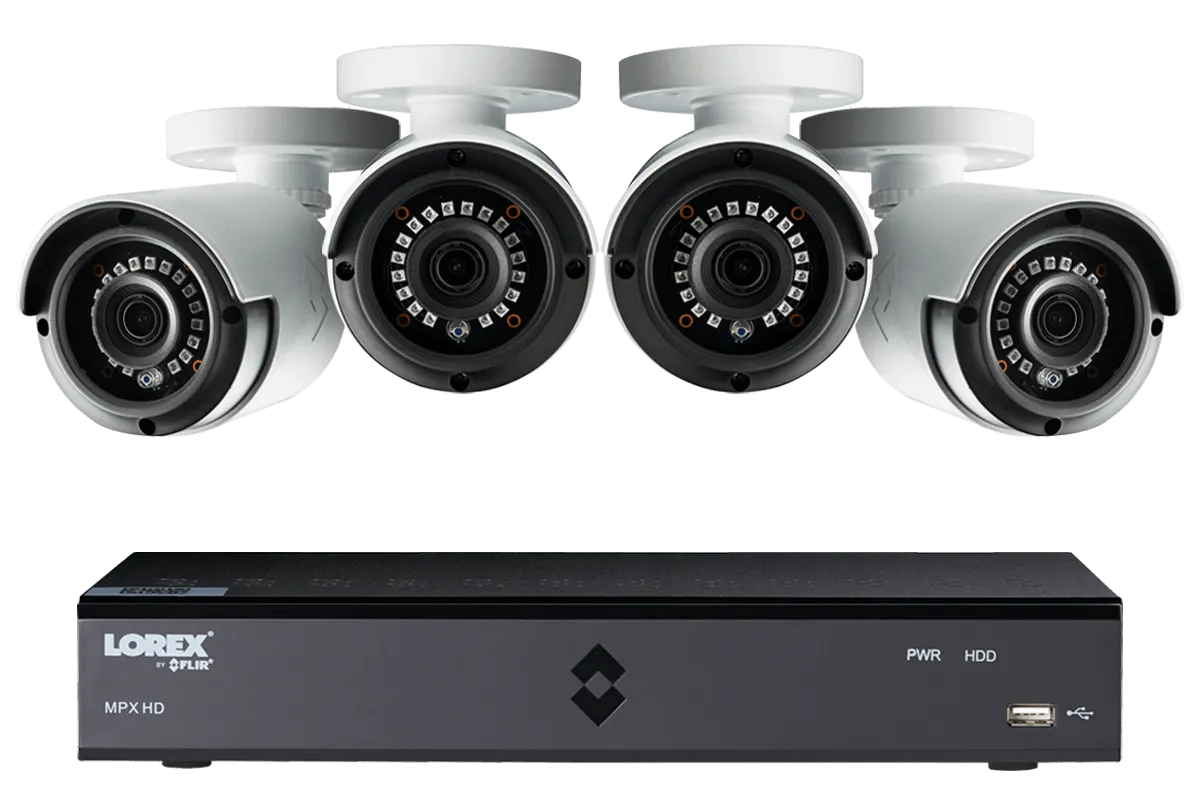

Gain that valuable peace-of-mind by owning this reliable and easy-to-install professional surveillance solution ideal for your home or small business. It features our powerful LHA2100 Series DVR paired with weatherproof 1080p surveillance cameras with long night vision capabilities. The included cameras and DVR are easily connected using RG59 siamese BNC cabling that provides both video and power, making for an straightforward and clutter-free set up.
LHA414P
SPECIFICATIONS
4
CHANNELS
1080P DVR can support 4 cameras
4
CAMERAS
4 HD 1080p security cameras
130FT
NIGHT VISION
Maximum night vision
1TB
HARD DRIVE
Maximum capacity 1 x 6TB hard drive
Works With
Lorex Cirrus™ App
1080p HD resolution
Experience the detail and clarity of stunning 1080p high definition security video. This quality of video resolution leaves nothing to question and can potentially be the difference you need to identify important details such as faces. In addition to this, you will receive extensive video coverage from each of the LAB223B surveillance camera thanks to their wide 83° angle lenses. These cameras also use a DNR (Digital Noise Reduction) feature and ClearNight imaging for improved image quality - day and night.
Easy BNC installation
This security camera system features a simplified installation process that will have you monitoring your property in no time. Each camera only requires a single siamese BNC cable to connect to the DVR. This all-in-one RG59 coaxial cables provides both video transmission and power up to 300ft. This means that the camera can be plugged in near the DVR, rather than having to find a plug near the camera. A single run of RG59 coaxial cable can extend the video signal up to 800ft / 242m for larger properties (camera will need to be plugged in directly at this distance).
Lorex Cirrus keeps you connected
Securely view your cameras from virtually anywhere in the world using the free Lorex Cirrus app for your mobile device. This app is full of convenient features that make monitoring your home easier than ever before. Receive push-notifications straight to your phone or tablet's home screen if one of your cameras detects motion or easily review past motion events using the easy-to-read history timeline.
Works With
All day - All night

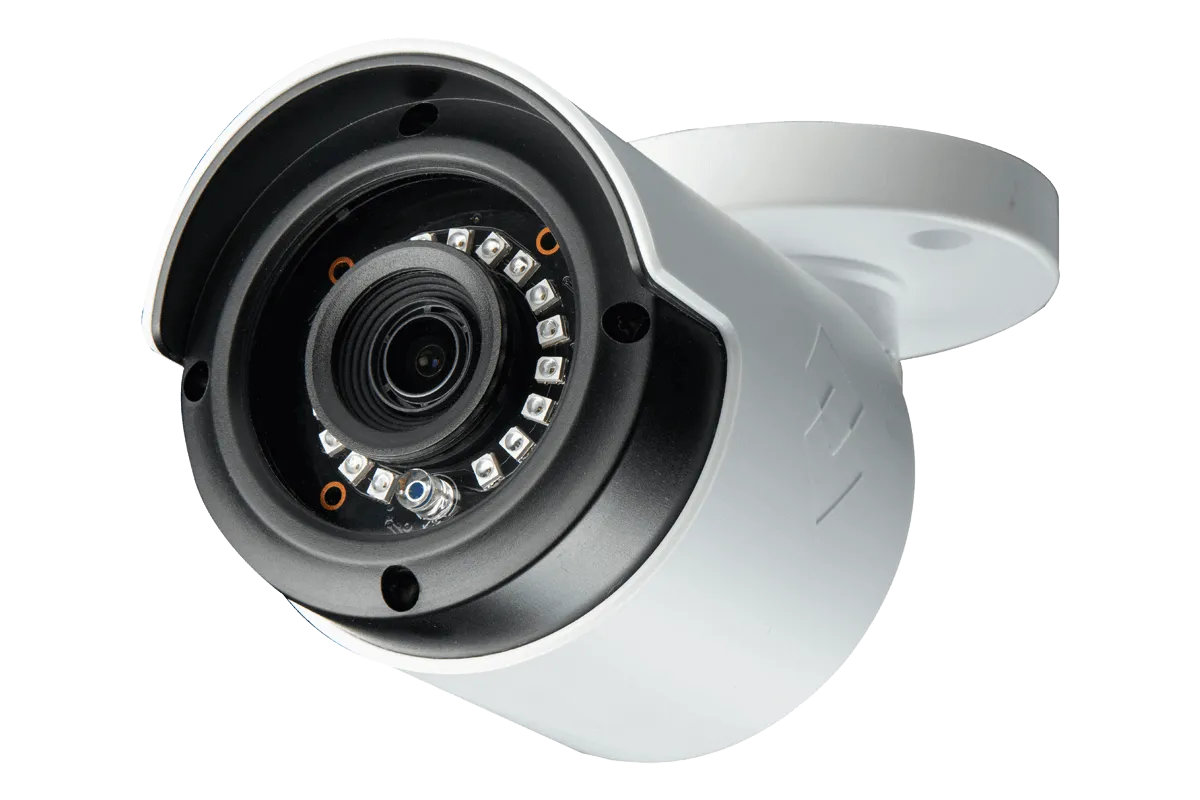

Lorex’s superior night vision technology will help keep you and your property safe through the night. Cutting edge infrared (IR) LEDs provide excellent performance in the dark, allowing you to clearly see up to 130ft / 40m in ambient lighting (and up to 90ft / 28m in total darkness). The LAB223B HD security cameras also feature SmartIR technology, which ensures close-up objects or people are not over-exposed from the infrared lights.

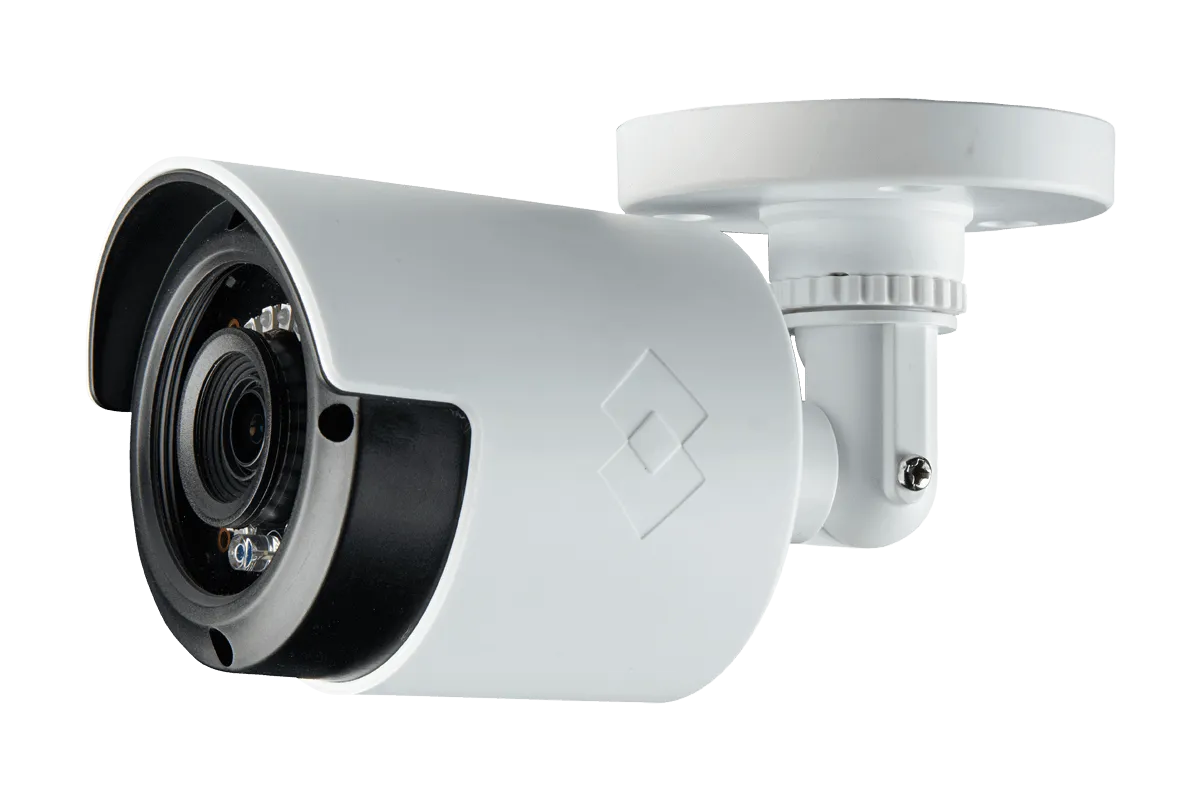

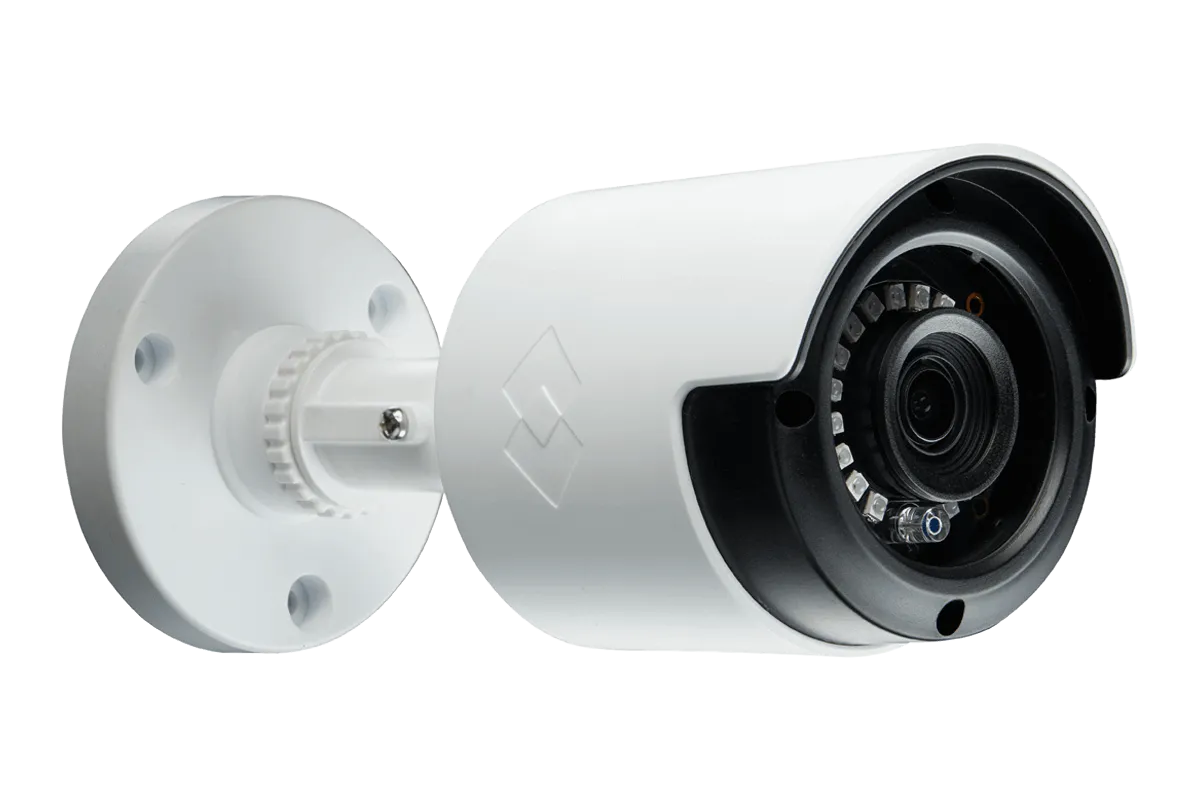

Indoor or Outdoor - it makes no difference
With an weatherproof rating, the surveillance cameras in this system are suitable for both indoor and outdoor installation. Versatile ceiling or wall mounting options allows them to be placed wherever you need them most. They are able to withstand the most unforgiving climates - your cameras will even continue to operate in extreme temperatures as low as -22°F (-30°C) and as high as 140°F / 60°C.
LAB223B
140°F | 60°C
Heat Rating
-22°F | -30°C
Cold Rating

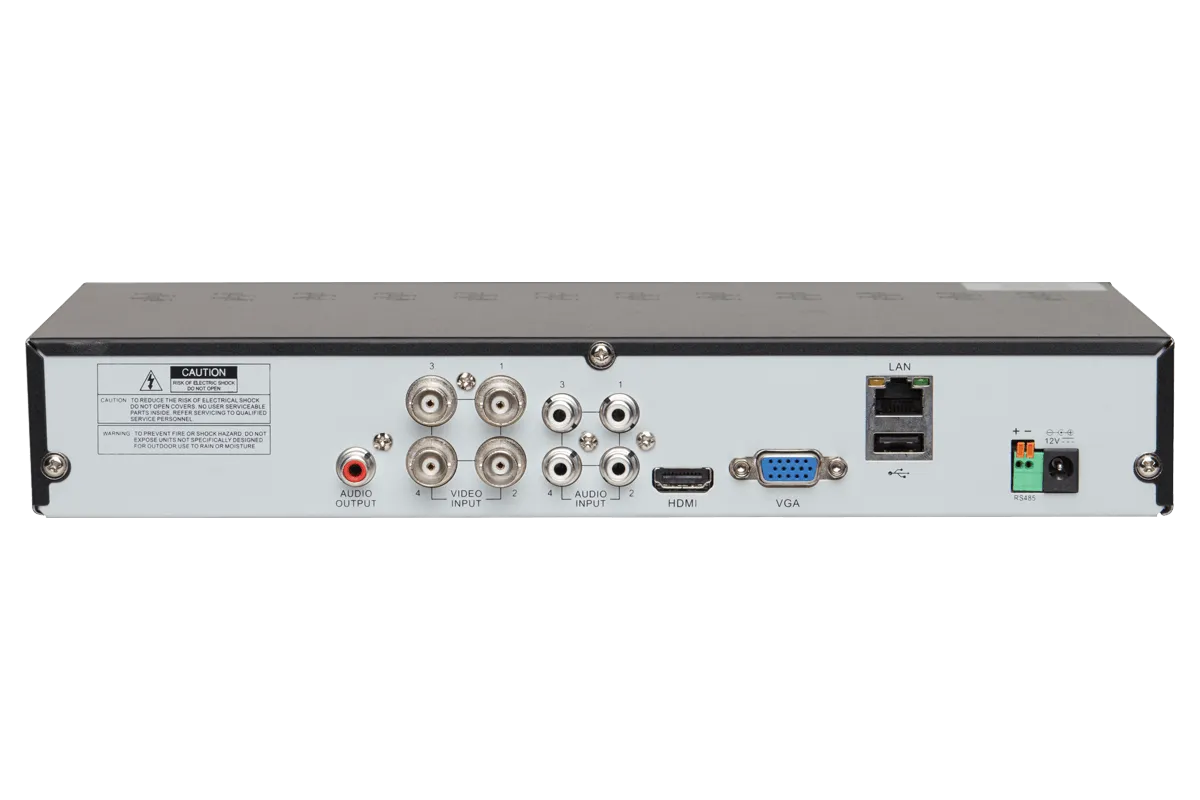

Reliable hard drive for maximum protection
The 4 channel version of this DVR includes a 1TB hard drive while the 16 channel model comes with a massive 2TB hard drive. This is not your regular hard drive, however. It is engineered to keep up with the demands of continuous surveillance monitoring. It can store days, weeks, or even months of security footage depending on your settings. DVR options, such as recording at a lower resolution, scheduled recording times, and motion-triggered recording, can save you storage space and extend your recording time.
| Recording | Full 1080p HD (1920x1080) | 720p HD (1280x720) | Analog 1080p HD (1920x1080) | 720p HD (1280x720) |
| Platform | 1080p HD NVR systems | 720p HD NVR systems | 1080p HD DVR systems | 720p HD DVR systems |
| Video | Digital IP / RJ45 connection | Digital IP / RJ45 connection | Analog BNC / RG59 connection | Analog BNC / RG59 connection |
| Power | PoE (Power over Ethernet) | PoE (Power over Ethernet) | Standard DC power | Standard DC power |
| Installation | Connect cameras to NVR or to router/LAN | Connect cameras to NVR or to router/LAN | Cameras require wired connection to DVR | Cameras require wired connection to DVR |
