Name: GPR system: Radarteam Cobra Plug-In GPR
SKU: 220275

Product Details ＋

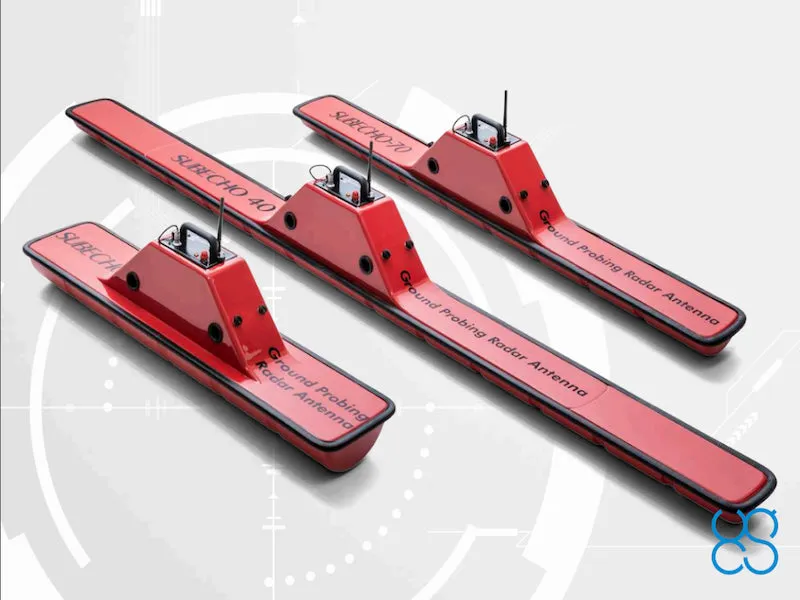

Low-frequency GPR system with 3 antenna options:

HS Code: 90158020 (meteorological, hydrological, geophysical instrument)

Type	Single-channel with unshielded antenna
Center frequency	SE-40: 52MHz SE-70: 80MHz SE-150: 124MHz
Operating bandwidth	SE-40: 15-105 (90 MHz) SE-70: 20-140 (120 MHz) SE-150: 20-280 (260 MHz)
Samples	512 per trace
Sample rate	2560 samples/second
Scan rate	5 scans/s
Sample output	16-bit digital raw data
Time range	SE-40: 1600ns SE-70: 1600ns SE-150: 800ns
Depth	Up to 20...30 meters depending on ground properties
Data format	Standard Geophysical SEGY Data Format (.sgy) with traces geotagging
DOCUMENTATION & DATA SETS
Data Sheet
User Manual
Data Samples
ENVIRONMENTAL
Temperature	-20°C to 50°C
Ingress protection	IP67
MECHANICAL
Size (L x W x H)	SE-40: 200 x 15 x 21 cm SE-70: 139 x 15 x 21 cm SE-150: 92 x 22 x 22 cm
Weight	SE-40: 5.2 kg SE-70: 4.9 kg SE-150: 4.6 kg
BATTERY

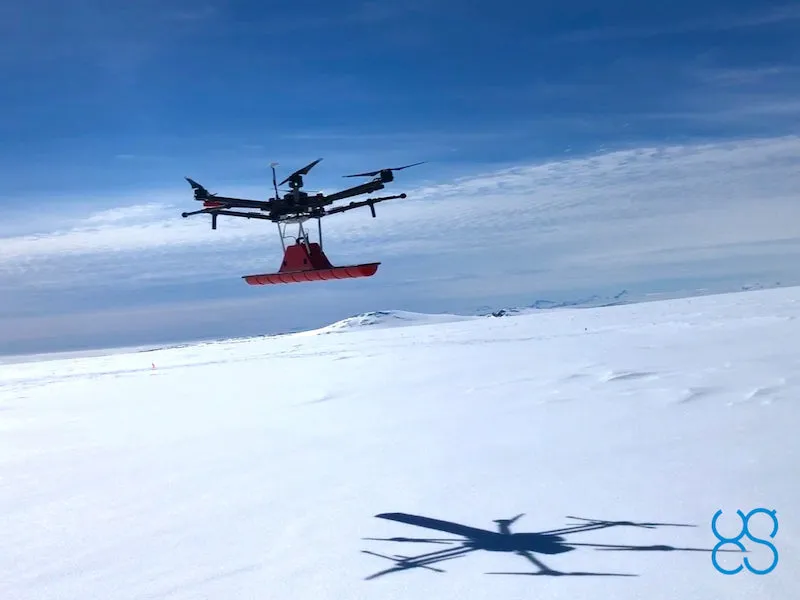

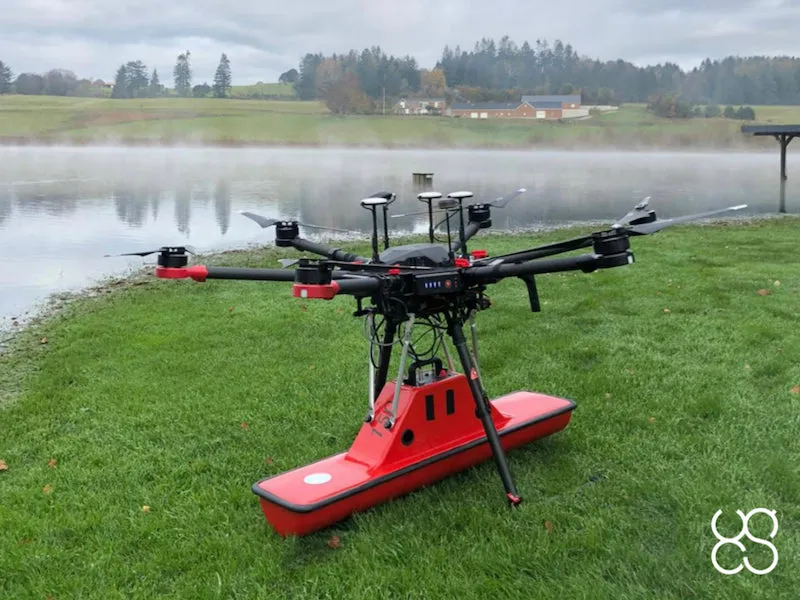

Airborne variant	Drone main battery is used to provide power to the GPR using standard power socket of the drone intended for payload
Ground surveys	Integrated battery 11.1 V/ 6.6 Ah, 73 Wh Li-Ion battery, operating time up to 12 hours
WHAT’S IN THE KIT
Cobra Plug-In GPR system (controller) Antenna (SE-40 or SE-70 or SE-150) Rugged tablet computer Rugged transport case Charger Prism2 data acquisition/post-processing software
