DSC LTE25ANT 25 Ft Indoor Outdoor Antenna Extension Kit

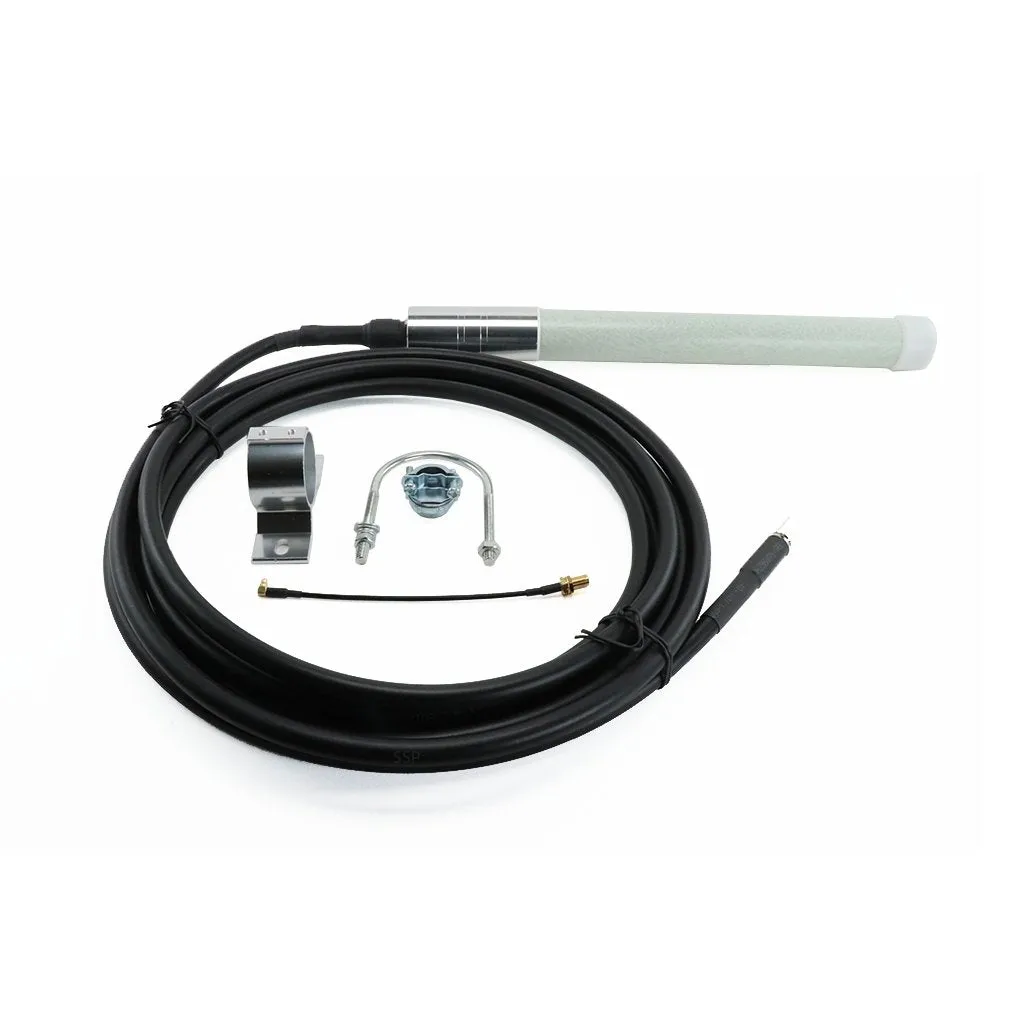

What you get:

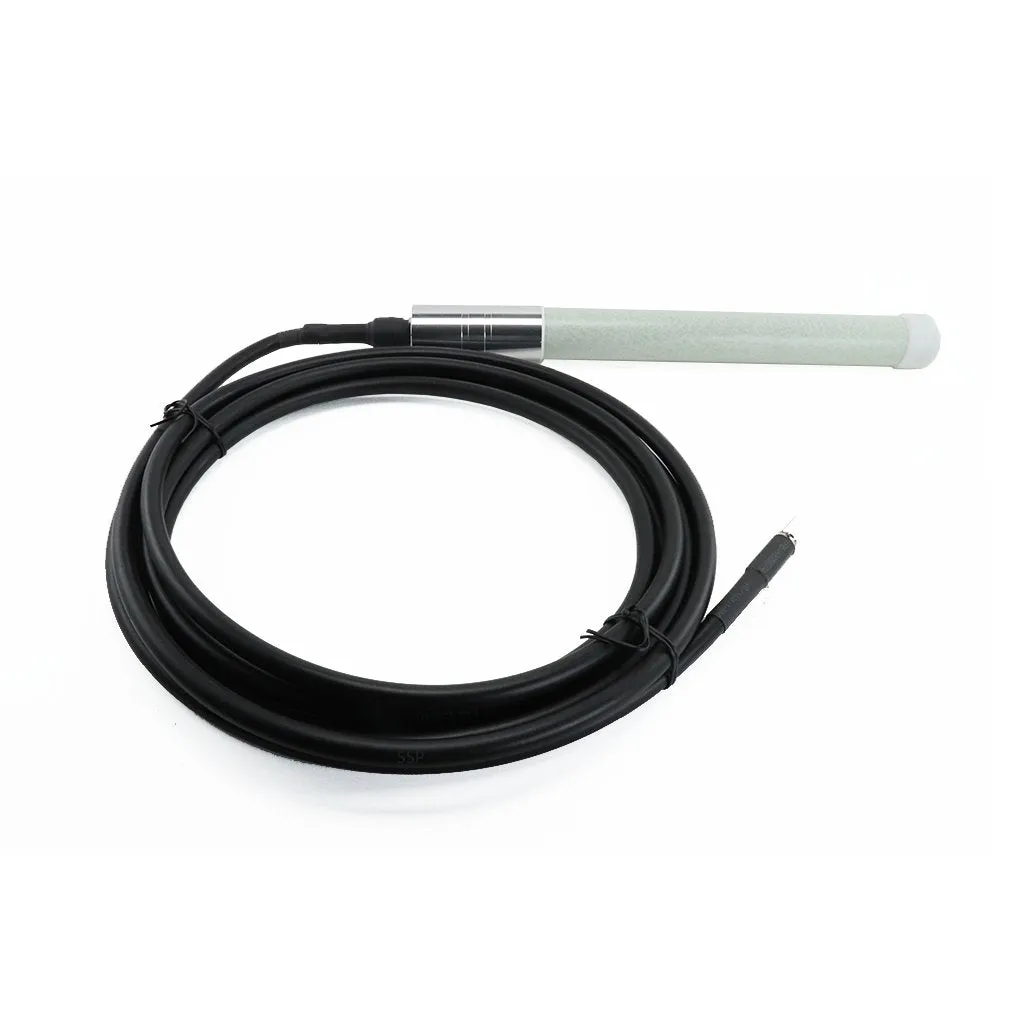

• Extension antenna with cable
• Wall-mount bracket
• U-bracket
• Brass adaptor
• Plug
• Clamp
• Cable tie wrap
• Antenna connector

If you have a DSC cellular communicator and aren't getting sufficient signal strength anywhere in the location you are mounting the communicator in then you most likely could benefit from this antenna extension kit.

This antenna gives your cellular communicator a 3dBi gain for signal strength. This is a 25 foot extension and mounts to most DSC 3G and 4G cellular communicators. You'll mount this antenna in a high spot of the building to give it extra reach.

Compatible models:

PowerSeries NEO: , 3G2080, , TL2803G, ,
PowerSeries: 3G2060, TL2603G, TL260GS, GS2060
Alexor: TL265GS, GS2065
Impassa: 3G2055, GS2055, TL2553G, 3G2077
Universal: 3G4000, 3G4010, 3G4010CF, , LE4010, LE4010CF, LE4010ECF

Specifications:

Type: LTE/3G/2G
Gain: 3dBi
Polarization: Linear Vertical
Frequency Range: 698 ~ 2700MHz
Azimuth Beam Width: Omni-directional
Radiating Element: 1/4 Wave Helical
Admitted Power: 100W
Elevation Beach Width: 3dB
VSWR (max.): 2.0
Impedance: 50 ohm
Antenna Length/Diameter: 333mm
Antenna Diameter: 35mm
Cable Type: 7D-FB
Cable Length (Ft/m): 25'/7.62m
Connector: RP-SMA
Operating Temperature: -40°C to 80°C
Storage Temperature: -30°C to 70°C
