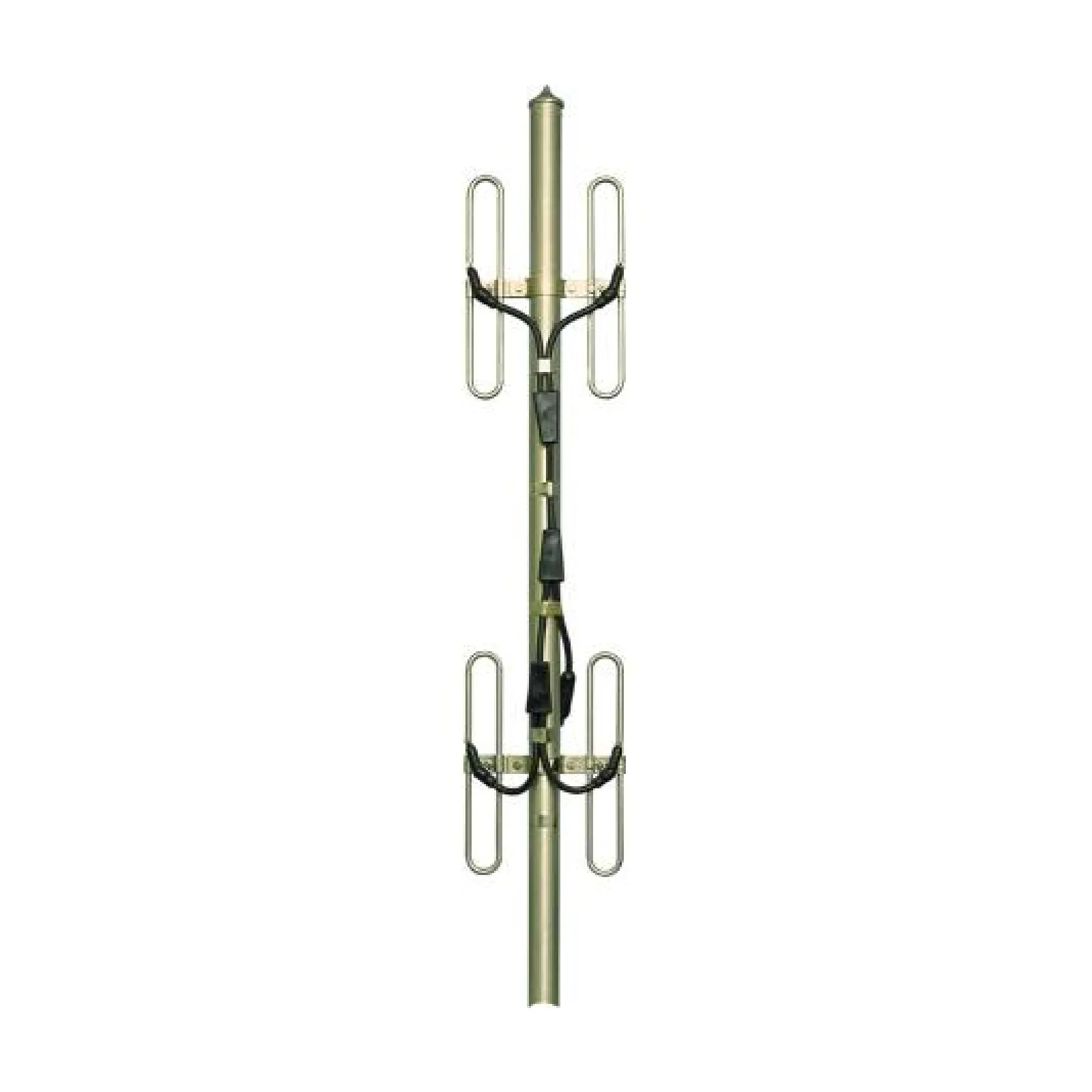

CommScope DB404-B (66392)

Omnidirectional exposed dipole antenna operates in the 450-470 MHz frequency range, UHF, 3.8 dBd gain, 250W power input, and is terminated with an N Male at the end of a flexible lead. Included with the antenna is a DB365-OS pipe mounting kit for 1.25-3.5 in OD round members. It also features broad response, ideal for duplex operations, is extremely rugged, has an extra heavy-duty construction, and is moisture and lightning resistant.

• UHF Antenna
• Tuned Freq. (MHz) 450-470 MHz
• Gain (dBd) 3.8 dBd
• Gain (dBi) 5.9 dBi
• Connector Placement Pigtail
• Antenna Pattern Omnidirectional
• Lightning Protection DC Ground
• Horizontal Beamwidth 360 deg
• Vertical Beamwidth 27 deg
• Jumper included Yes
• Maximum Input Power (Watts) 250 watts
• Maximum VSWR 1.5:1
• RF Connectors N Male
• Polarization Vertical
• Maximum Rated Wind Velocity (MPH) 100 MPH
• Weight 14 lbs
• Length 60 in

WARRANTY

*1-year manufacturer's warranty. No further discounts are available.
