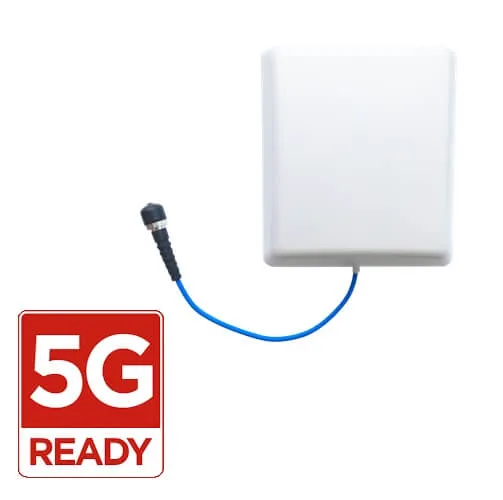

The Blackhawk Indoor Wall Mount Antenna is designed to operate with all mobile carriers in mind regardless of what frequency they operate on.
Offering a 7dB gain this antenna is suitable as an indoor antenna or panel antenna that can be mounted on a wall for repeater applications.
| Connector | N | 4.3-10 DIN Female |
| Dimensions | 180x158x60 mm |
| Weight | 0.4kg |
| Reflector Material | Aluminium |
| Radome Material | ABS (UV Stabilized) |
| Operating Temperature | -40°C to 65°C |
| Frequency Range MHz | 698-806 | 806-960 | 1960-2700 | 3300-4000 |
| Gain dBi | 5.0 | 6.0 | 8.0 | 7.0 |
| VSWR | ≤2.0 | ≤2.0 | ≤1.7 | ≤1.7 |
| Polarization | Vertical | |||
| PIM 3rd Order 2x20W | ≤-150 dBc | |||
| Front to Back Ratio | ≥8 dB | ≥9 dB | ≥14 dB | ≥10 dB |
| Horizontal Beam-width | 92° | 90° | 65° | 55° |
| Vertical Beam-width | 73° | 68° | 60° | 35° |
| Input Impedance | 50 Ω | |||
| Max. Input Power | 50 W | |||
| Lightening Protection | DC Ground | |||
| Weight | 0.4 kg |
|---|
