| Package Weight | 1.3 kg |
|---|
Product Details
＋

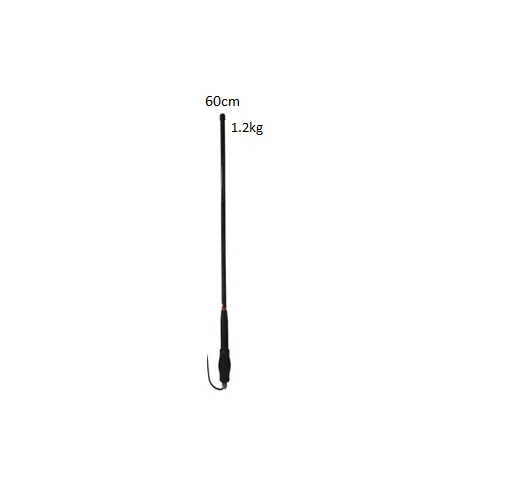

This premium grade antenna will satisfy 3G and 4G capabilities for all the major networks in Australia and can be used for commercial and industrial 3G and 4G applications. The Blackhawk Omni Trucker Edge Compact LITE at 60cm will provide the perfect solution for voice and data applications. It is lighter in weight than its sister antenna the Trucker Edge Compact, weighing only 1.2kg. The new design includes a smaller barrel which helps reduce weight and minimises vibration and subsequent damaged caused by driving on corrugated roads found in remote and harsh environments.
Features:
- Streamline in design and light in weight
- SMA-Male connector
- Ruggedized construction for extreme conditions.
- Can be mounted to car bonnet or bullbar
ELECTRICAL SPECIFICATIONS
| Frequency Range MHz | 698-960 | 1710-2170 |
| Gain dBi | 4 | 5 |
| VSWR | ≤ 2.0 | ≤ 2.0 |
| Polarization | Vertical | |
| Horizontal Beam-width | 360° | |
| Vertical Beam-width | 48° | 29° |
| Input Impedance | 50 Ω | |
| Max. Input Power | 50 W | |
| Lightening Protection | DC Ground | |
Mechanical Specifications:
| Connector | SMA-Male with 4.5m Coax Cable |
| Dimensions | ᴓ16 x 600 mm |
| Weight | 1.2 kg |
| Reflector Material | Copper |
| Radome Material | Fibreglass |
| Antenna Colour | Black |
| Operating Temperature | -40°C to 65°C |
| Mounting Pole | ᴓ38 - ᴓ52mm |
