Product Details

*NOW INCLUDES A MORE ROBUST THREAD BETWEEN WHIP AND SPRING BASE*

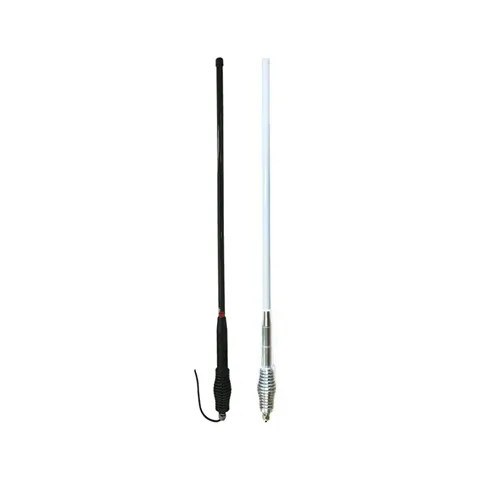

The Blackhawk Omni Trucker Edge Antenna (1070mm) will provide the perfect solution for voice and data applications where high gain antennas are required while on the move. Combine with Cel-Fi applications to never be out of contact when away from home.

ELECTRICAL SPECIFICATIONS

Frequency Range698-960 MHz / 1710-2170 MHz
Input Impedance50 Ω
Peak Gain6 / 8 dBi
VSWR≤3.0:1 / ≤2.0:1
PolarisationVertical linear
Horizontal Beam-width360° (omni-directional)
Vertical Beam-width22 / 12°
Maximum Input Power50 W

Future-proof your vehicle installations with this high grade ruggedised Omni Trucker Edge antenna. This premium-grade cellular antenna will satisfy 3G and 4G capabilities for all the major networks in Australia and can be used for commercial and industrial 3G and 4G applications.

FEATURES

  • 6 dBi gain across lower bands 698-960 MHz
  • 8 dBi gain across upper bands 1710-2170 MHz
  • The option of white or black antenna
  • Ruggedised construction for extreme conditions
  • Extra heavy-duty spring stainless steel base ideal for bull bar mount
  • Included is 4 metres of LMR240 Ultra Flex cable fitted with SMA/M connector
  • No tuning necessary
  • Bracket additional
Height1070mm
Weight1.5kg
Operating Temperature-40°C- 70°C
TerminationSMA – male
MaterialGlass/Steel
Dimensions1070 x Ø32.5 mm
Antenna ColourBlack or white
Rated Wind Velocity210 km/h
Diameter of installing pole32.5mm

Weight2.5 kg
Colour

Black White

Blackhawk Trucker EDGE Antenna 6/8dBi
  • Black
  • White

$ 54.29

$ 41.76
