Future proof your installations with this high grade ruggedised wide-band omni-antenna. This premium-grade cellular antenna will satisfy 3G and 4G capabilities for all the major networks in Australia.
The Blackhawk Wideband Omni MIMO Antenna will provide the perfect solution for voice and data applications where IoT M2M and MIMO data connection is required for fast internet. Perfect for mobile broadband internet applications. Construction suited to extreme climate applications.
| Frequency Range | 698-960/ 1710-2700MHz |
| Impedance | 50 |
| VSWR | ≤2.5 / ≤2.0 |
| Gain | 2.5/ 4dBi |
| Max Input Power | 100W |
| Polarisation | Vertical |
| Horizontal Beamwidth | 360° |
FEATURES:
- 2.5 dBi gain across lower bands 698-960 MHz
- 4 dBi gain across upper bands 1710-2700 MHz
- Ruggedised construction for extreme conditions
- UV-stable PVC construction
- Stainless steel mounting clamp included

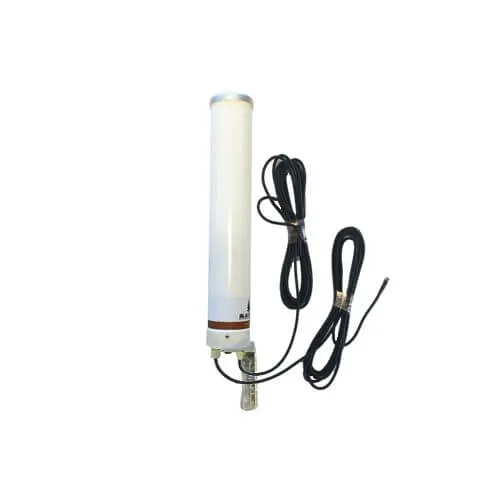

- Includes two 5m RG58 cables pre-fitted with SMA male connectors
- Ideal for high speed 4G LTE applications.
| Dimensions | 63 x 380mm |
| Weight | 1.00 kg |
| Operating Temperature | -40°C 65°C |
| Connector | 2*SMA – male |
| Material | Copper/ UV-PVC |
| Antenna Colour | White |
| Mounting Pole | X38-X52 mm |
