Blackhawk M2M Puck Antenna 3G/4G/WiFi GPS
Blackhawk M2M Puck Antenna 3G/4G/WiFi GPS
  • Blackhawk M2M Puck Antenna 3G/4G/WiFi GPS
Product Details ＋

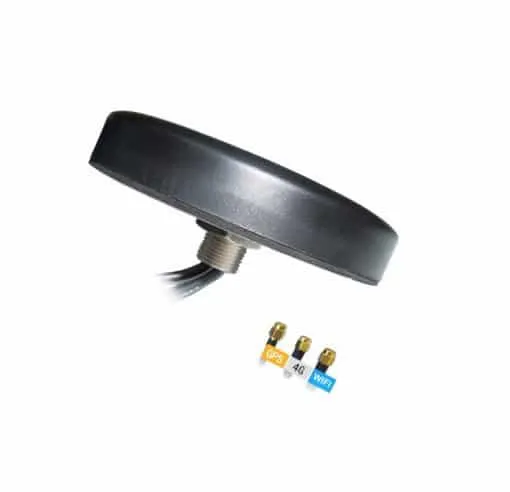

The Blackhawk low profile antenna for GSM/3G/LTE/WIFI/GPS is an omni-directional antenna designed for mission critical M2M and IoT applications.

FEATURES:

  • Provides a 2dBi gain across 700 to 2700Mhz
  • Supports cellular 698-2700 MHz Wi-Fi 2.4GHz and GPS
  • IP66 rated
  • Compact low profile design without compromising on performance
  • Stud Mount
  • Low Loss RG174 3m cable with SMA Male connectors
  • Antenna has a diameter of 80mm with a height of 15mm

SPECIFICATIONS

Electrical

GPS Part:
Frequency Range1575.42MHZ±3 MHz
V.S.W.R1.5:1
Polarization TypeRHCP
Impedance50Ω
LNA Gain28±2dB Typical
Noise Figure1.5dB
DC Voltage2.2-5.0V
DC current5-15mA
WIFI Part:
Frequency range2400-2500MHz
V.S.W.R2.0:1
Gain3dB
LTE Part:
Frequency range698-960MHz，1710-2700MHz
V.S.W.R2.0:1
Gain2dBi

Mechanical

HousingBlack
CableRG174
Length3M
Connector3xSMA Male
Working Temp-40℃~ 85℃
Humidity55%-75%RH
WaterproofIP67
Antenna Radome MaterialABS
Mount wayScrew
Antenna DimensionФ80×15 mm
Weight150g
RoHS CompliantYES

Weight0.2 kg
