| GPS(GLONASS): | |
| Frequency Range | 1575.42Mhz ± 3 /1602-1610MHz |
| V.S.W.R | 2.5 |
| Polarization Type | RHCP |
| Impedance | 50Ω |
| LNA Gain | 28±2dB Typical |
| Noise Figure | 1.5dB |
| V.S.W.R | ＜2.0 |
| DC Voltage | 2.2-5.0V |
| DC current | 5-15mA |
| WIFI | |
| Frequency range | 2.4/5GHZ |
| V.S.W.R | 2.5 |
| Gain | 3dBi |
| Polarization | Linear |
| Impendance | 50Ω |
| GSM3G/LTE | |
| Frequency range | 698-960MHz 1710-2700MHz |
| V.S.W.R | 2.0:1 |
| Gain | 3dBi |
| CHARACTERISTICS | |
| Housing | Black |
| Cable | RG174 (GPS) RG58U(WiFi/ LTE) |
| Length | 3m |
| Connector | SMA Male (LTE/GPS) RP-SMA (WiFi) |
| Working Temp | -40℃~ 85℃ |
| Humidity | 55%-75%RH |
| Waterproof | IP67 |
| Antenna Radome Material | ABS |
| Mount way | Screw |
| Antenna Dimension | Ф143.6×65 mm |
| Weight | 1.2KG |
Product Details
＋

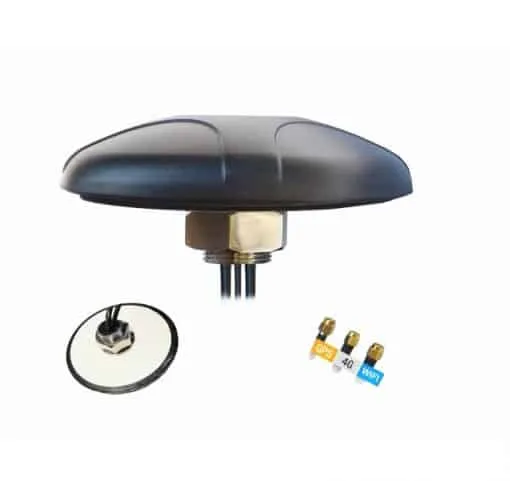

The Blackhawk low profile antenna for GSM/3G/LTE/WIFI/GPS is an omni-directional antenna designed for mission critical M2M and IoT applications.
FEATURES
- Provides a 3dBi gain across 700 to 2700Mhz
- Supports cellular 698-2700 MHz Wi-Fi 2.4/5GHz and GPS / GLONASS
- IP67 rated
- Compact low profile design without compromising on performance
- Stud Mount or optional bracket mount
- Low Loss RG58 3m cable with SMA Male connector
- Antenna has a diameter of 143.6mm with a height of 65mm
| Weight | 0.9 kg |
|---|
