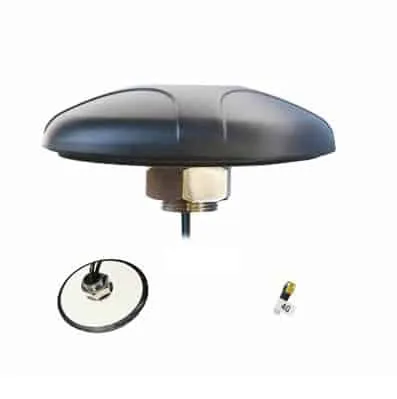

Blackhawk M2M Low Profile Antenna 3G/4G
Blackhawk M2M Low Profile Antenna 3G/4G
  • Blackhawk M2M Low Profile Antenna 3G/4G
Product Details ＋

The Blackhawk low profile antenna for GSM/HSPA/LTE is an omni-directional antenna designed for mission critical M2M and IoT applications.

FEATURES

  • Provides a 5dBi gain across 700 to 2700Mhz
  • Supports 698-2700 MHz
  • IP67 rated
  • Compact low profile design without compromising on performance
  • Stud Mount or optional bracket mount
  • Low Loss RG58 3m cable with SMA Male connector
  • Antenna has a diameter of 143.6mm with a height of 65mm

SPECIFICATIONS

Frequency Range698-2700MHz
Gain5dBi
V.S.W.R≤1.8
RadiationOmni-direction
PolarizationVertical
Maximum Input Power50W
Impedance50Ώ
ConnectorSMA Male
Cable TypeRG58U
Cable Length 3m
Antenna Radome MaterialPC/ABS
Mount wayScrew/Stick
DimensionsΦ143.6×65mm
Weight1.2KG
Operating Temperature -40℃ to 70℃
RoHS CompliantYES
Weight0.7 kg

Blackhawk M2M Low Profile Antenna 3G/4G
  • DefaultTitle

$ 66.57

$ 51.21

Please select combo product attributes
The combo subtotal is $,SAVE$
Unavailable
