Product Details
＋
OREI UHD-808VW: 8x8 4K Matrix with Video Wall controller
Key Features:
- HDMI 2.0, HDCP 2.2 compliant
- Video resolutions up to 4K@60Hz and 2k@60Hz
- 18Gbps video bandwidth

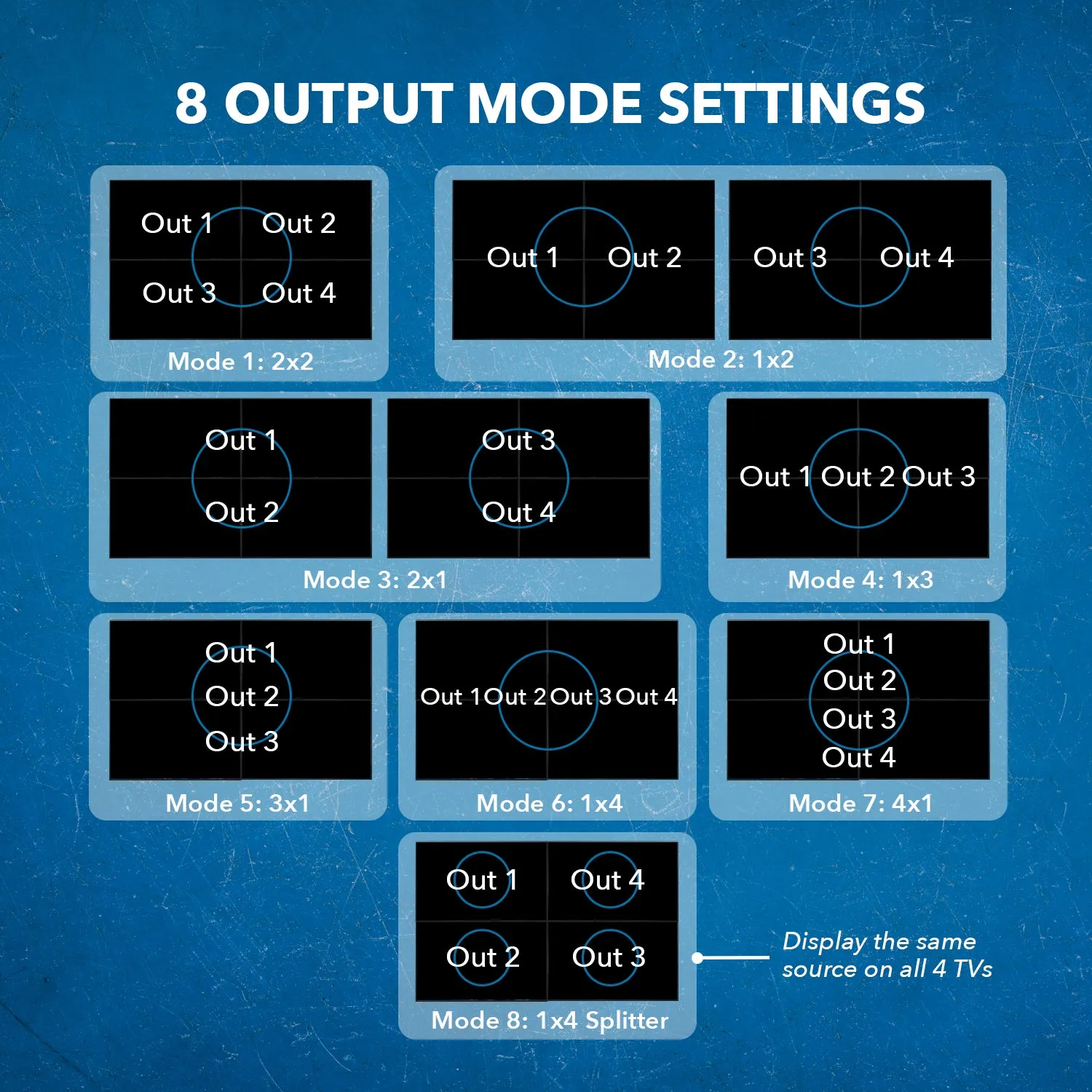

- Multiple video wall modes including 4x2 and 2x2.
- IR and Audio matrixing
- RS-232 and TCP/IP control

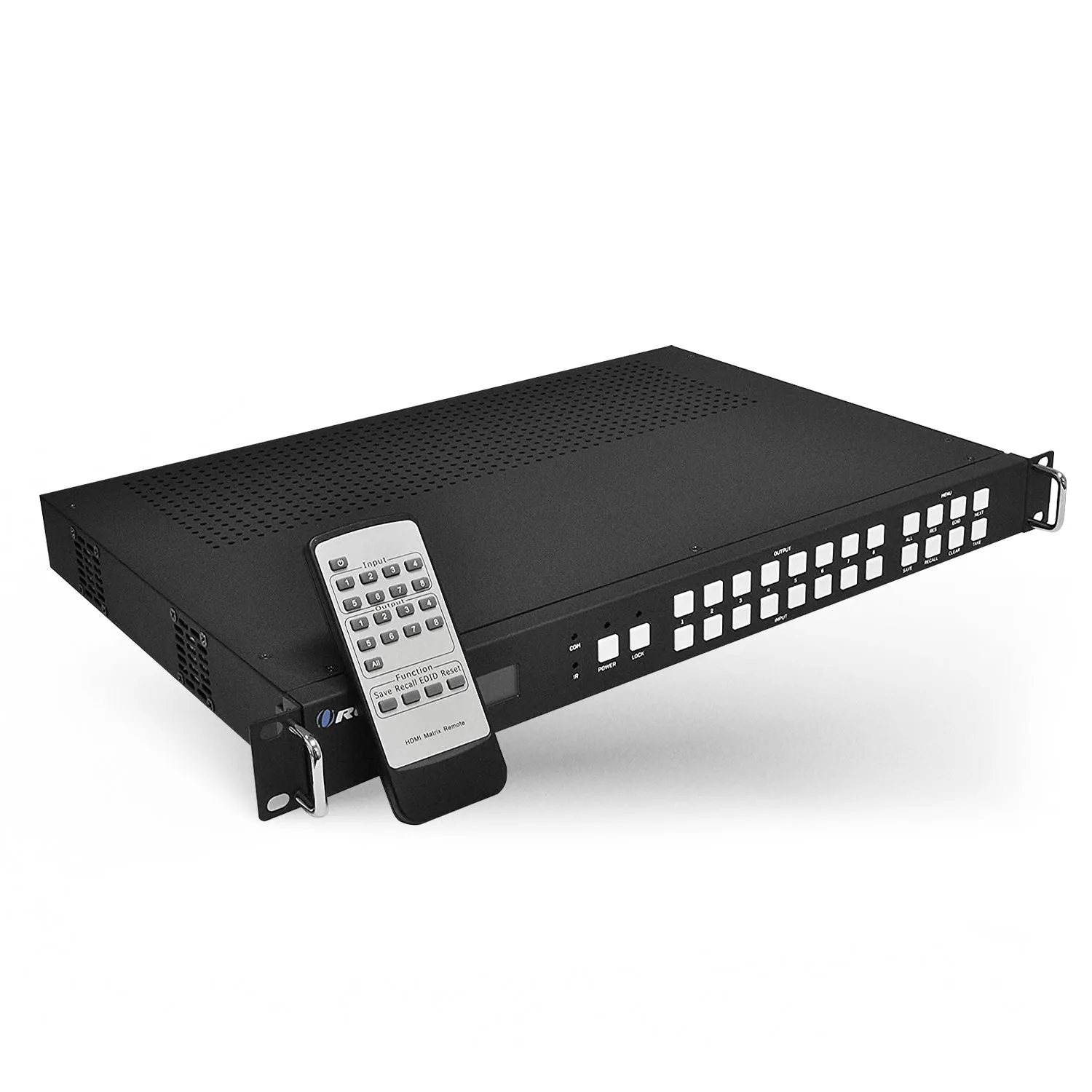

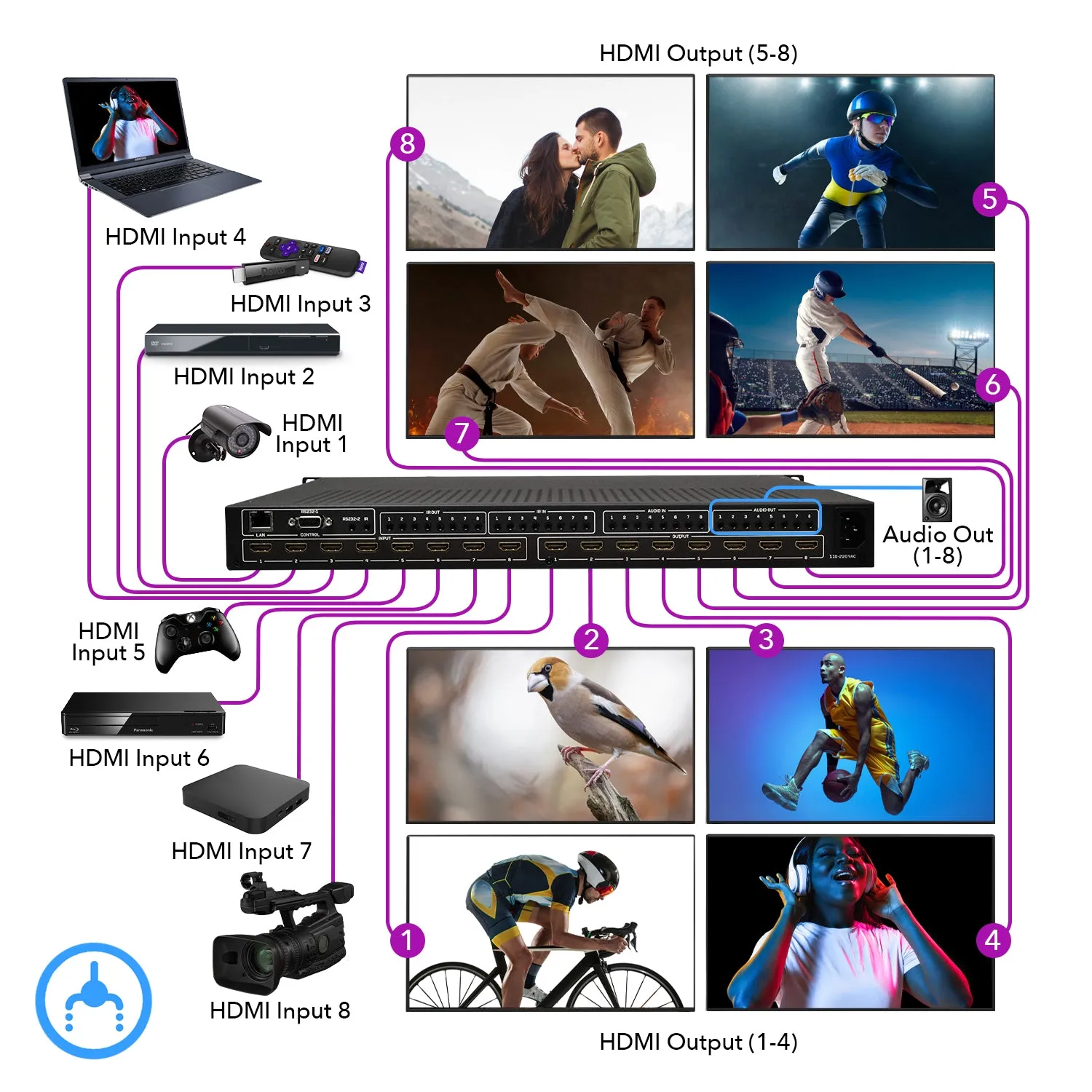

The UHD-808VW is an HDMI Matrix switch featuring a professional video wall controller function. It connects up to 8 media devices to 8 displays or creates impressive video walls. Supporting video resolutions up to 4K@60Hz, it is HDMI 2.0 and HDCP 2.2 compliant with an 18Gbps video bandwidth. You can configure multiple video wall setups, including 4x2 and two 2x2 walls. It also offers IR and audio matrixing. Control is easy via RS-232 or TCP/IP using the WebGUI or the included software. Perfect for any commercial setup.
[shortdes]
-
8x8 Matrix switch with video wall functionality
-
18 Gbps video bandwidth with video resolutions up to 4K@60Hz and 2k@60Hz
-
Multiple video wall modes including 4x2 and 2x2
[/shortdes]
[tab]
CONNECTIVITY
| INPUT: | 8 × HDMI [Type A, 19-pin female] | |
| 8 × L/R [3.5mm Stereo Mini-jack] | ||
| OUTPUT: | 8 × HDMI [Type A, 19-pin female] | |
| 4 × L/R OUT [3.5mm Stereo Mini-jack] | ||
| CONTROL: | 1 x LAN [RJ45, 8-pin, female] | |
| 1 × RS-232 [DB-9 connector] | ||
| 1 × RS-232 [3.5mm Stereo jack] | ||
| 1 × IR EXT [3.5mm Stereo jack] | ||
| 8 × IR IN [3.5mm Stereo Mini-jack] | ||
| 8 × IR OUT [3.5mm Stereo Mini-jack] |
PACKAGE CONTENTS
| 1x UHD-808VW |
| 1x Remote |
| 4x IR Blaster Cable |
| 4x IR Receiver Cable |
| 1x CAT6 cable |
| 1x USB to RS-232 cable |
| 1x AC Power cord |
| User Manual |
SUPPORTED HDMI CABLES
| HDMI 2.0 / 2.1: | We recommend using high-quality HDMI 2.0 / 2.1 cables under 30 feet for optimum performance |
EXTENDING DISTANCE
| 4K@60Hz: | 30 Feet |
VIDEO OUTPUT
| Video Bandwidth: | 18 Gbps |
| Video Resolutions: | Up to 4K@60Hz, 2k@60Hz |
ADDITIONAL FEATURES
| CEC: | No |
| ARC: | No |
| USB KVM: | No |
| PoC/PoE: | No |
| IR Control: | Yes |
| Downmix: | No |
| Downscale: | No |
| Over IP: | No |
| HDBaseT: | No |
| RS-232: | Yes |
AUDIO SUPPORT
| HDMI Audio Formats: | PCM 2.0 |
| 3.5mm Analog Audio Formats: | PCM 2.0 |
COMPLIANCES
| HDMI Compliance | HDMI 2.0 |
| HDCP Compliance | HDCP 2.2 |
POWER
| Power Consumption: | 100W (Max) | |
| Power Supply: | Input: AC 110-240V 50/60Hz |

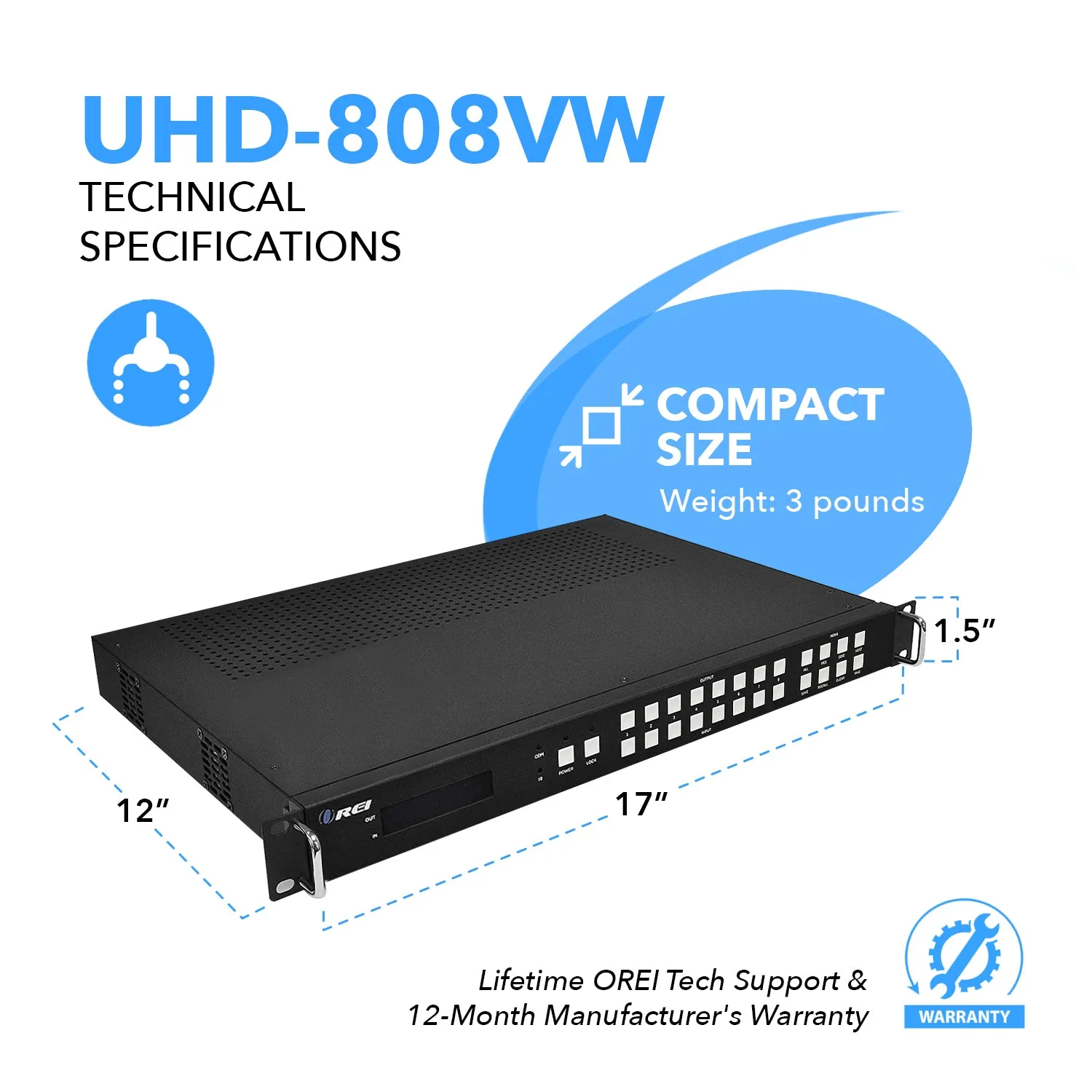

DIMENSIONS & WEIGHT
| Length: | 430mm / 16.93in | |
| Width: | 300mm / 11.81in | |
| Height: | 44mm / 1.73in | |
| Weight: | 5kg / 11.02lbs |
PROPERTIES
| Color: | Black |
| Housing: | Metal Enclosure |
WARRANTY
| 1-Year Manufacturer's Warranty |
[/tab]
