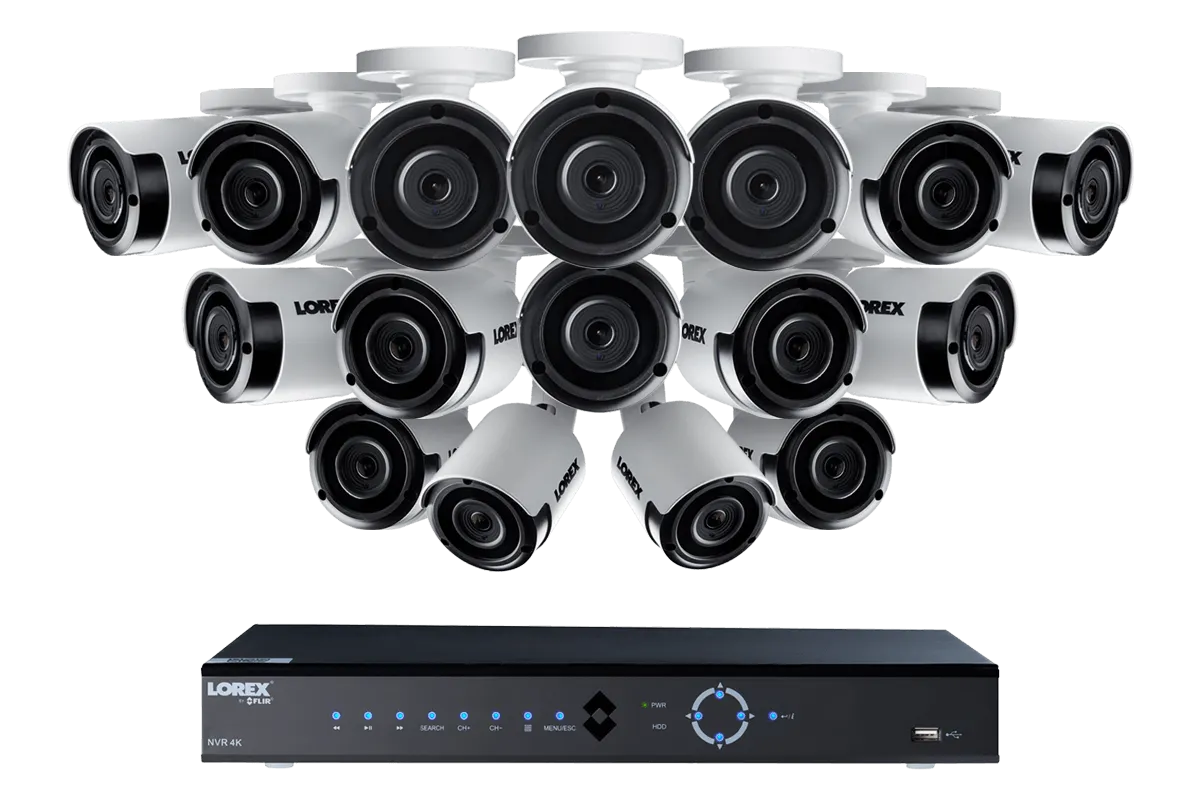

Leave nothing to the imagination with this professional grade security camera system from Lorex. It features our top-of-the-line LNK7000 Series network video recorder (NVR) and 4mp (megapixel) LKB343B IP bullet security cameras with revolutionary color night vision capabilities. There's room to grow with this security camera system as well. With open channels available on your 4K capbale NVR, this system is perfect for adding 4K security cameras to help you monitor your growing business or factory.

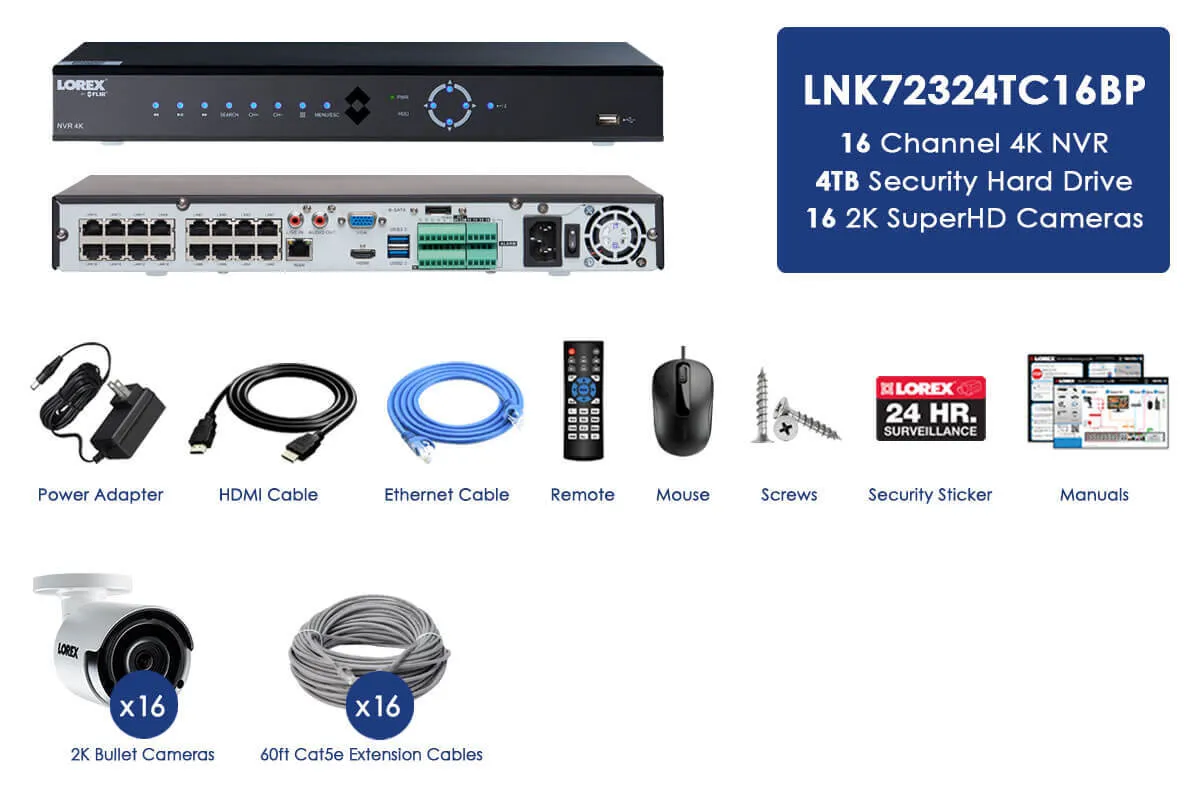

LNK72324TC16BP
SPECIFICATIONS
16
CHANNELS
Expandable to 32 channels with a 16-Ch PoE Switch
16
CAMERAS
16 bullet 2K 4MP IP cameras
130FT
NIGHT VISION
Maximum night vision with
4TB
HARD DRIVE
Maximum Capacity 2 x 6TB hard drives
Works With
Lorex Cirrus™ App
2K resolution security cameras

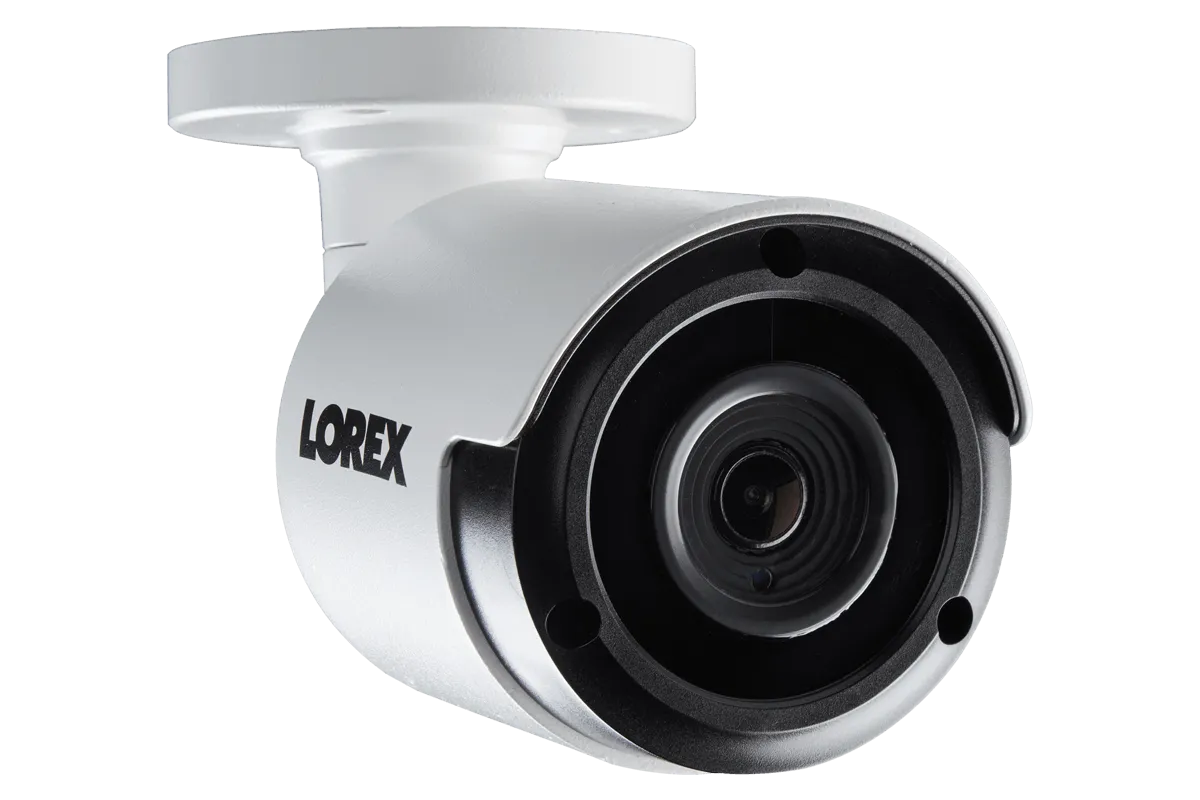

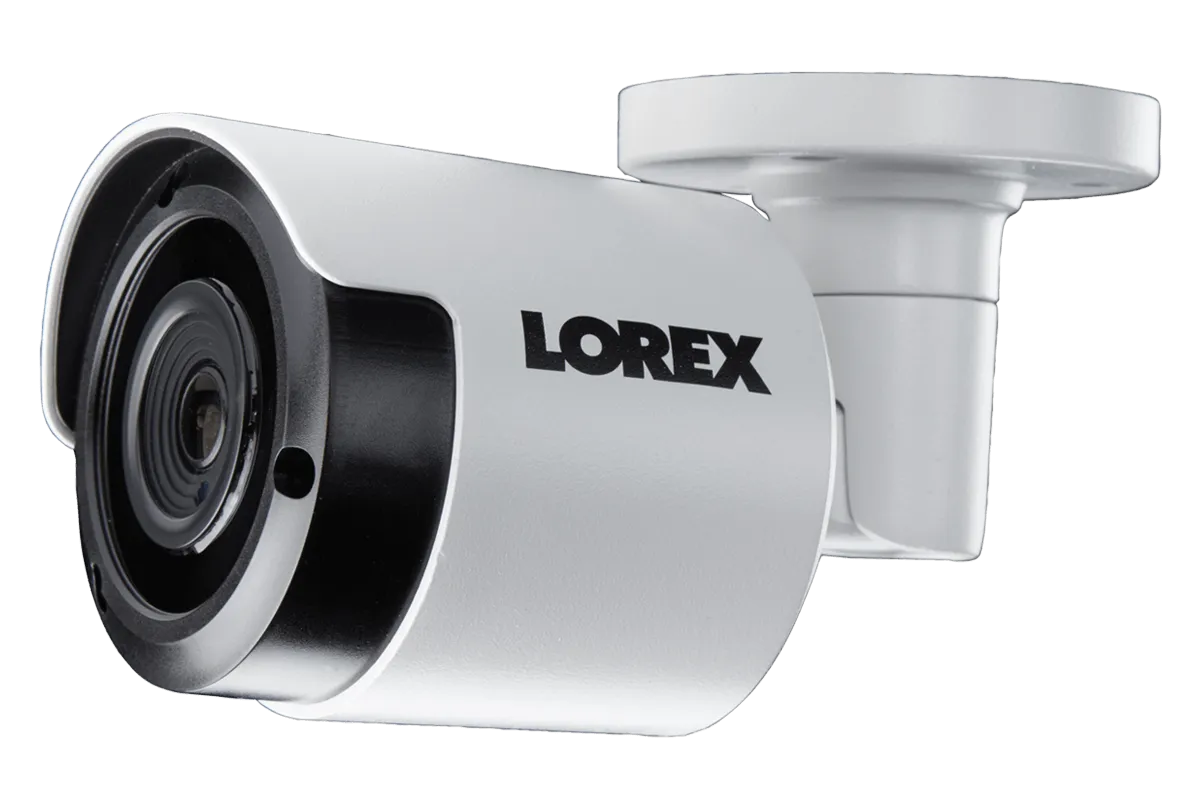

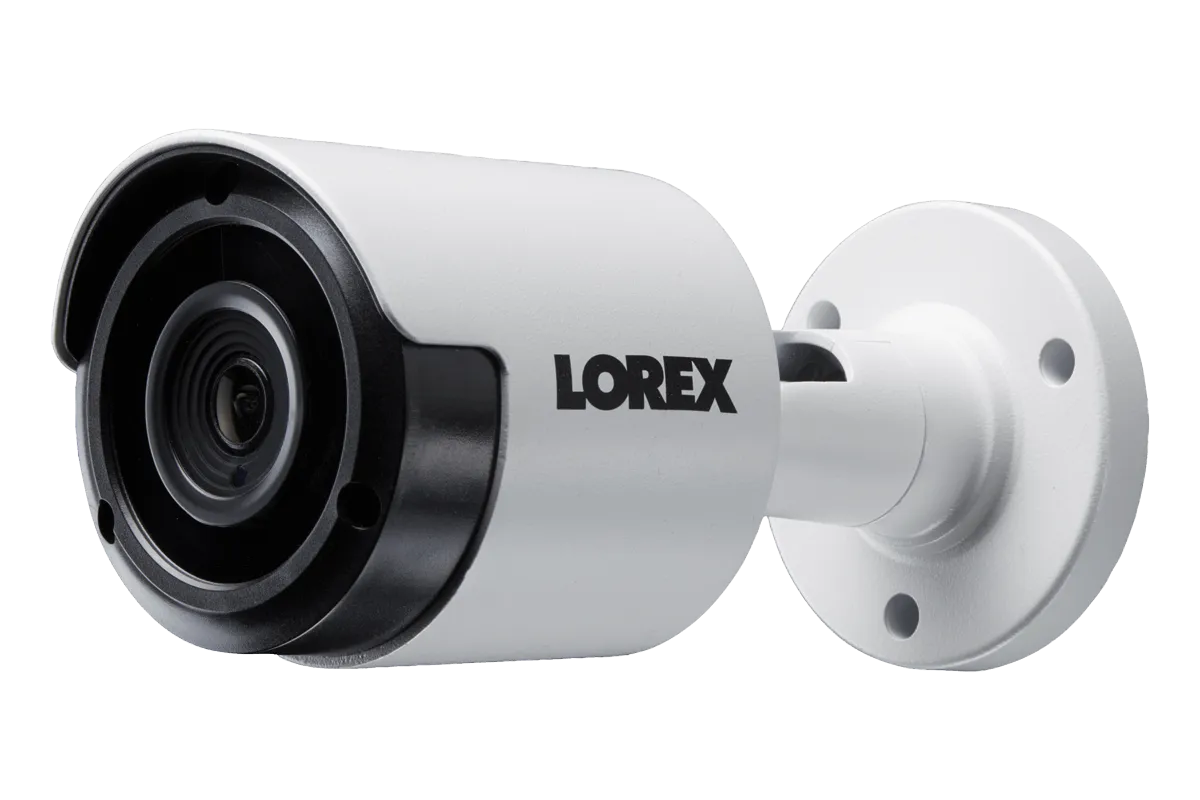

Your LK343B bullet security cameras contain advanced 4mp image sensors. This means that they are capable of recording a 2K pixel resolution of 2688 x 1520 at 20 frames-per-second (FPS). This resolution offers a higher level of clarity and detail when compared to 1080p (1920 x 1080). Their wide 101° angle lenses will also provide extremely broad fields of view and their True High Dynamic Range (HDR) feature will ensure that bright areas are not too over-exposed and dark areas are not too dark.
Enhanced detail and clarity
2K Super HD security cameras not only offer a higher quality video footage than 1080p, they add an increased ability to digitally zoom in on distant objects while watching recorded playbacks. This is thanks to their higher pixel count (2688 x 1520 compared to 1920 x 1080). These additional pixels allow you to see details longer as you digitally zoom in on the image, which will give you a better chance to capture useful evidence, such as facial features.
All-night coverage - in color
You can be sure that your property is protected through the night thanks to the LKB343B security cameras included in this bundle. These cameras also come equipped with Lorex's revolutionary Color Night Vision (CNV) technology. This technology will add another layer of visual detail to your night vision and can help assist in identifying people or objects in the dark.
*It is important to note that CNV requires ambient light. The video will typically switch to black and white infrared if conditions are too dark. Please for more information about our innovative Color Night Vision.
Power-over-Ethernet installation

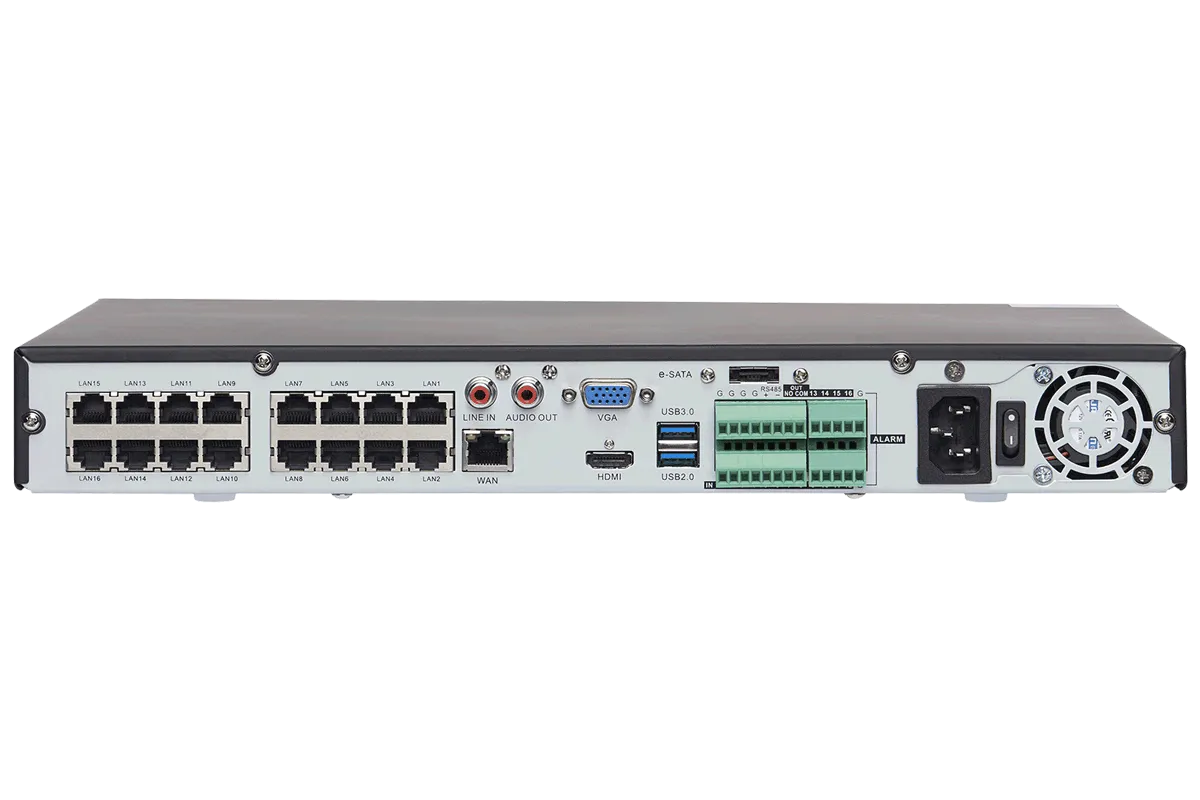

Thanks to Power-over-Ethernet technology, this professional grade security system does not require a professional technician for installation. Simply run a single ethernet cable between the NVR and each IP camera. This cable provides both power and video transmission up to 300ft / 91m ().
Stay connected with Lorex Cirrus
Connect this security camera system to Lorex Cirrus™, our innovative app designed for most smartphones and tablets. Simply scan the unique QR code on your NVR to start viewing your entire system from wherever life takes you. Features such as easy-to-read event history timelines and custom mobile notifications for motion events will let you monitor your property easier and smarter.
Lorex web client available
Lorex Client 13 gives you access to your security system and its settings over the Internet using a PC or Mac computer. With this software, you will be able to view live and recorded video, as well as save manual recordings and snapshots to your computer's hard drive. The software is available under the downloads section below.
Works With
Extreme weather tolerance
The included LKB343B security cameras are IP66 rated (weatherproof) for safe outdoor installation. They will even continue to operate in freezing temeratures as low as -22°F / -30°C. Their rugged housings and vandal-resistant designs add even further protection for safe outdoor application.
LKB343B
140°F | 60°C
Heat Rating
-22°F | -30°C
Cold Rating
Security grade hard drive
The massive within the LNK7000 Series NVR is not your ordinary hard drive. It is engineered to be in the constant operation so you never miss a moment of footage. Your NVR can also be programmed to record at a lower resolution or only when movement is detected to extend your storage space.
Image resolution comparison
| Recording | 4mp (2688×1520) | Full 1080p HD (1920×1080) | 720p HD (1280×720) | Analog 1080p HD (1920×1080) | 720p HD (1280×720) |
| Platform | 2K NVR systems | 1080p HD NVR systems | 720p HD NVR systems | 1080p HD DVR systems | 720p HD DVR systems |
| Video | Digital IP / RJ45 connection | Digital IP / RJ45 connection | Digital IP / RJ45 connection | Analog BNC / RG59 connection | Analog BNC / RG59 connection |
| Power | PoE (Power over Ethernet) | PoE (Power over Ethernet) | PoE (Power over Ethernet) | Standard DC power | Standard DC power |
| Installation | Connect cameras to NVR or to router/LAN | Connect cameras to NVR or to router/LAN | Connect cameras to NVR or to router/LAN | Cameras require wired connection to DVR | Cameras require wired connection to DVR |
| Resolution | 2K = 4 megapixels | 1080p = 2 megapixels | 720p = 1 megapixels | 1080p = 2 megapixels | 720p = 1 megapixels |
