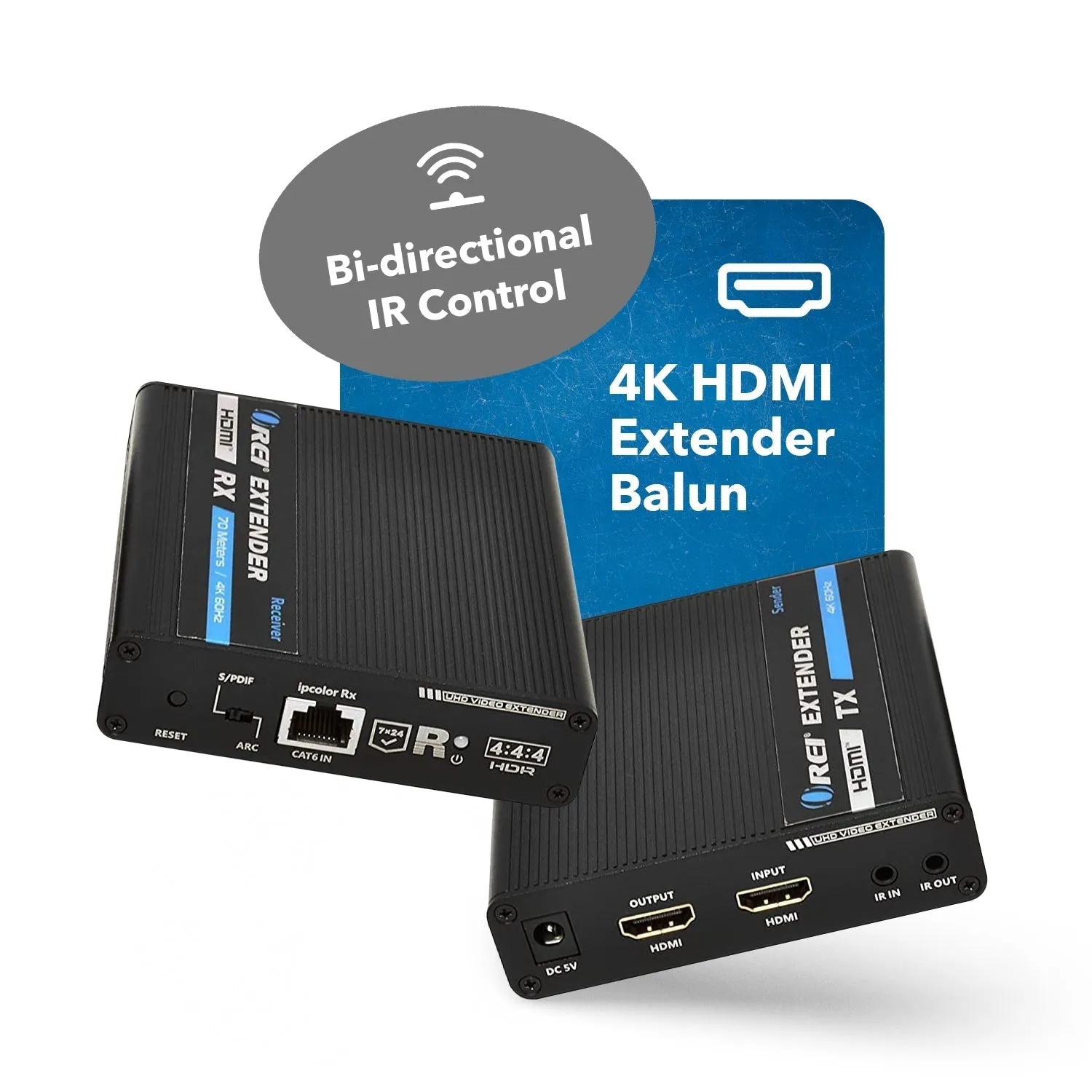

OREI UHD-IPC230-K: UltraHD 4K HDMI Extender upto 230ft
- 4K HDMI Extender Balun - Long Range Over LAN Cable up to 230 feet
- With High-Quality CAT6/7 get zero latency
- Supports HDR, HDR10 , 18Gbps bandwidth

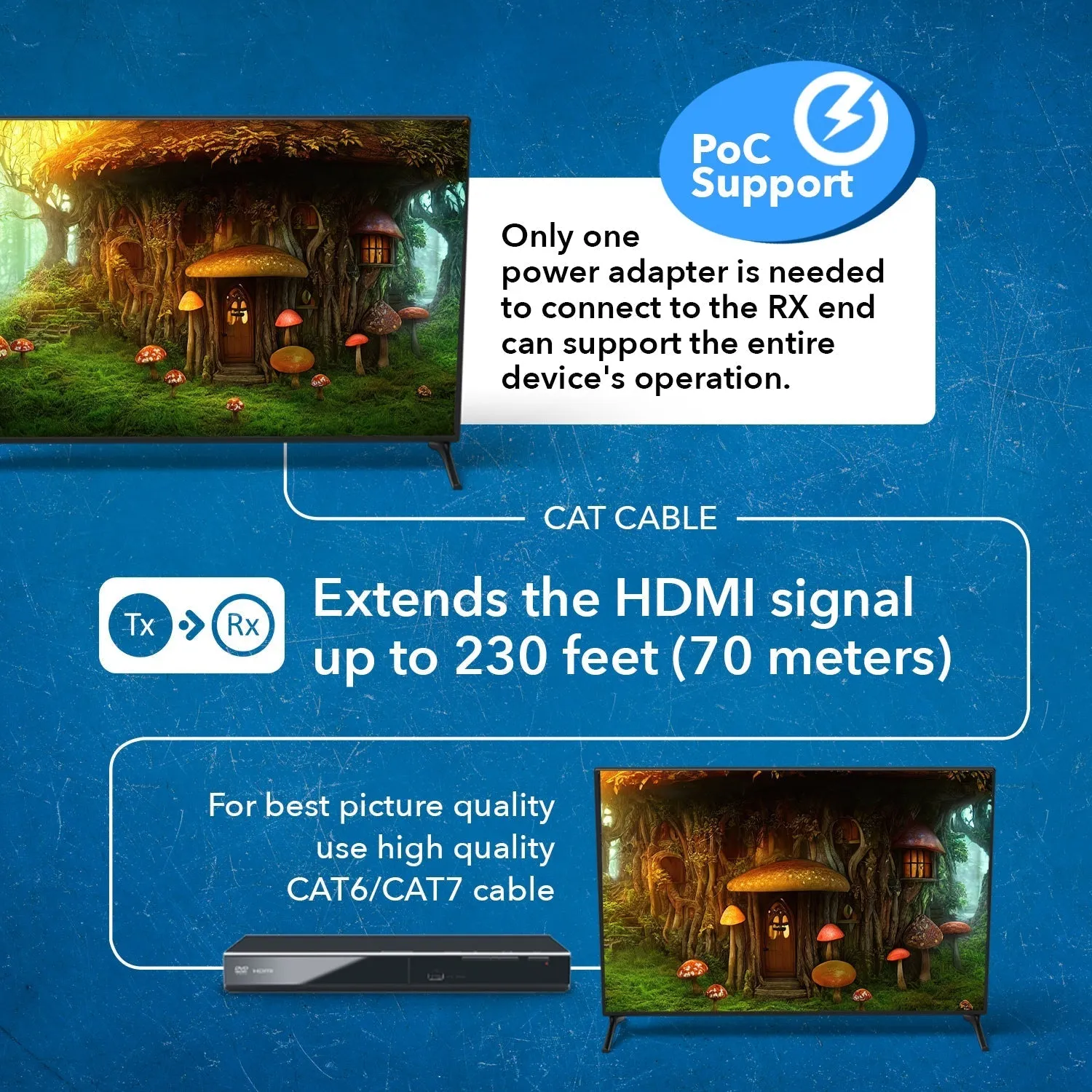

- 4K@60Hz HDMI signal can be transmitted 70 meters through a CAT6/6A/7 network cable.
- The receiver can extract the digital audio from the transmitter through the S/PDIF port.
- Supports Dolby audio(Dolby Digital Plus/Dolby TrueHD/Dolby Digital)
- Supports HDR(YUV4:4:4), EDID passback.
- Transmitter support one HDMI loop-out.
- Support bi-directional IR passback function (20 - 60KHz).
- One receiver can be powered by the transmitter via network cable.
- Lightning Protection, Surge Protection, ESD Protection.
This OREI HDMI extender balun allows you to transmit HDMI audio/video signals over CAT/6/7 cable with zero latency along with maintaining original audio/video quality. It supports up to 4K@60Hz YUV 4:4:4 resolution and extends the transmission distance up to 230 feet using high-quality CAT cables. OREI technology transmits uncompressed HDMI audio and video, RS-232 serial, and Bi-directional IR control signals up to 230 feet and supports up to 18 Gbps transmission. The OREI installation can control RS-232 signal devices such as scanners and touchscreen display at baud rates up to 115 kbps.
Compact, durable, and easy to set up and operate. Ideal for home, businesses, test bench facilities, data centers, and help desks. You can also operate a set-top box or a Blu-ray player using its remote when at the remote monitor and vice versa.

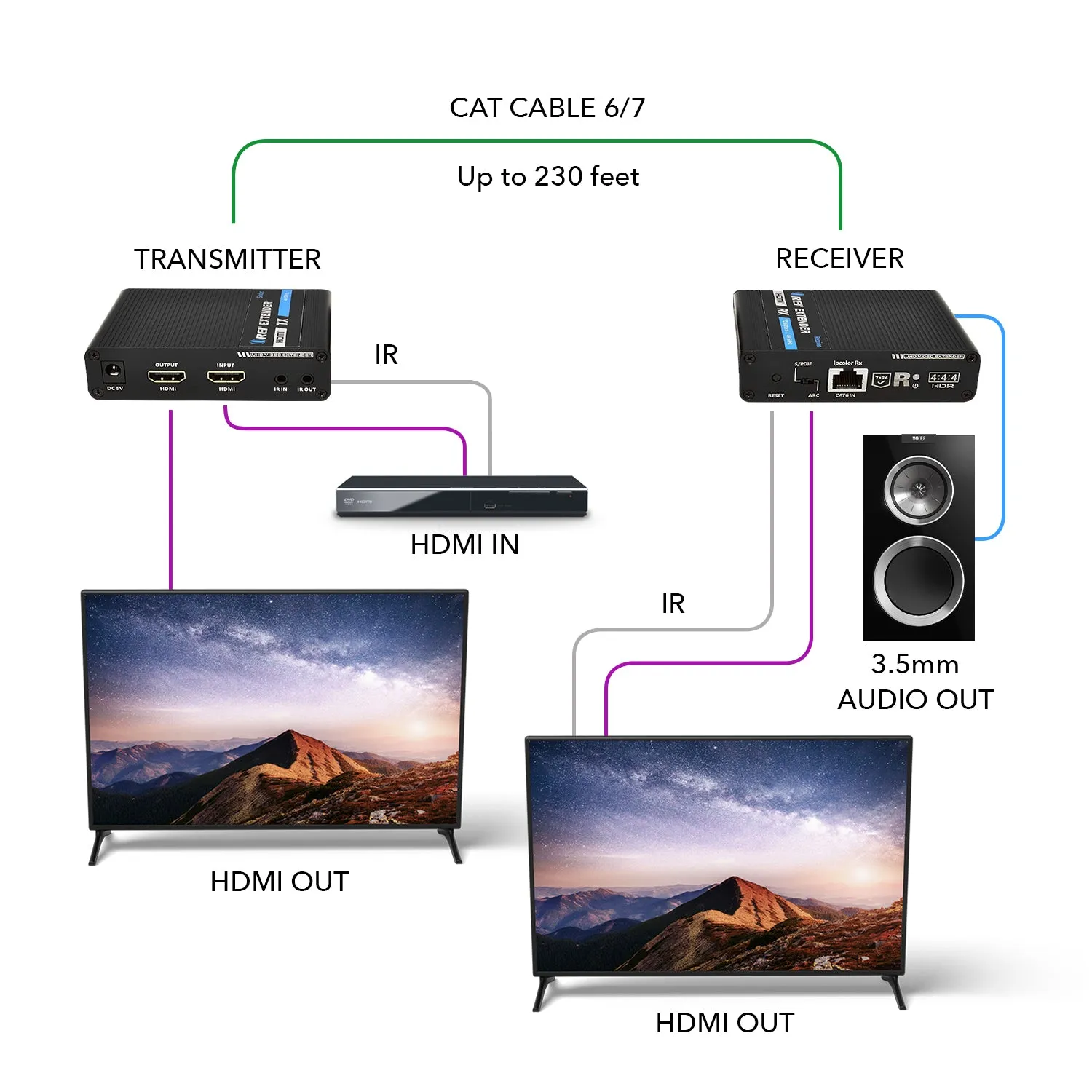

HDMI Loop-out - Connect HDMI display to the transmitter for output to local display at the source.
Bi-directional IR control - Enables source devices to recognize remote commands from the remote display or control the remote display from the source device.

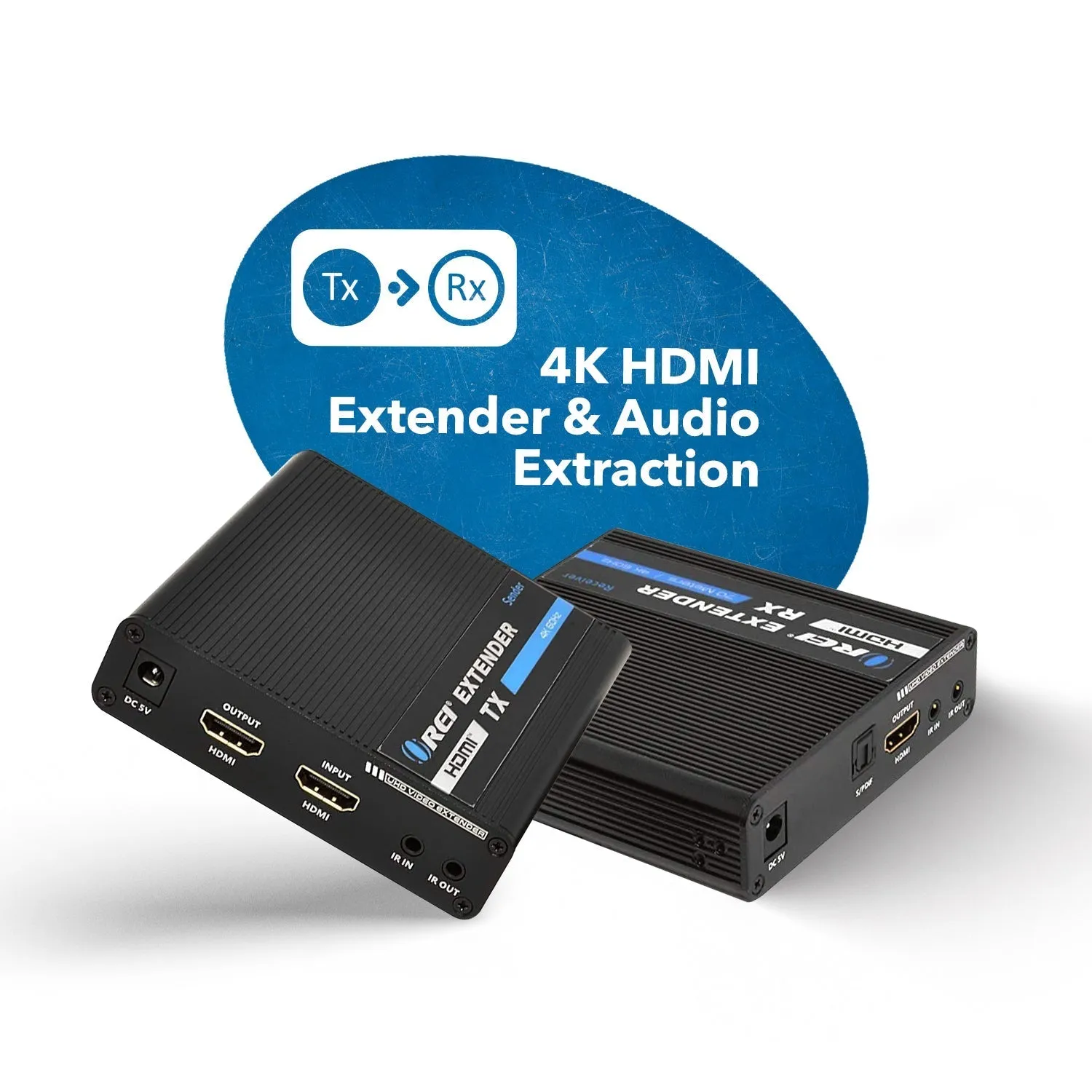

Digital Audio-out - SPDIF audio output on receiver for Digital audio output when the audio stream is along from the source.
[tab]
AUDIO AND VIDEO
| Transmitter: | INPUT PORTS: |
1x HDMI Type A [19-pin female] 1x IR IN [3.5mm Stereo Mini-jack] |
| OUTPUT PORTS: |
1x HDMI Type A [19-pin female] 1x CAT OUT [RJ45, 8-pin female] 1x IR OUT [3.5mm Stereo Mini-jack] |
|
| Receiver: | INPUT PORTS: |
1x CAT IN [RJ45, 8-pin female] 1x IR IN [3.5mm Stereo Mini-jack] |
| OUTPUT PORTS: |
1x HDMI Type A [19-pin female] 1x IR OUT [3.5mm Stereo Mini-jack] 1x SPDIF OUT [S/PDIF] |
COMPLIANCES
| HDMI Compliance: | HDMI 2.0 |
| HDCP Compliance: | HDCP 2.2 |
SUPPORTED CAT CABLES
| CAT5e, CAT6, CAT7: | We recommend you to use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance |
EXTENDING DISTANCE
| 4K@30Hz: | 229 Feet |
| 1080p@60Hz: | 229 Feet |
VIDEO OUTPUT
| Video Bandwidth: | 18Gbps |
| Video Resolutions: | 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz, 3840x2160@24/25/30/60Hz 4096x2160@24/25/30Hz |
| Color Space: | RGB YCbCr |
| Color Depth: | 12bit *3 |
CEC, EARC, POC/POE, IR, DOWNSCALER, KVM, OVER IP, HDBASET, RS-232 SUPPORT
| CEC Function: | No |
| ARC Function: | Yes |
| USB KVM Function: | No |
| PoC/PoE Function: | Yes |
| IR Controller: | Bidirectional IR |
| Downscaler Function: | No |
| Over Network/IP Function: | No |
| HDBaseT Function: | No |
| RS-232 Function: | No |
LOOP-OUT/LOCAL PORT
| Has loop out port: | Yes |
| Number of Loop out ports: | 1 |
SWITCHES
| EDID Management: | No |
| EQ Dip Switches: | No |
| ARC: | Yes |
AUDIO OUTPUT
| HDMI Audio Formats: | LPCM/DTS-HD/DTS-Audio/ Dolby Digital 5.1CH |
| SPDIF/Optical Audio Formats: | LPCM/DTS-HD/DTS-Audio/ Dolby Digital 5.1CH |
| L/R Audio Formats: | NO L/R audio output |
SIGNALS
| TMDS Signals: | 0.7 ~ 1.2Vp-p(TMDS) |
| DDC Signals: | 5Vp--(TTL) |
PERFORMANCE & INTERFACE
| Transmission Type: | Over CAT6 Cable |
| Transfer Method: | IPcolor Transmission Technology |
| Latency: | Zero Latency |
| Transmission Distance: | 229 Feet Over CAT6 |
| Maximun Pixel Clock: | 594MHz |

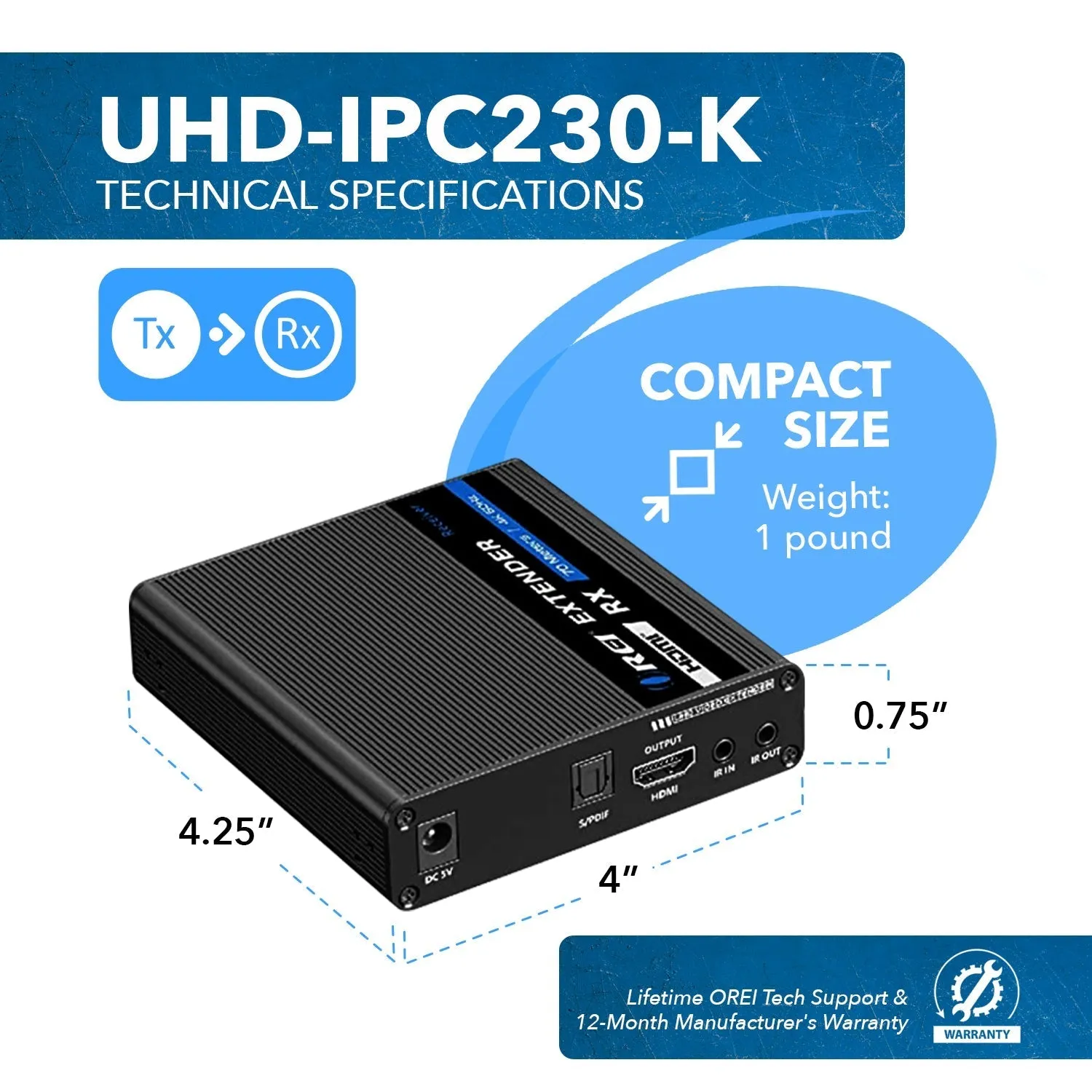

DIMENSIONS & WEIGHT
| Transmitter: | Height: | 26.2mm |
| Width: | 99mm | |
| Depth: | 106mm | |
| Weight: | 210g | |
| Receiver: | Height: | 26.2mm |
| Width: | 99mm | |
| Depth: | 106mm | |
| Weight: | 210g |
PROTECTION
| Operation Temperature: | 0～50℃ |
| Storage temperature: | -30~70°C |
| Relative Humidity: | 0~90%RH |
| ESD Protection: | IEC61000-4-2 |
| Electrostatic Protection of the whole Machine: | 1a Contact discharge level 3 1b Air discharge level 3 Implementation of the standard: IEC1000-4-2 |
RJ-45 CONNECTOR Type
| WE/SS 8P8C |
POWER
| Power Consumption (Max): | Transmitter: | <4W | |||
| Receiver: | <4W | ||||
| Power Supply | DC5V/2A |
PHYSICAL PROPERTIES
| Color: | Black |
| Housing: | Aluminum Alloy Material Crystal Panel |
| Processing Technology: | IPcolor Transmission Technology |
| Finishing: | Grit blast |
PACKAGE CONTENTS
| 1X Transmitter unit |
| 1X Receiver unit |
| 1X DC5V/2A Power Adapter |
| 1X User manual |
| 1X IR blaster extension cable |
| 1X IR receiver extension cable |
| 8X Mounting brackets |
WARRANTY
| 1-Year Manufacturer's Warranty |
[tab1]
FAQs
Yes, you can purchase these things directly from us. Please contact us & we will assist you further.
No, this product doesn not extend multiple screens. It will duplicate the input sources to multple outputs.
Yes, you will be able to get a signal beyond the mentioned distance but the quality of the video decreases with increase in the distance and that too when using with shielded CAT6 cable.
Yes, you can implement the daisy chain method.
Both the ends of the CAT cable should be termed as EIA-568B & the cable should be straight & not crossed.
We recommend you to use High-Quality HDMI cables & shielded CAT6 cables.
Yes, you can purchase the additional transmitter from us. Please contact us & we will let you know the price.
Yes, you can purchase the additional receiver from us. Please contact us & we will let you know the price.
You can extend the display devices up to 230 Feet when using with a shielded CAT6 cable.
The issue might be with the CAT cable. This might be due to the external interference of the signals & CAT5e has low bandwidth as compared to the CAT6. We recommend you using shielded CAT6 cable.
If the power and link led lights does not illuminate on the RJ45 port of the transmitter and the receiver, then the transmitter & receiver might be dead.
Please contact us so that we can troubleshoot the issue.
Our all the extenders supports IR Frequency & the devices using RF frequency will not be compatible with our products.
The IR Blaster/Emitter should be connected to the IR out port on the Transmitter and the IR Receiver should be connected to the IR in on the Receiver.
Here's a quick overview of the IR connection on our extenders:
- Supports 4K@60Hz up to 230 feet YUV 4:4:4
- Supports one-way PoC function & bi-directional IR signal transmission
- Supports Dolby audio
