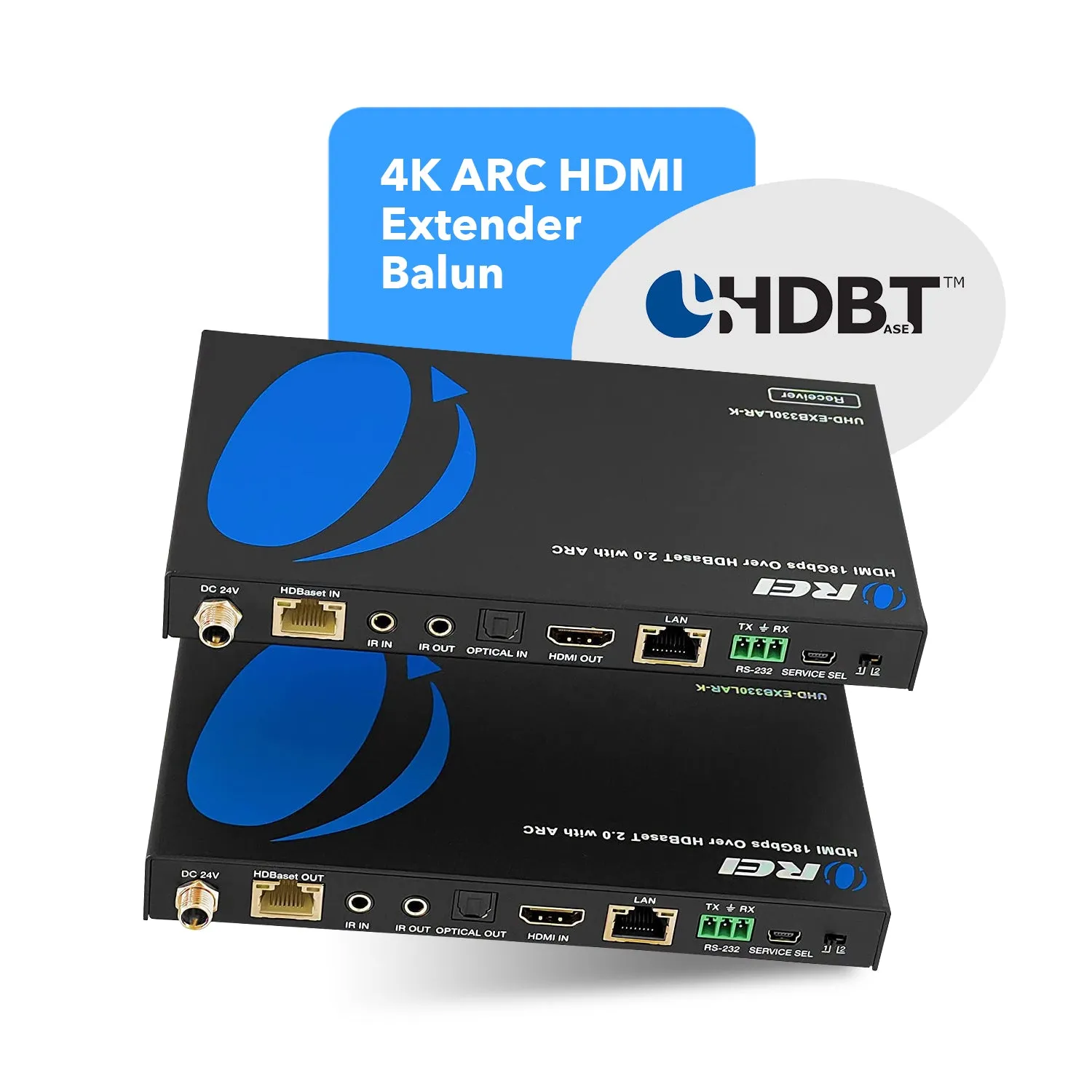

OREI UHD-EXB330LAR-K HDMI Extender up to 330 Feet
- HDMI 2.0b, HDCP 2.2 & HDCP 1.4 compliant
- Supports video resolutions up to 4K@60Hz (4:4:4:), 4K@30Hz & 1080p@120Hz
- Audio up to 7.1 Channels of High-Definition audio pass through (LPCM, Dolby TrueHD & DTS-HD Master Audio)
- Supports HDBaseT 2.0 over a single CAT6/7 cable up to 330ft
- Supports ARC & CEC
- 5-Play convergence: HD video & audio, IR/RS-232/Ethernet/PoC

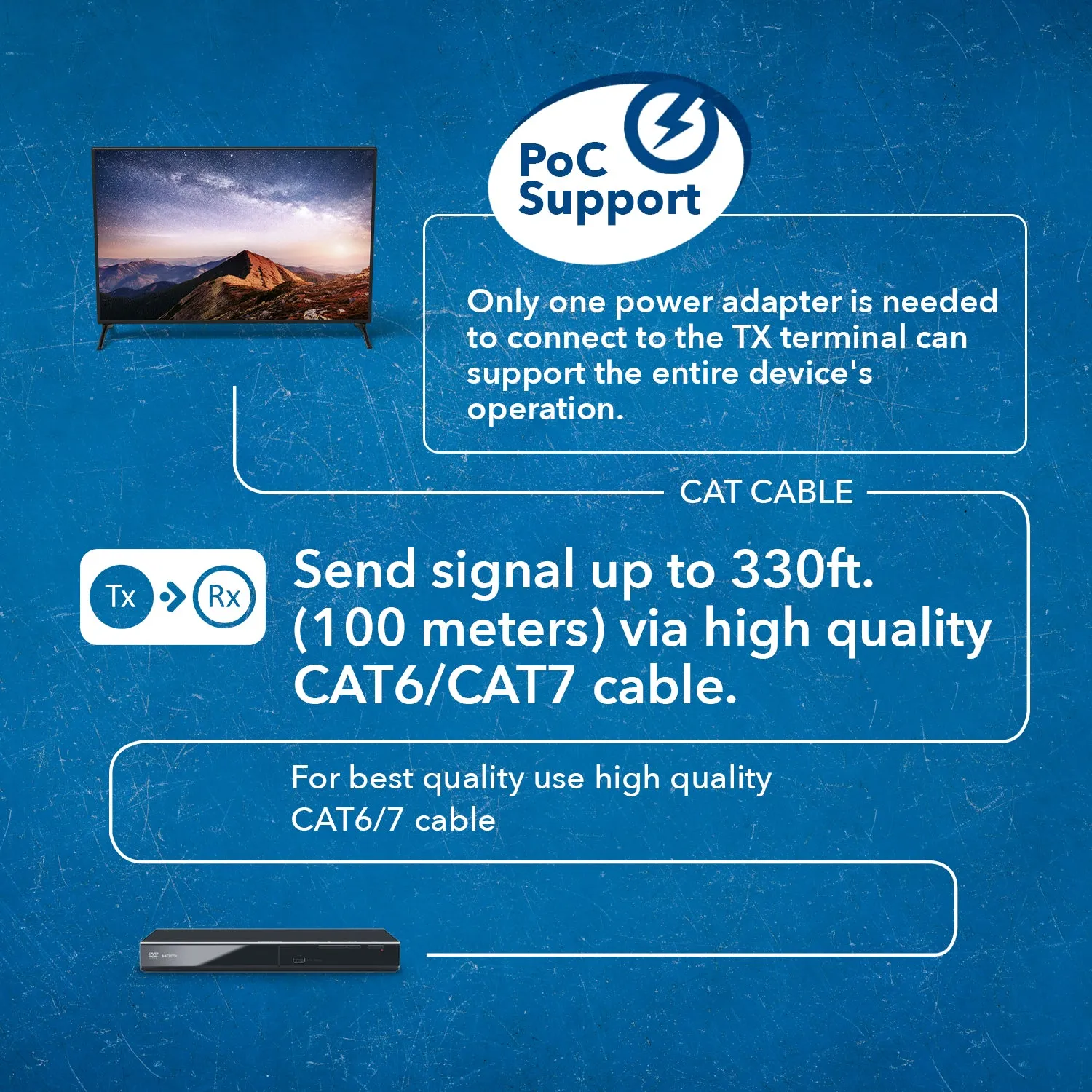

- Two-Way PoC (Power Over Cable), either TX or RX powered by 24V/1A, the other one doesn't need power supply
- This unit requires only one power adapter to work

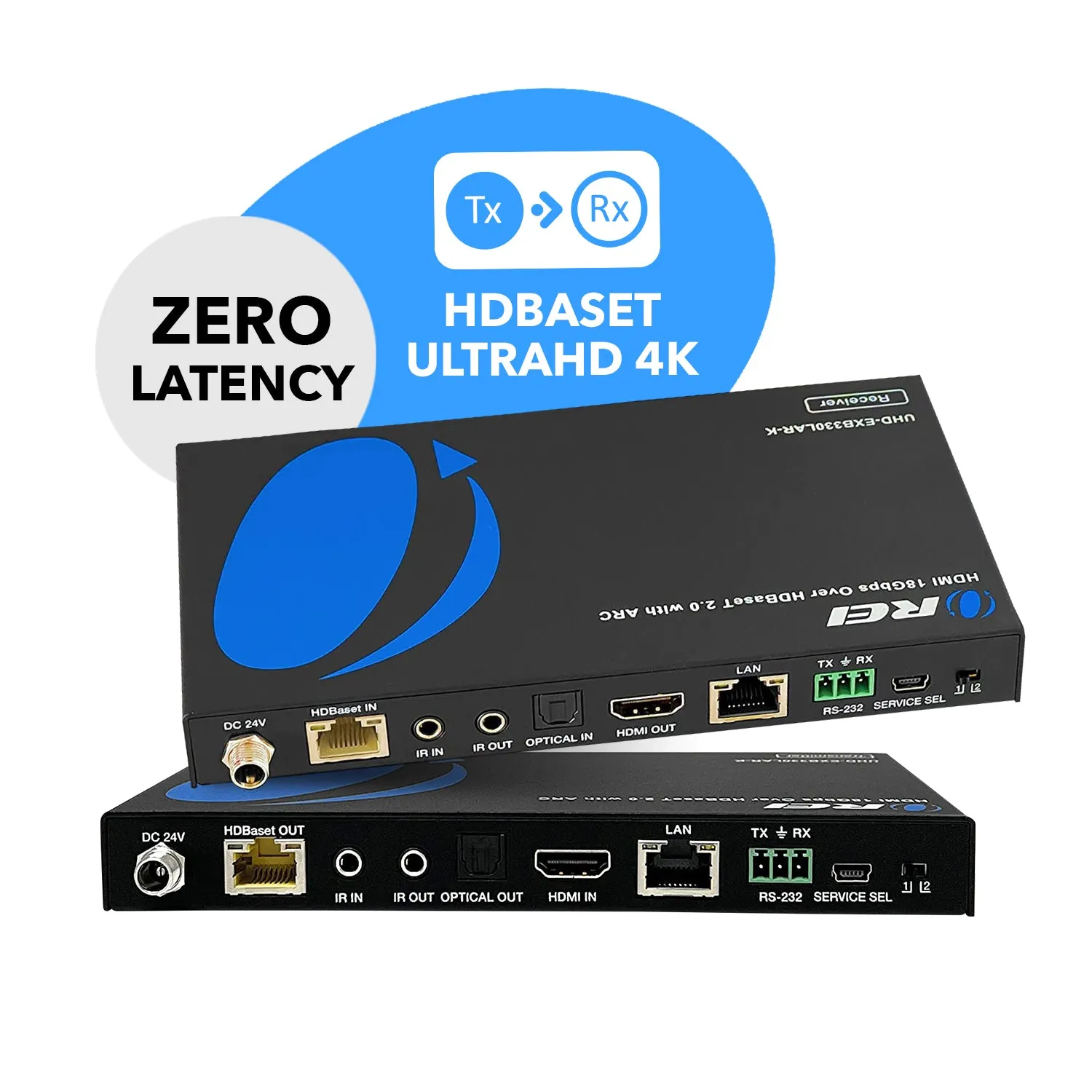

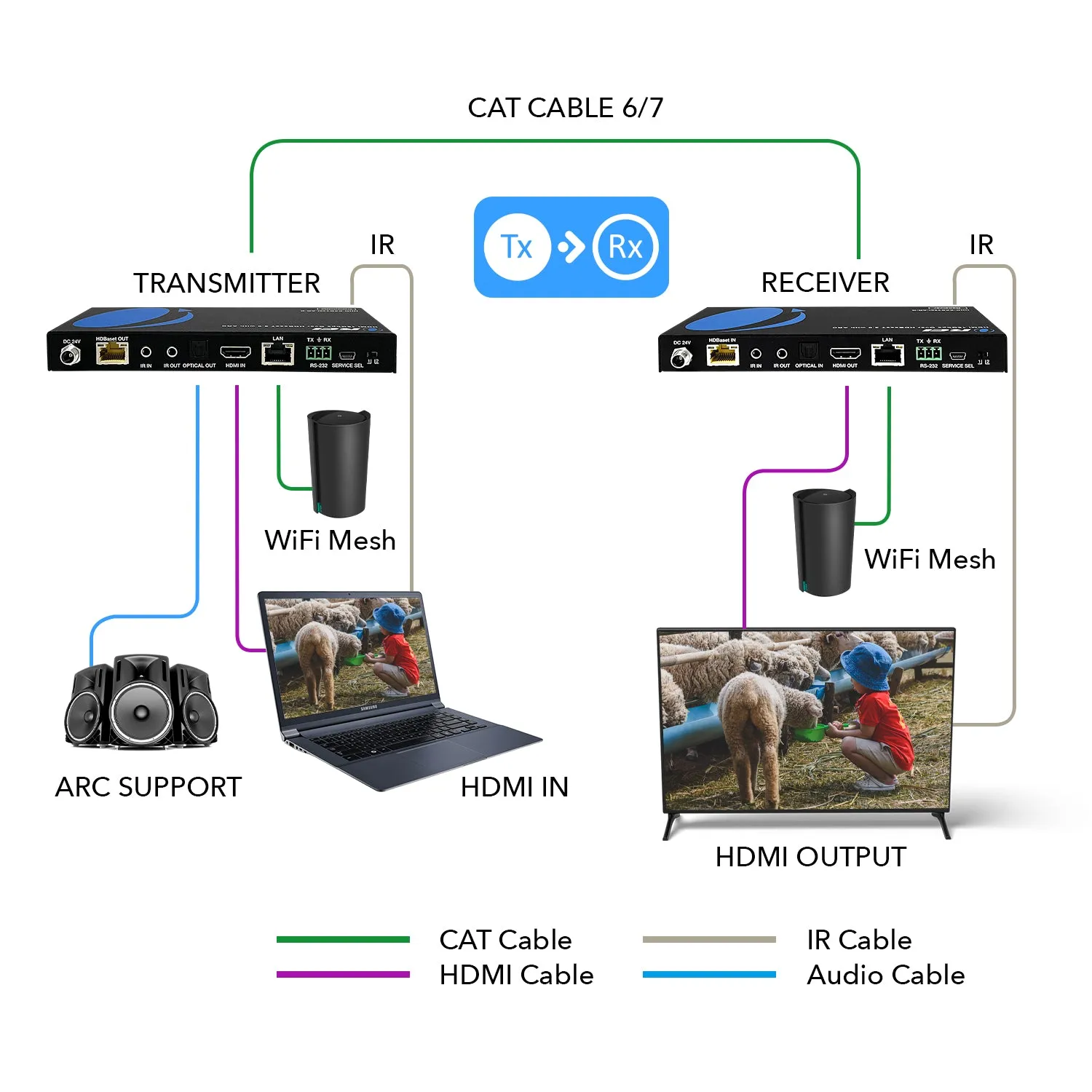

The HDBaseT HDMI extender enables transmission of video resolutions up to 4K@60Hz (YUV 4:4:4) along with HD audio, dedicated optical audio pathways, HDBaseT Ethernet, Two-Way IR, RS-232, 24V PoC & ARC signals up to 330ft.
ARC function enables audio from a compatible display to be routed back from the receiver unit to the transmitter. The latest HDBaseT 2.0 technology can make your home or office set up more efficient and easier to use.
[shortdes]
- Supports audio up to 7.1Ch
- Supports Bi-directional IR, PoC, ARC, RS-232
- Extends signals up to 330 feet
AUDIO AND VIDEO

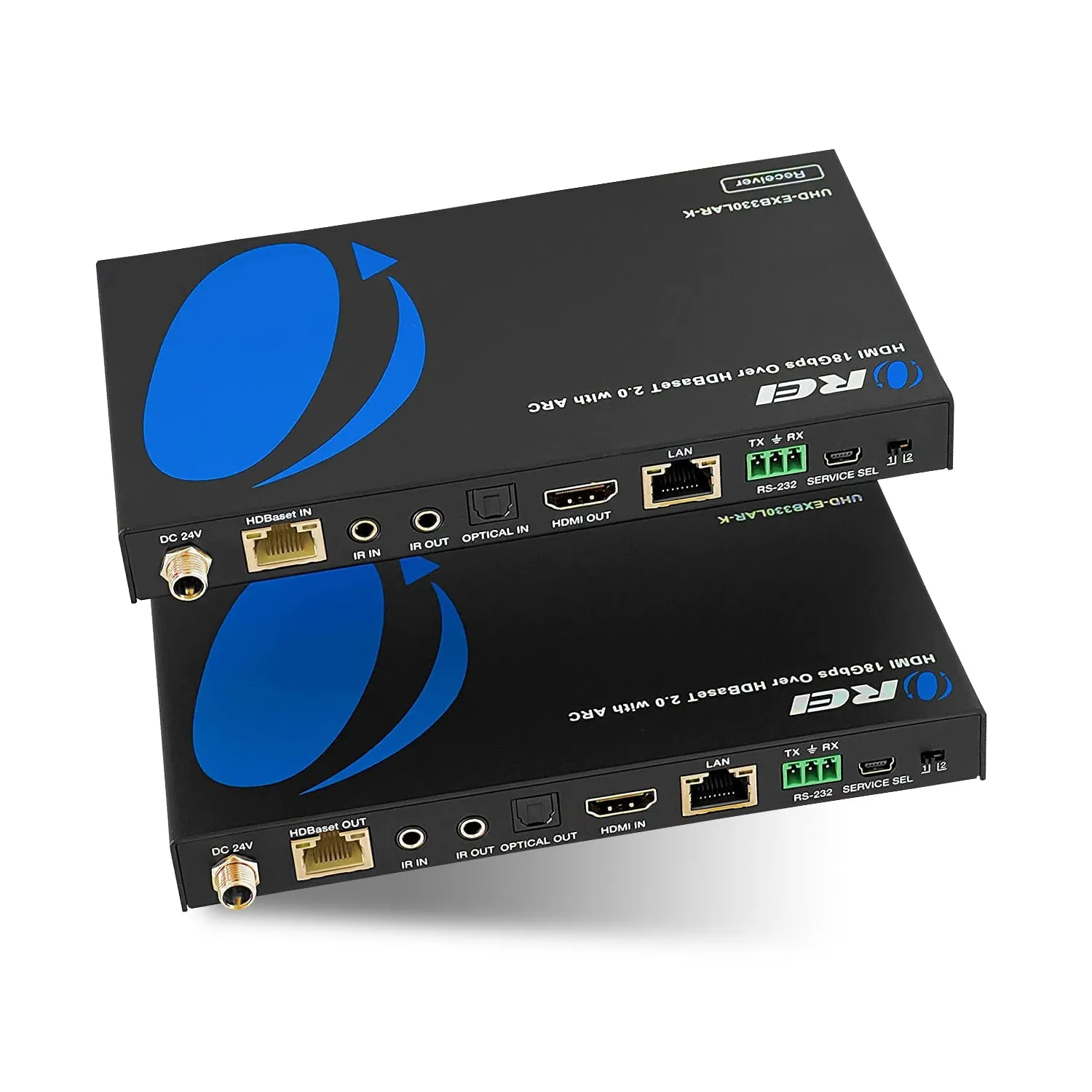

| Transmitter: | INPUT PORTS: | 1x HDMI Type A [19-pin female] |
| 1x IR In [3.5mm Stereo Mini-Jack] | ||
| 1x LAN [RJ45] | ||
| OUTPUT PORTS: | 1x HDBaset Out [RJ45] | |
| 1x IR Out [3.5mm Stereo Mini-Jack] | ||
| 1x Optical Out [S/PDIF] | ||
| Receiver: | INPUT PORTS: | 1x HDBaseT In [RJ45] |
| 1x IR IN [3.5mm Stereo Mini-Jack] | ||
| 1x Optical In [S/PDIF] | ||
| OUTPUT PORTS: | 1x HDMI Type A [19-pin female] | |
| 1x IR Out [3.5mm Stereo Mini-Jack] | ||
| 1x LAN [RJ45] |
COMPLIANCES
| HDMI Compliance: | HDMI 2.0b |
| HDCP Compliance: | HDCP 2.2 and HDCP 1.4 |
SUPPORTED CAT CABLES
| CAT5e, CAT6, CAT7: | We recommend you to use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance |
EXTENDING DISTANCE
| 4K@60Hz: | Up to 330 Feet |
VIDEO OUTPUT
| Video Bandwidth: | 18 Gbps |
| Video Resolutions: | Up to 4K@60Hz (4:4:4), 4K@30Hz, 1080p@120Hz, 1080p 3D@60Hz |
| Color Space: | RGB, YCbCr 4:4:4, YCbCr 4:2:2 |
| Color Depth: | 8-bit, 10-bit, 12-bit |
CEC, EARC, POC/POE, IR, DOWNSCALER, KVM, OVER IP, HDBASET, RS-232 SUPPORT
| CEC Function: | Yes |
| ARC Function: | Yes |
| USB KVM Function: | No |
| PoC/PoE Function: | Yes |
| IR Controller: | Bi-Directional IR |
| Downscaler Function: | No |
| Over Network/IP Function: | No |
| HDBaseT Function: | Yes |
| RS-232 Function: | Yes |
AUDIO OUTPUT

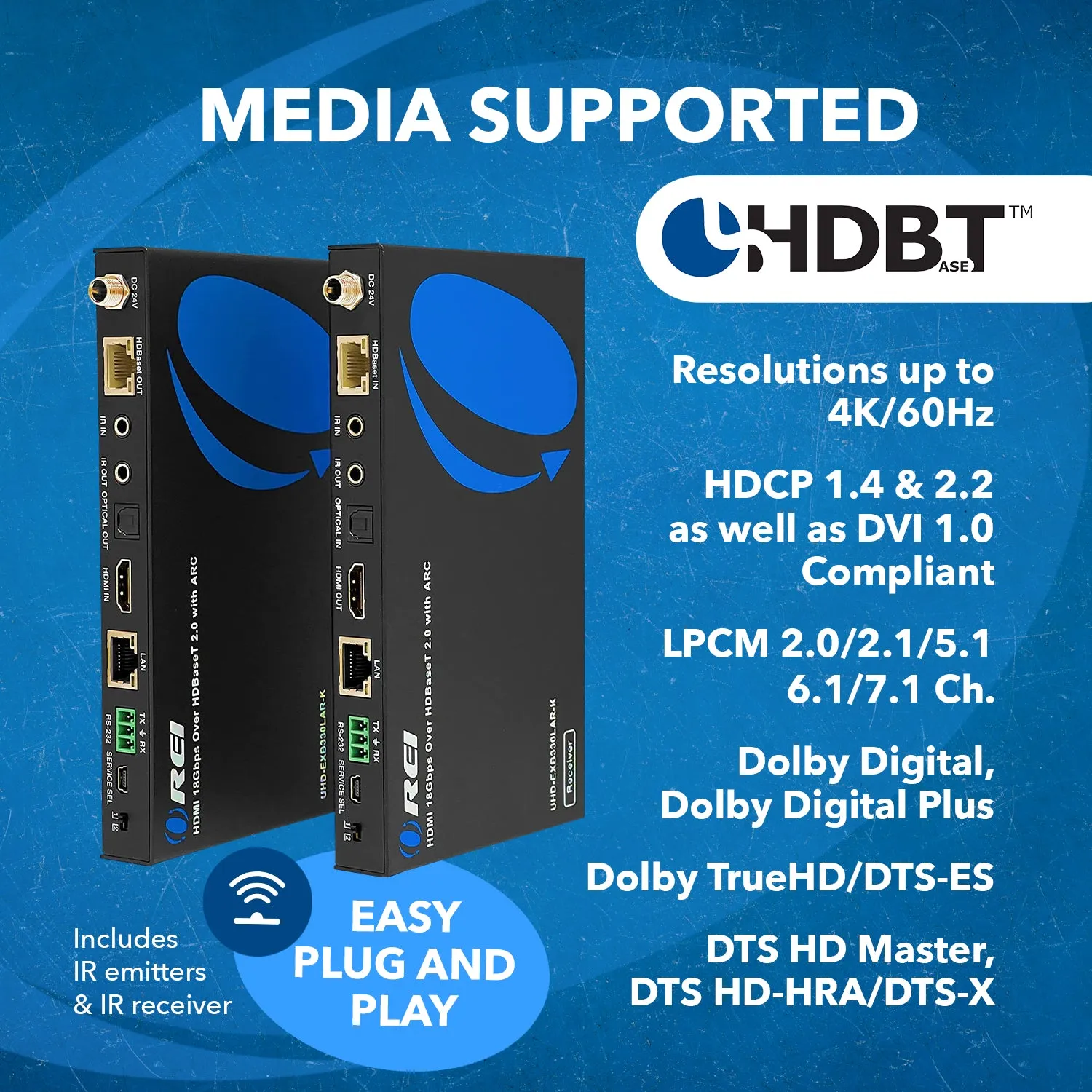

| HDMI Audio Formats: | LPCM 2/5.1/7.1Ch, Dolby Digital, DTS, DTS 5.1, Dolby Digital , Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X |
SIGNALS
| TMDS Signals: | 3.3V |
| DDC Signals: | 5V |

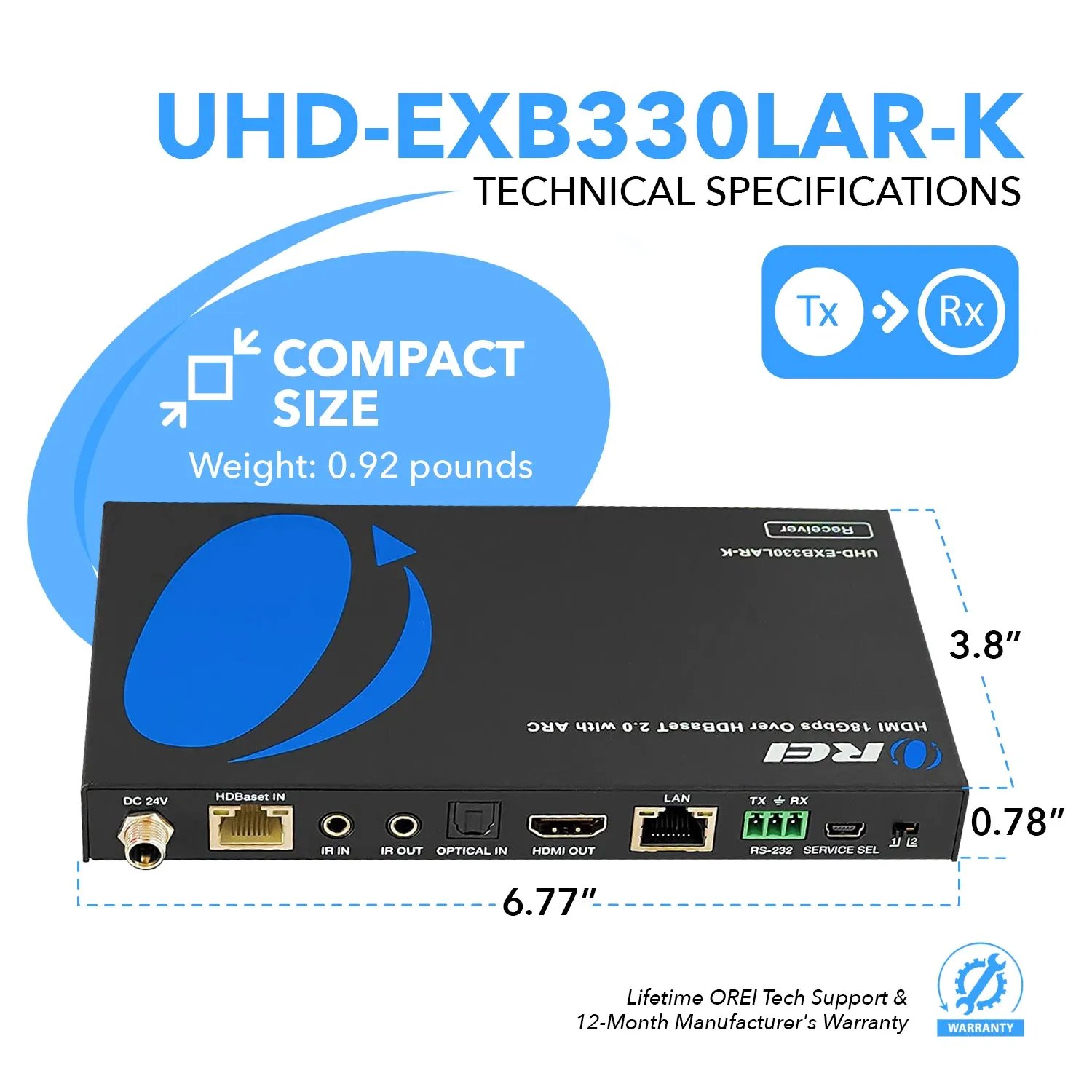

DIMENSIONS & WEIGHT
| Height: | 20mm | ||
| Width: | 172mm | ||
| Depth: | 97.5mm | ||
| Weight: | Transmitter: | 420g | |
| Receiver: | 425g |
PROTECTION
| Operation Temperature: | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage temperature: | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity: | 20~90% RH (non-condensing) |
| ESD Protection: | Human-body Model: ±8kV (Air-gap discharge), ±4kV (Contact discharge) |
| Electrostatic Protection of the whole Machine: | Human-body Model: ±8kV (Air-gap discharge), ±4kV (Contact discharge) |
RJ-45 CONNECTOR Type
| WE/SS 8P8C |
POWER
| Power Consumption (Max): | 11W | ||||
| Power Supply: | Input: | AC100 - 240V 50/60Hz | |||
| Output: | DC 24V/1A (US/EU standards, CE/FCC/UL Certified) |
PHYSICAL PROPERTIES
| Color: | Black |
| Housing: | Metal Enclosure |
PACKAGE CONTENTS
| 1x HDMI Transmitter |
| 1x HDMI Receiver |
| 2x Wideband IR TX |
| 2x Wideband IR RX |
| 1x 24V/1A DS Power Supply |
| 4x Mounting ears |
| 1x User Manual |
WARRANTY
| 1 - Year Manufacturer's Warranty |
[tab1]
FAQs
Yes, you can purchase these things directly from us. Please contact us & we will assist you further.
No, this product does not extend multiple screens. It will duplicate the input sources to multple outputs.
Yes, you will be able to get a signal beyond the mentioned distance but the quality of the video decreases with increase in the distance and that too when using with shielded CAT6 cable.
Yes, you can implement the daisy chain method.
Both the ends of the CAT cable should be termed as EIA-568B & the cable should be straight & not crossed.
We recommend you to use High-Quality HDMI cables & shielded CAT6 cables.
Yes, you can purchase the additional transmitter from us. Please contact us & we will let you know the price.
Yes, you can purchase the additional receiver from us. Please contact us & we will let you know the price.
You can extend the display devices up to 330 Feet when using with a shielded CAT6 cable.
The issue might be with the CAT cable. This might be due to the external interference of the signals & CAT5e has low bandwidth as compared to the CAT6. We recommend you using shielded CAT6 cable.
If the power and link led lights does not illuminate on the RJ45 port of the transmitter and the receiver, then the transmitter & receiver might be dead.
Please contact us so that we can troubleshoot the issue.
