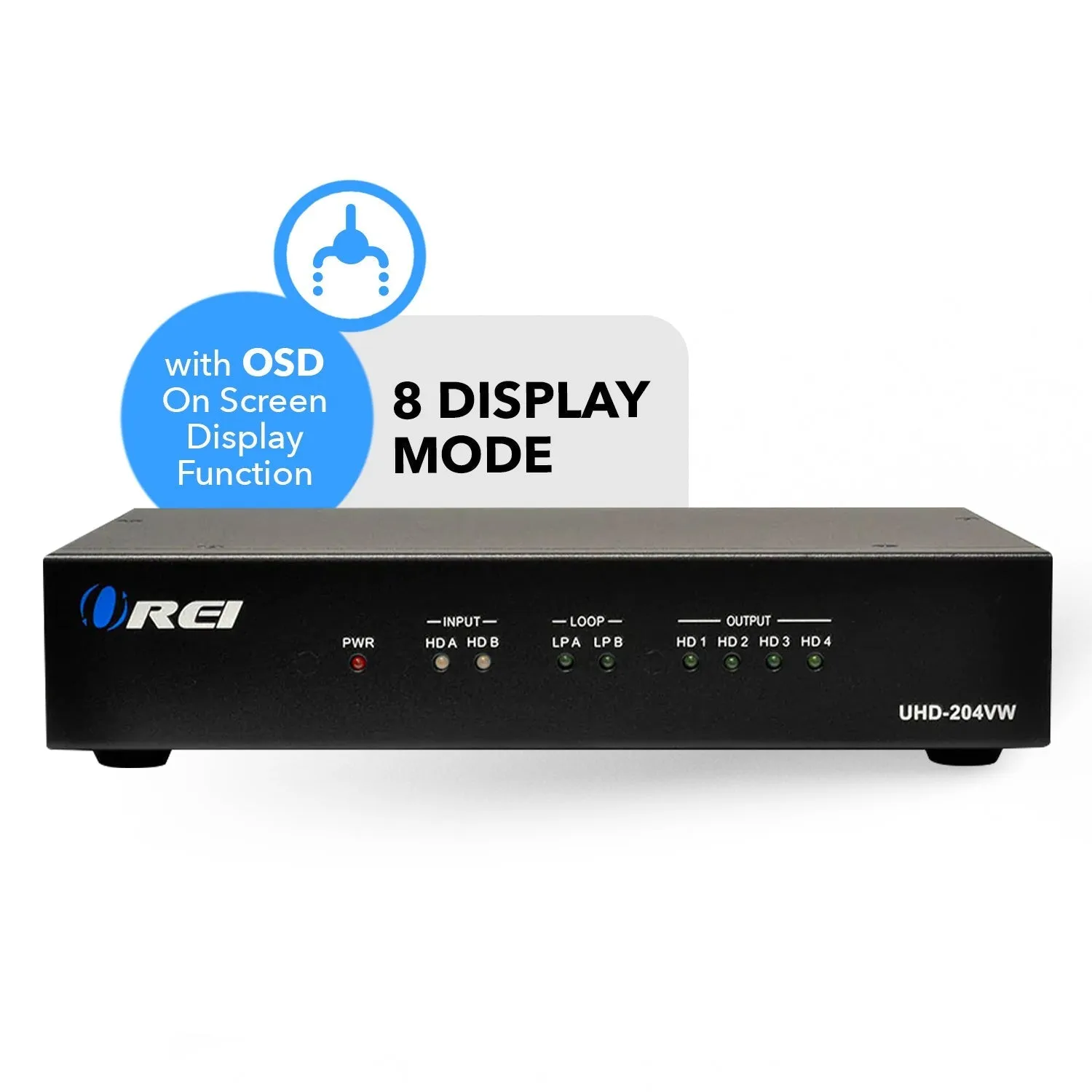

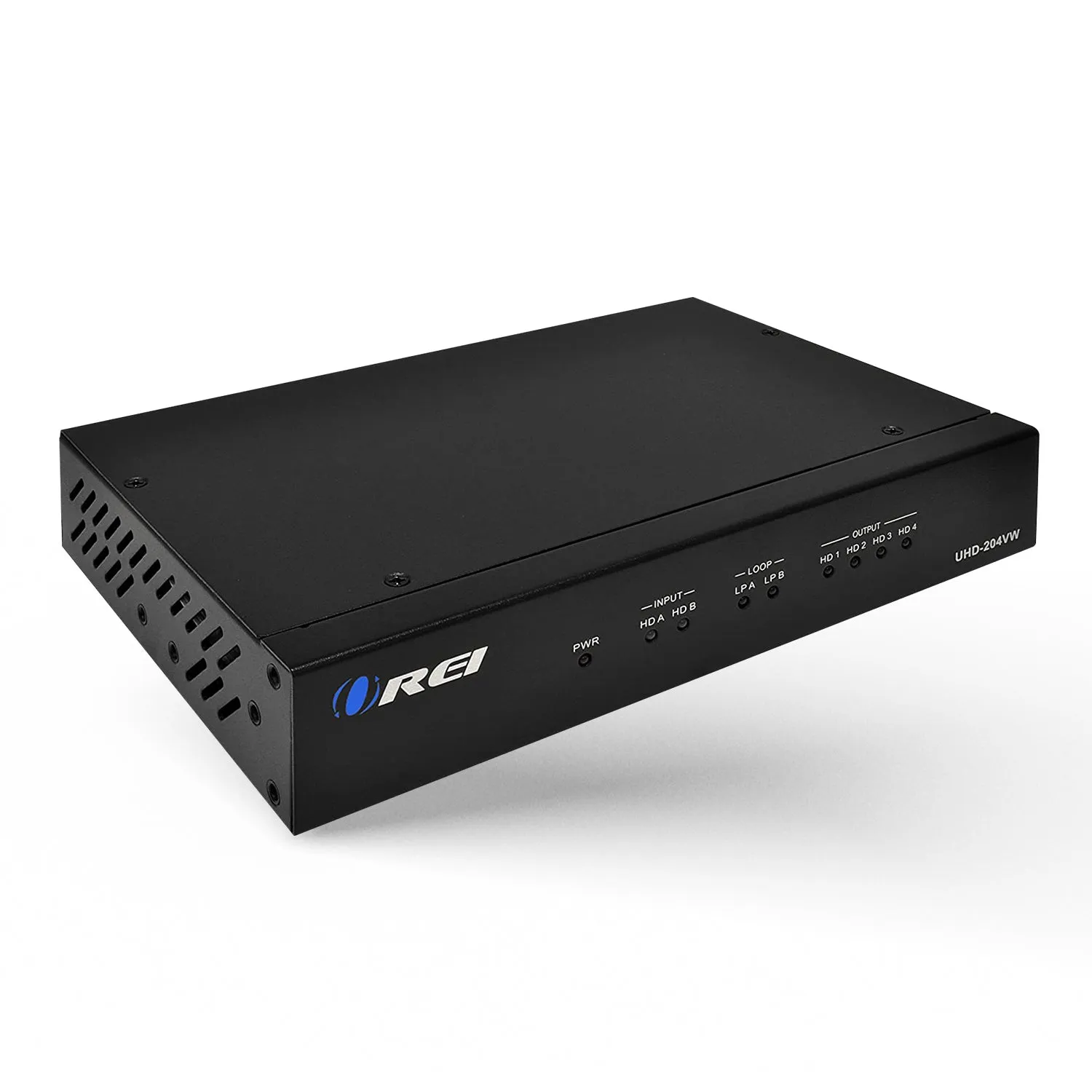

UHD-204VW: 2x4 Ultra HD Video Wall Processor
Key Features:
- HDMI 2.0 and HDCP 2.2 compliant
- 2 Inputs and 4 Outputs with 2 HDMI Loop outputs
- Video resolution up to 4K@60Hz

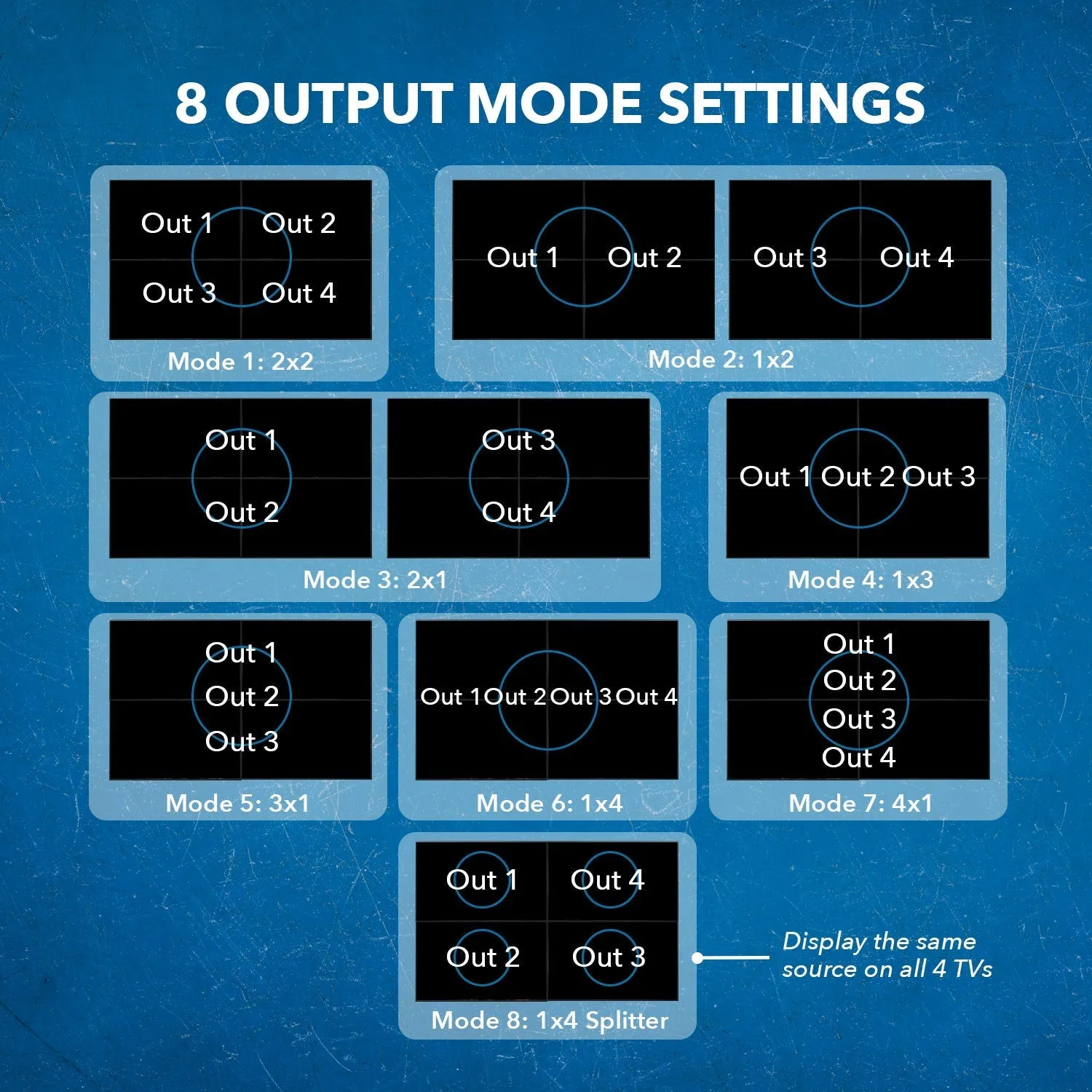

- Various video wall modes including 2x2
- Audio extraction through Analog outputs
- Bezel Compensation support
- 180-degree rotation for top 2 displays in 2x2 mode
- RS-232 and TCP/IP control

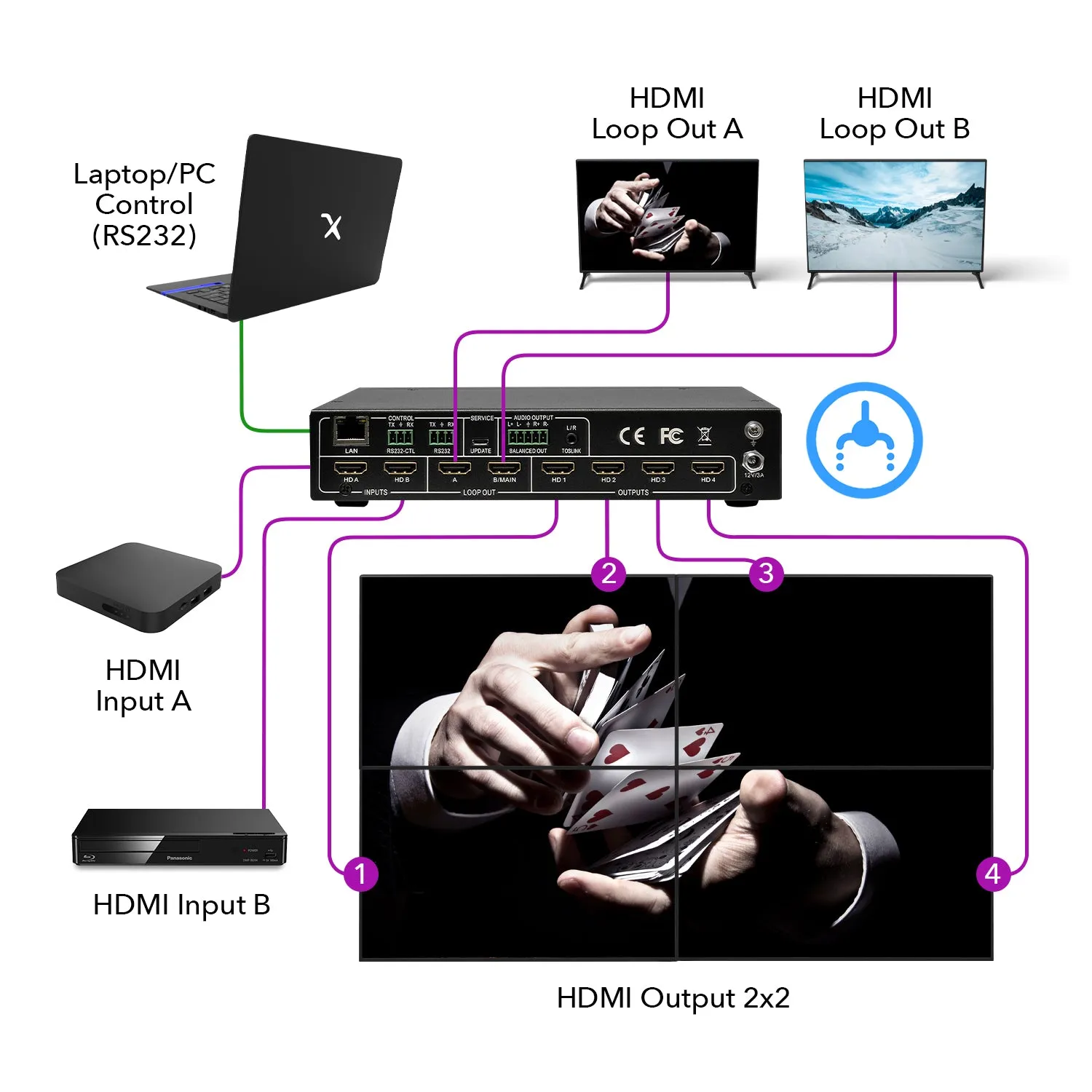

The UHD-204VW video wall controller is an awesome solution featuring 2 inputs, 4 outputs, and 2 loop outputs, catering to your media devices. It adheres to HDMI 2.0 and HDCP 2.2 standards, accommodating resolutions of up to 4K@60Hz. Offering diverse video wall modes, including the versatile 2x2 mode, it allows for seamless bezel adjustment and provides a unique 180-degree rotation feature for the top two displays in 2x2 video wall mode. For audio extraction, it's equipped with a Mini Optical jack and a 5-pin L/R balanced output. Control options are extensive, with support for both RS-232 and TCP/IP connections, ensuring convenient management of your video wall setup.
[shortdes]
- Features 180 degree rotation for top two displays
- 2x2 Video Wall
- 2 HDMI Loop outputs
[/shortdes]
[tab]

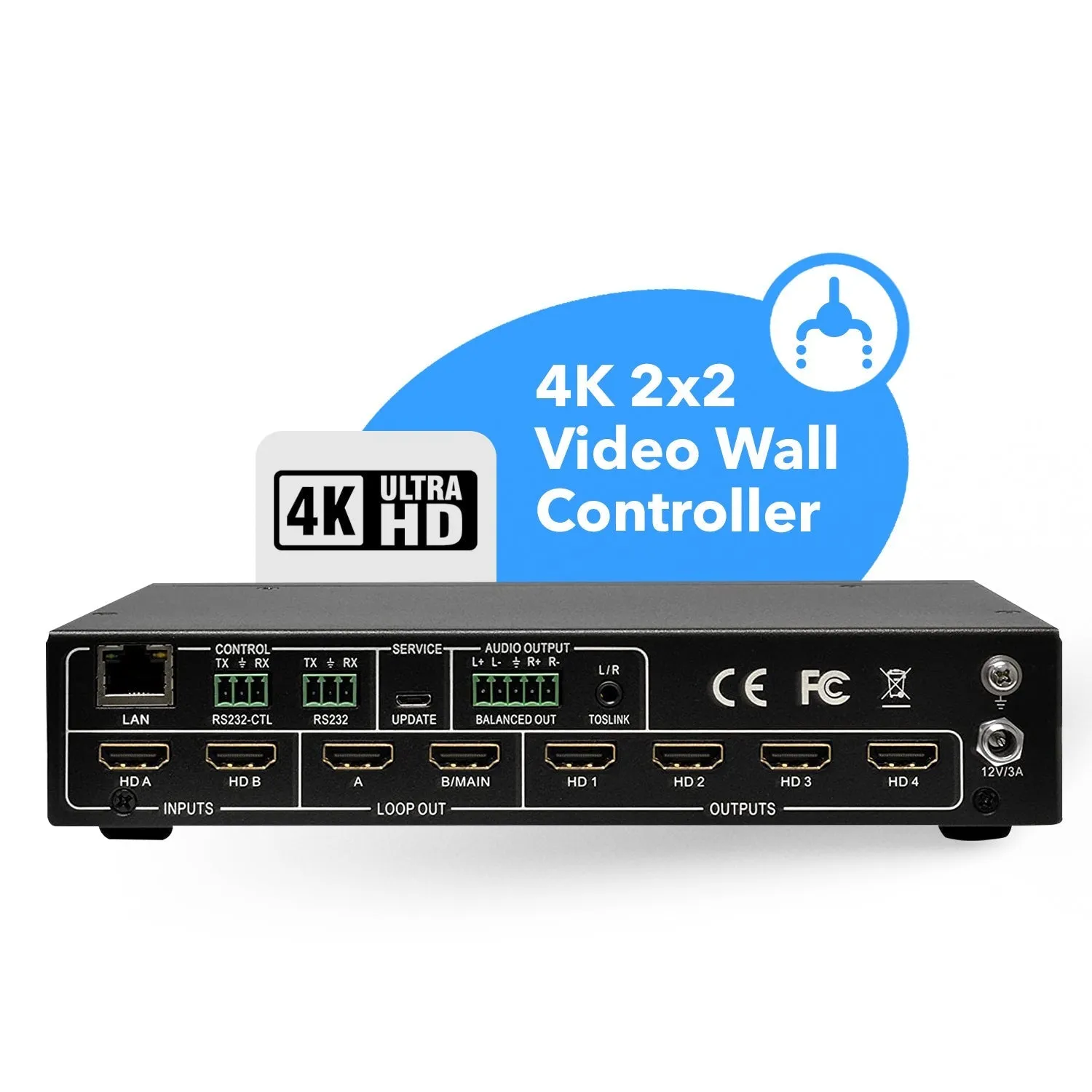

CONNECTIVITY
| INPUT: |
2 × HDMI [Type A, 19-pin female] |
|
| OUTPUT: |
6 × HDMI [Type A, 19-pin female] |
|
|
1 × Mini Toslink [Optical Audio Jack] |
|
|
1 × L/R BALANCED OUT [5-pin ] |
|
| CONTROL: |
1 × RS-232 [3pin phoenix connector] |
|
|
1 × RS232-CTL [3pin phoenix connector] |
|
|
1x LAN [RJ45, 8 Pin female] |
|
|
1x SERVICE [Micro USB, Update port] |
|
PACKAGE CONTENTS
| 1x UHD-204VW |
| 2x RS-232 3-pin Phoenix connector |
| 1x RS-232 5-pin Phoenix connector |
| 1x Power Adapter |
| User Manual |
SUPPORTED HDMI CABLES
| HDMI 2.0/ 2.1 |
We recommend using high-quality HDMI 2.0/2.1 cables under 30 feet for optimum performance |
EXTENDING DISTANCE
VIDEO OUTPUT
| Video Bandwidth: |
18 Gbps |
| Video Resolutions: |
Up to 4K@60Hz |
ADDITIONAL FEATURES
| CEC: |
Yes |
| ARC: |
No |
| USB KVM: |
No |
| PoC/PoE: |
No |
| IR Control: |
Yes |
| Downmix: |
No |
| Downscale: |
No |
| Over IP: |
No |
| HDBaseT: |
No |
| RS-232: |
Yes |
LOOP-OUT / LOCAL PORTS
| Has loop out port: |
Yes |
| Number of Loop out ports: |
2 |
AUDIO SUPPORT
| HDMI Audio Formats: |
|
| 3.5mm Analog Audio Formats: |
|
COMPLIANCES
| HDMI Compliance |
HDMI 2.0 |
| HDCP Compliance |
HDCP 2.2 |
POWER
| Power Consumption: |
25W (Max) |
|
| Power Supply: |
Input: AC 100-240V 50/60Hz |
|
|
Output: DC 12V/3A |
|

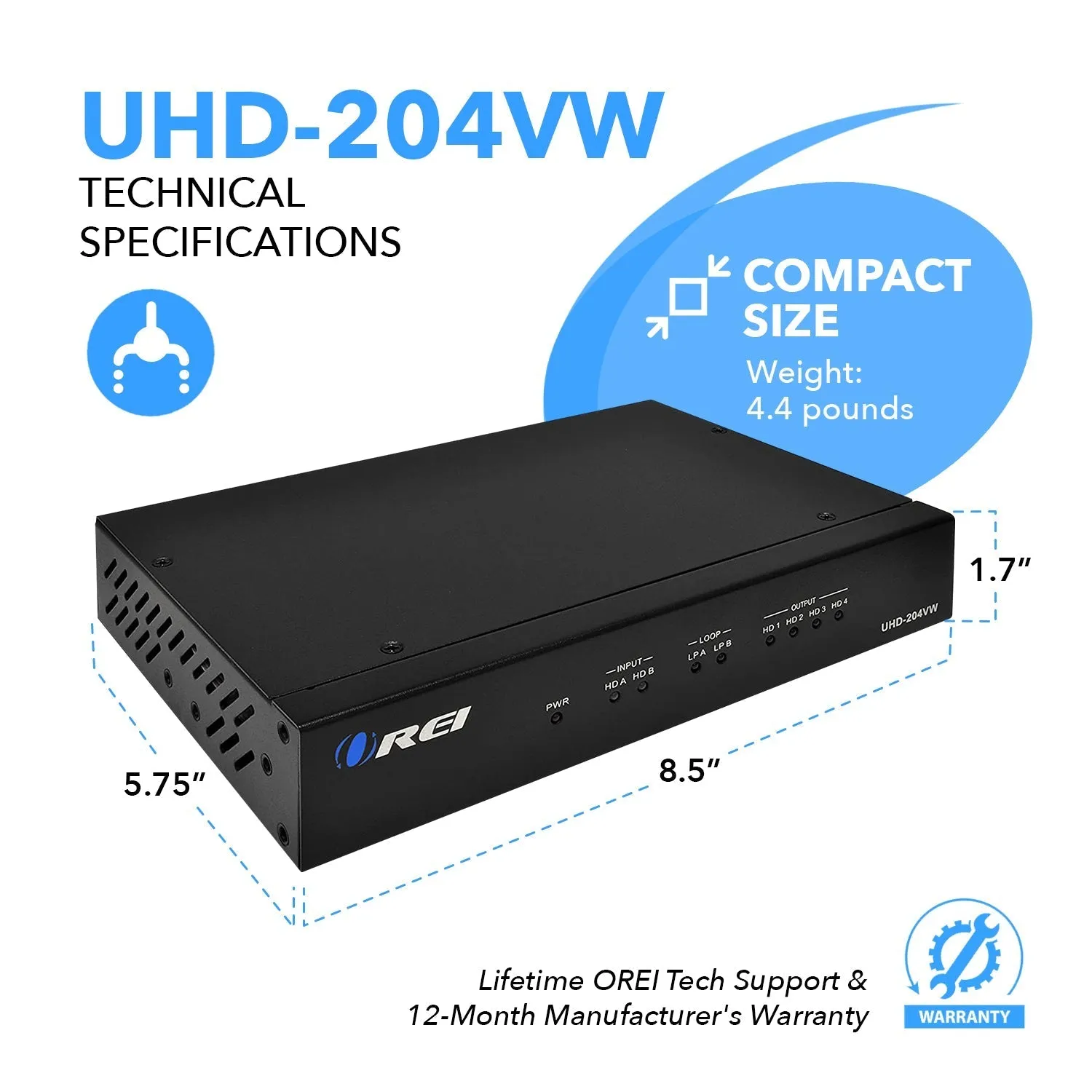

DIMENSIONS & WEIGHT
| Length:
|
218mm / 8.66in |
|
| Width: |
146mm / 3.94in |
|
| Height:
|
43mm / 1.18in |
|
| Weight:
|
2kg / 4.41lbs |
|
PROPERTIES
| Color: |
Black |
| Housing: |
Metal Enclosure |
WARRANTY
| 1-Year Manufacturer's Warranty |
